Technical Details
| Case/Package | Radial |
| China RoHS | Compliant |
| Color | Red |
| Depth | 4mm |
| Dominant Wavelength | 623nm |
| Forward Current | 30mA |
| Forward Voltage | 2.6V |
| Height | 5.25mm |
| Illumination Color | Red |
| Length | 4mm |
| Lens Color | Red |
| Lens Style | Circular, Colored, Diffused, Dome |
| Lens Transparency | Clear |
| Lifecycle Status | Obsolete |
| Luminous Intensity | 29mcd |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Packaging | Bulk |
| Peak Wavelength | 635nm |
| Power Dissipation | 100mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Voltage | 5V |
| RoHS | Compliant |
| Shape | Round |
| Terminal Pitch | 2.54mm |
| Test Current | 10mA |
| Viewing Angle | 20° |
| Wavelength | 623nm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

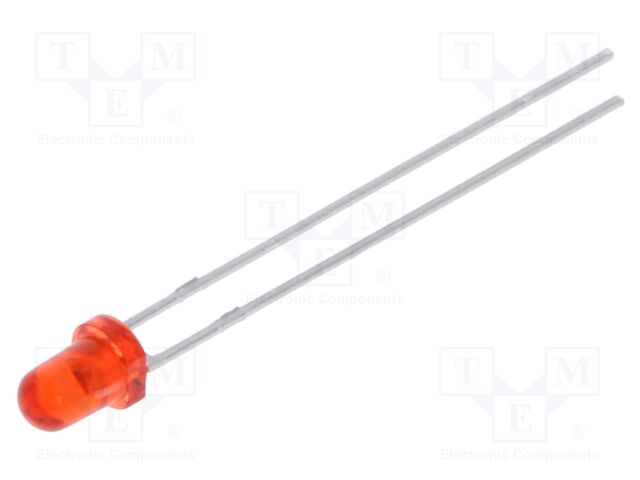

Images
TME
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Stanley Electric | Obsolete | ||
| Stanley Electric | Obsolete | ||
| Lite-On | Production | ||
| Toshiba | Obsolete | ||
| Bivar | Obsolete | ||
| Stanley Electric | Obsolete | ||
| Lumex | Production | ||
| Stanley Electric | Obsolete | ||
| Toshiba | Obsolete | ||
| Toshiba | Obsolete |
