LTR-3208E - Lite-On
LTR Series 940 nm 20° 3.12 mA T-13/4 5 mm Sensitivity Phototransistor
Technical Details
| Case/Package | Radial |
| China RoHS | Compliant |
| Collector Emitter Breakdown Voltage | 30V |
| Collector Emitter Voltage (VCEO) | 30V |
| Dark Current | 100nA |
| Fall Time | 15µs |
| Lead Free | Lead Free |
| Lens Style | Domed |
| Lifecycle Status | Production |
| Max Collector Current | 3.12mA |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 100mW |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Orientation | Top View |
| Output Power | 100mW |
| Packaging | Bulk |
| Peak Wavelength | 940nm |
| Polarity | NPN |
| Power Dissipation | 100mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Rise Time | 10µs |
| RoHS | Compliant |
| Shape | Round |
| Viewing Angle | 20° |
| Wavelength | 940nm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

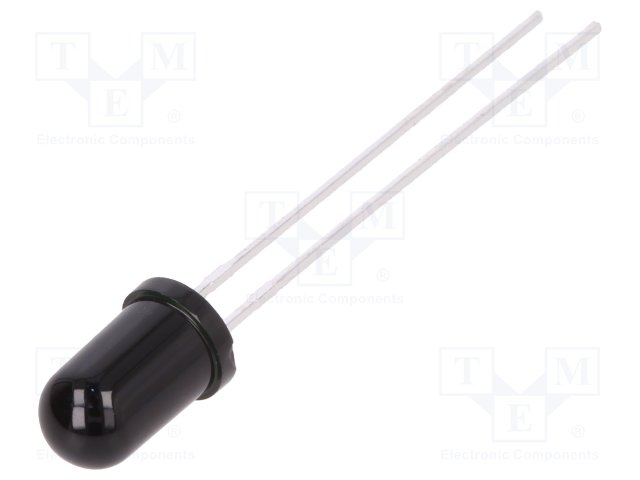

Images
TME
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Excelitas Technology | Obsolete | ||
| Excelitas Technology | Obsolete | ||
| Excelitas Technology | Obsolete | ||
| Optek | Obsolete | ||
| BI Technologies | Production | ||
| BI Technologies | Production | ||
| BI Technologies | Production | ||
| Lite-On | Production | ||
| Lite-On | Production | ||
| Excelitas Technology | Production |
