LTST-C190KRKT - Lite-On
LED red 0603 wavelength 631nm light intensity 18~180mcd Front Mounting
Technical Details
| Capacitance | 100µF |
| Case/Package | 0603 |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| China RoHS | Compliant |
| Color | Red |
| Country of Origin | Mainland China |
| Depth | 800µm |
| Diameter | 8mm |
| Dominant Wavelength | 631nm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Forward Current | 25mA |
| Forward Voltage | 2.4V |
| Height | 800µm |
| Harmonized Tariff Schedule (HTS) Code | 8541.40.20.00 |
| Illumination Color | Red |
| Introduction Date | 2000-01-01 |
| Lead Free | Lead Free |
| Lead Pitch | 3.5mm |
| Length | 11.5mm |
| Lens Color | Clear, Colorless |
| Lens Style | Clear |
| Lens Transparency | Clear |
| Lifecycle Status | Production |
| Luminous Intensity | 18mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Packaging | Bulk |
| Peak Wavelength | 639nm |
| Power Dissipation | 62.5mW |
| Power Rating | 75mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Voltage | 5V |
| RoHS | Compliant |
| Schedule B | 8541402000, 8541402000|8541402000, 8541402000|8541402000|8541402000, 8541402000|8541402000|8541402000|8541402000 |
| Shape | Rectangular |
| Test Current | 20mA |
| Tolerance | 20% |
| Viewing Angle | 260° |
| Voltage Rating | 50V |
| Voltage Rating (DC) | 50V |
| Wavelength | 631nm |
| Width | 800µm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

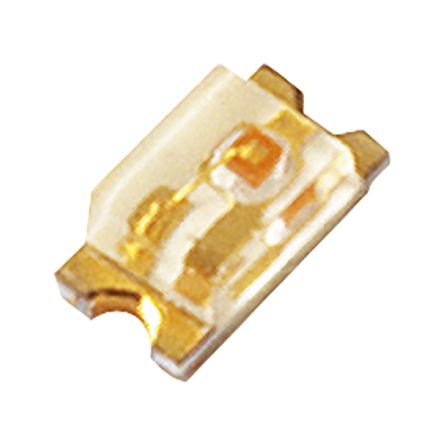

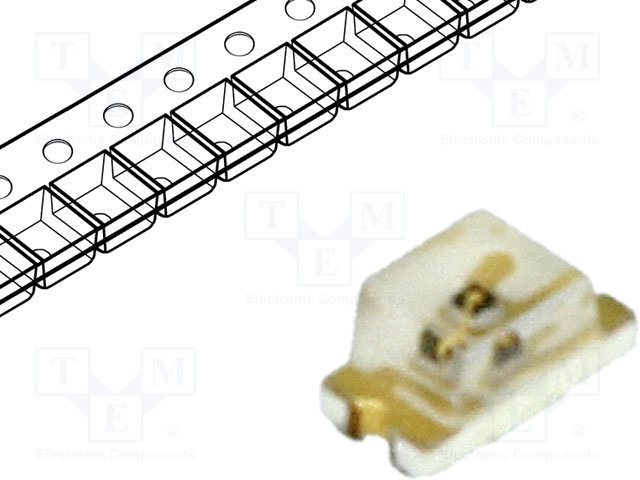

Images
