Technical Details
| Case/Package | 0603 |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| China RoHS | Compliant |
| Color | Green |
| Dominant Wavelength | 525nm |
| Forward Current | 20mA |
| Forward Voltage | 3.2V |
| Height | 300µm |
| Harmonized Tariff Schedule (HTS) Code | 8541.40.20.00 |
| Illumination Color | Green |
| Introduction Date | 2010-08-18 |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Lens Color | Colorless |
| Lens Style | Colorless, Diffused, Rectangular |
| Lens Transparency | Clear |
| Lifecycle Status | Production |
| Luminous Intensity | 260.5mcd |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of LEDs | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Peak Wavelength | 530nm |
| Power Dissipation | 76mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Voltage | 5V |
| RoHS | Compliant |
| Shape | Rectangular |
| Terminal Pitch | 1.5mm |
| Test Current | 20mA |
| Viewing Angle | 130° |
| Wavelength | 525nm |
| Width | 800µm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

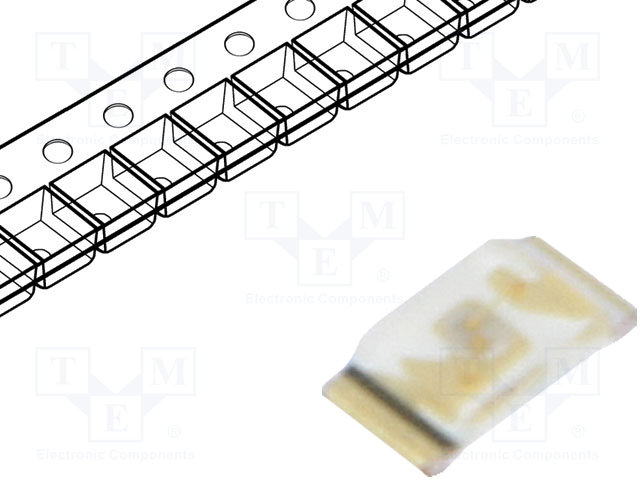

Images
