Technical Details
| Case/Package | 1206 |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| China RoHS | Compliant |
| Color | Orange |
| Depth | 1.6mm |
| Dominant Wavelength | 602nm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Forward Current | 30mA |
| Forward Voltage | 2.6V |
| Height | 1.1mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.40.20.00 |
| Illumination Color | Orange |
| Introduction Date | 1997-12-01 |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Lens Color | Clear, Colorless |
| Lens Style | Clear |
| Lens Transparency | Clear |
| Lifecycle Status | Production |
| Luminous Intensity | 4.5mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Number of Terminals | 2 |
| Peak Wavelength | 610nm |
| Power Dissipation | 100mW |
| Power Rating | 100mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Voltage | 5V |
| RoHS | Compliant |
| Shape | Rectangular |
| Terminal Pitch | 3.6mm |
| Test Current | 20mA |
| Viewing Angle | 130° |
| Wavelength | 610nm |
| Width | 1.6mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

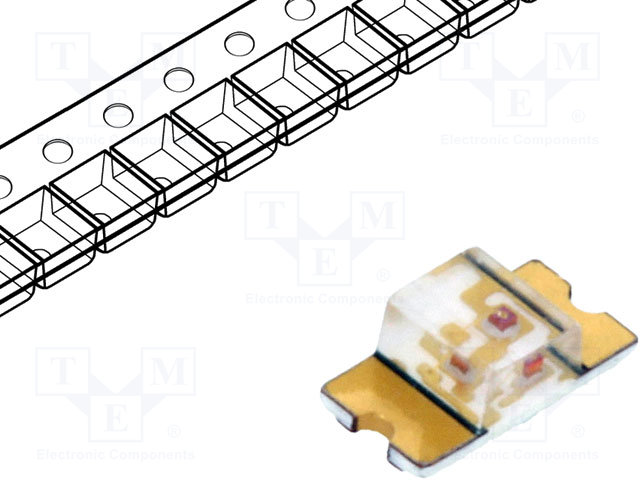

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Stanley Electric | Obsolete | ||
| Stanley Electric | Production | ||
| Vishay | Production | ||
| Panasonic | Obsolete | ||
| Dialight | Obsolete | ||
| Dialight | Obsolete | ||
| Vishay | Obsolete | ||
| Panasonic | Obsolete | ||
| Vishay | Obsolete | ||
| Vishay | Production |
