Technical Details
| Case/Package | SMD/SMT |
| Color | Orange |
| Depth | 2mm |
| Dominant Wavelength | 606nm |
| Forward Current | 30mA |
| Forward Voltage | 2.4V |
| Height | 1.3mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.40.20.00 |
| Introduction Date | 2011-09-30 |
| Length | 3mm |
| Lens Color | Colorless |
| Lens Style | Colorless, Diffused, Rectangular |
| Lens Transparency | Clear |
| Lifecycle Status | Production |
| Luminous Intensity | 140mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Packaging | Tape & Reel |
| Peak Wavelength | 611nm |
| Power Dissipation | 72mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Voltage | 5V |
| RoHS | Compliant |
| Shape | Rectangular |
| Terminal Pitch | 2.85mm |
| Test Current | 20mA |
| Viewing Angle | 120° |
| Width | 2mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

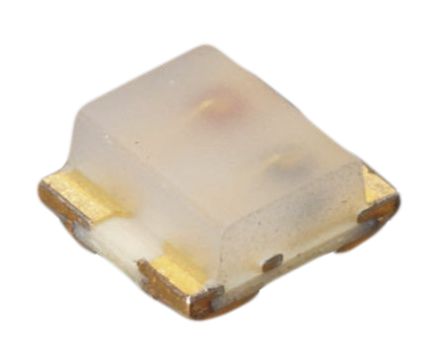

Images
