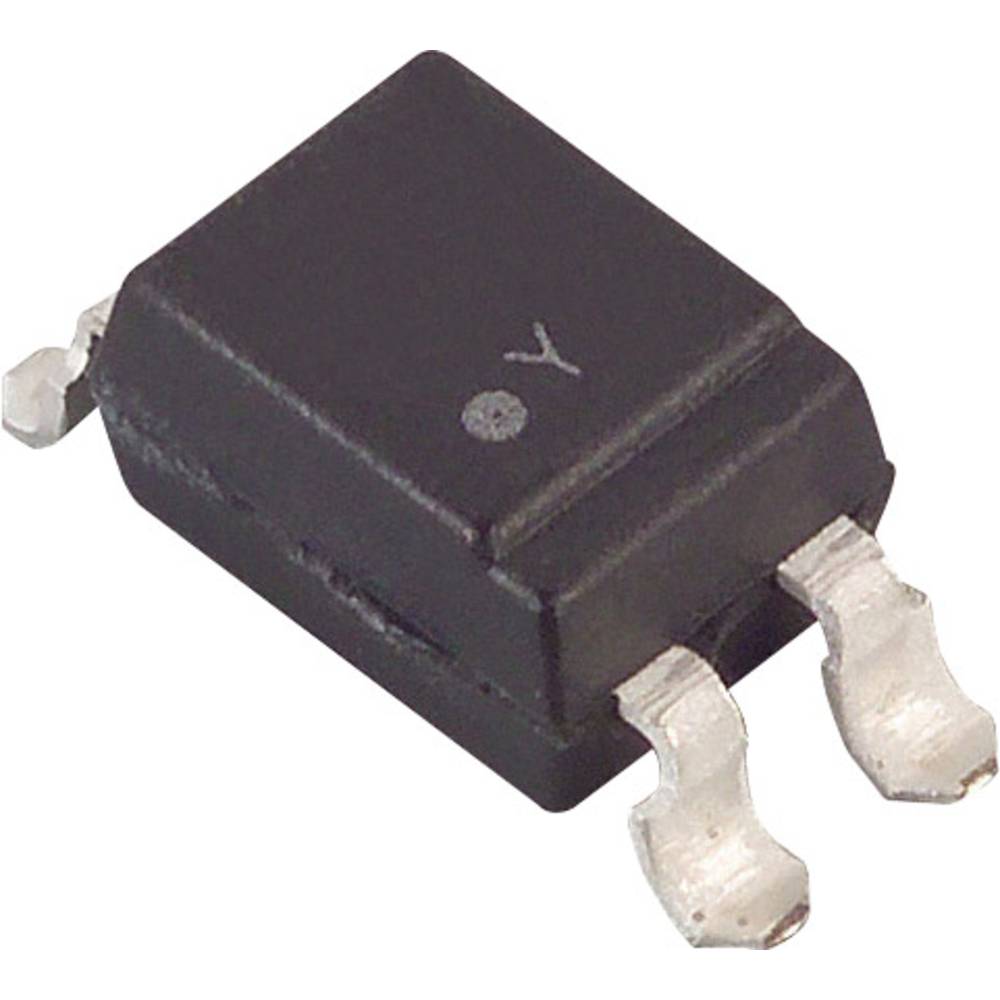

Lite-On - LTV-816S

LTV-816S - Lite-On

LTV Series Single Channel 80 V 5000 Vrms Transistor Output Optocoupler SMT-DIP-4

 Datasheets

Technical Details

Case/Package SMD/SMT
China RoHS Compliant
Collector Emitter Breakdown Voltage 80V
Collector Emitter Saturation Voltage 200mV
Collector Emitter Voltage (VCEO) 80V
Current Transfer Ratio 50%
Dark Current 100nA
Fall Time 18µs
Forward Current 50mA
Forward Voltage 1.4V
Height 4.6mm
Isolation Voltage 5000Vrms
Lead Free Lead Free
Lifecycle Status Production
Max Collector Current 50mA
Max Input Current 50mA
Max Junction Temperature (Tj) 125°C
Max Operating Temperature 110°C
Max Output Voltage 80V
Max Power Dissipation 150mW
Min Operating Temperature -50°C
Mount Surface Mount
Number of Channels 1
Number of Circuits 1
Number of Elements 1
Number of Pins 4
Output Current per Channel 50mA
Output Voltage 80V
Power Dissipation 200mW
Radiation Hardening No
REACH SVHC Yes
Reverse Breakdown Voltage 6V
Reverse Voltage 6V
Rise Time 18µs
RoHS Compliant
Schedule B 8541408000, 8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|85

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : Yes

Images

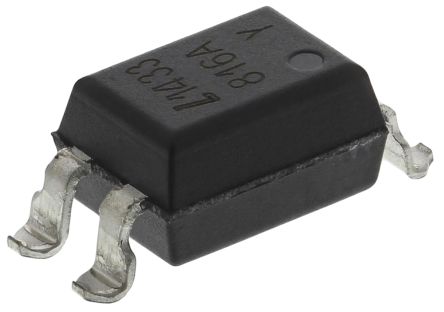

Lite-On LTV-816S | RS
