Lite-On - LTV-816S-TA1

LTV-816S-TA1 - Lite-On

LTV Series Single Channel 80 V 5000 Vrms Transistor Output Optocoupler SMT-DIP-4

 Datasheets

Technical Details

Case/Package SMD/SMT
China RoHS Compliant
Collector Emitter Breakdown Voltage 80V
Collector Emitter Saturation Voltage 200mV
Collector Emitter Voltage (VCEO) 80V
Current Transfer Ratio 50%
Dark Current 100nA
Fall Time 18µs
Forward Current 50mA
Forward Voltage 1.4V
Height 4.6mm
Harmonized Tariff Schedule (HTS) Code 8541.40.80.00
Introduction Date 1997-12-01
Isolation Voltage 5000Vrms
Lead Free Lead Free
Lifecycle Status Production
Max Collector Current 50mA
Max Input Current 50mA
Max Junction Temperature (Tj) 125°C
Max Operating Temperature 110°C
Max Output Voltage 80V
Max Power Dissipation 200mW
Min Operating Temperature -50°C
Mount Surface Mount
Number of Channels 1
Number of Circuits 1
Number of Elements 1
Number of Pins 4
Output Current per Channel 50mA
Output Voltage 80V
Packaging Tape & Reel (TR)
Power Dissipation 200mW
Radiation Hardening No
REACH SVHC Yes
Reverse Breakdown Voltage 6V
Reverse Voltage 6V
Rise Time 18µs
RoHS Compliant
Schedule B 8541408000, 8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|8541408000|85

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : Yes

Images

Lite-On LTV-816S-TA1 | TME

TME

Datasheets

 Avnet
 Arrow Electronics
 Arrow Electronics

Lifecycle Status Indicator

   Production

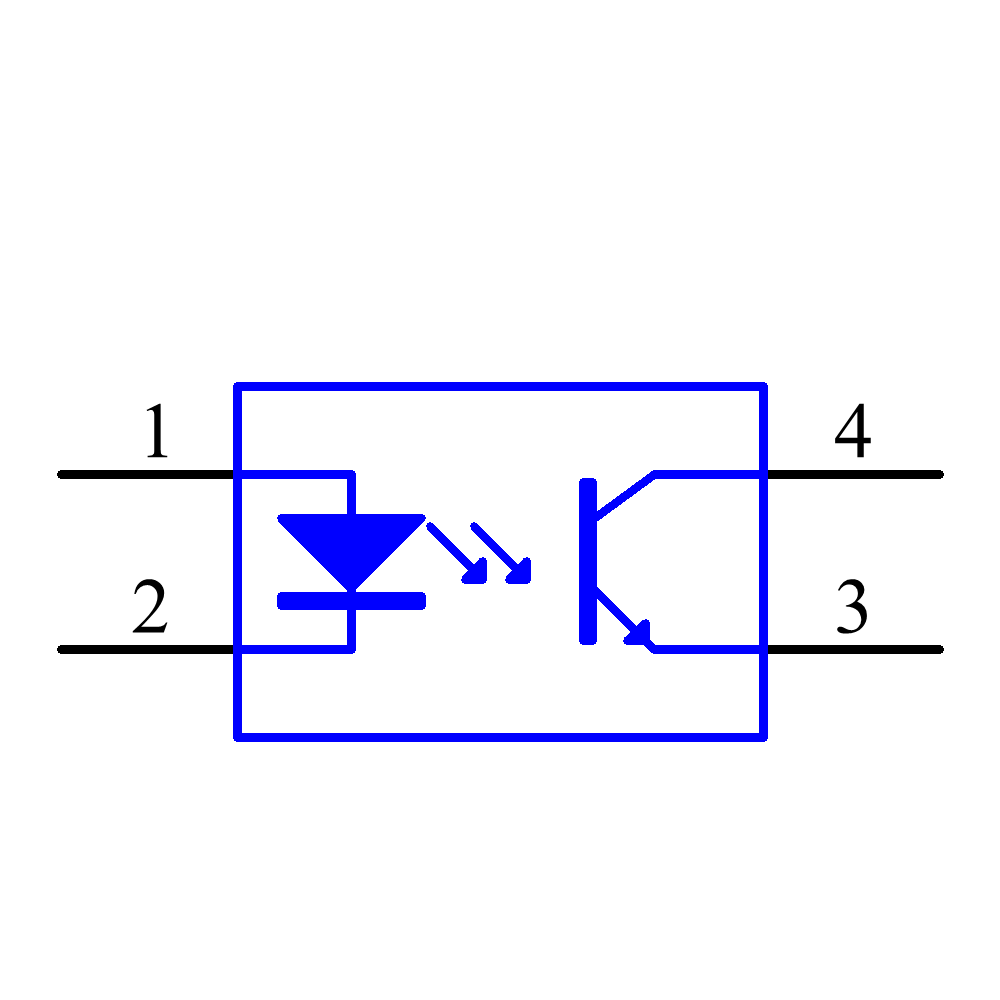

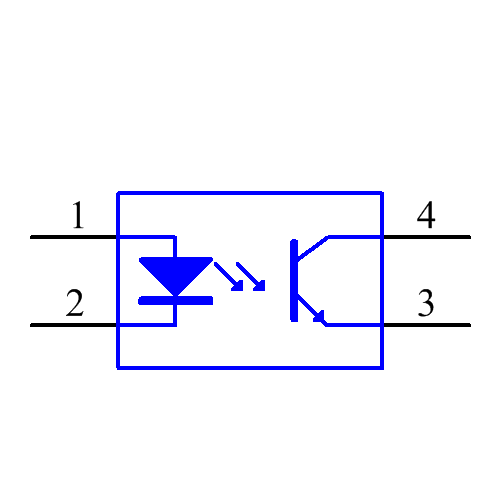

Symbol

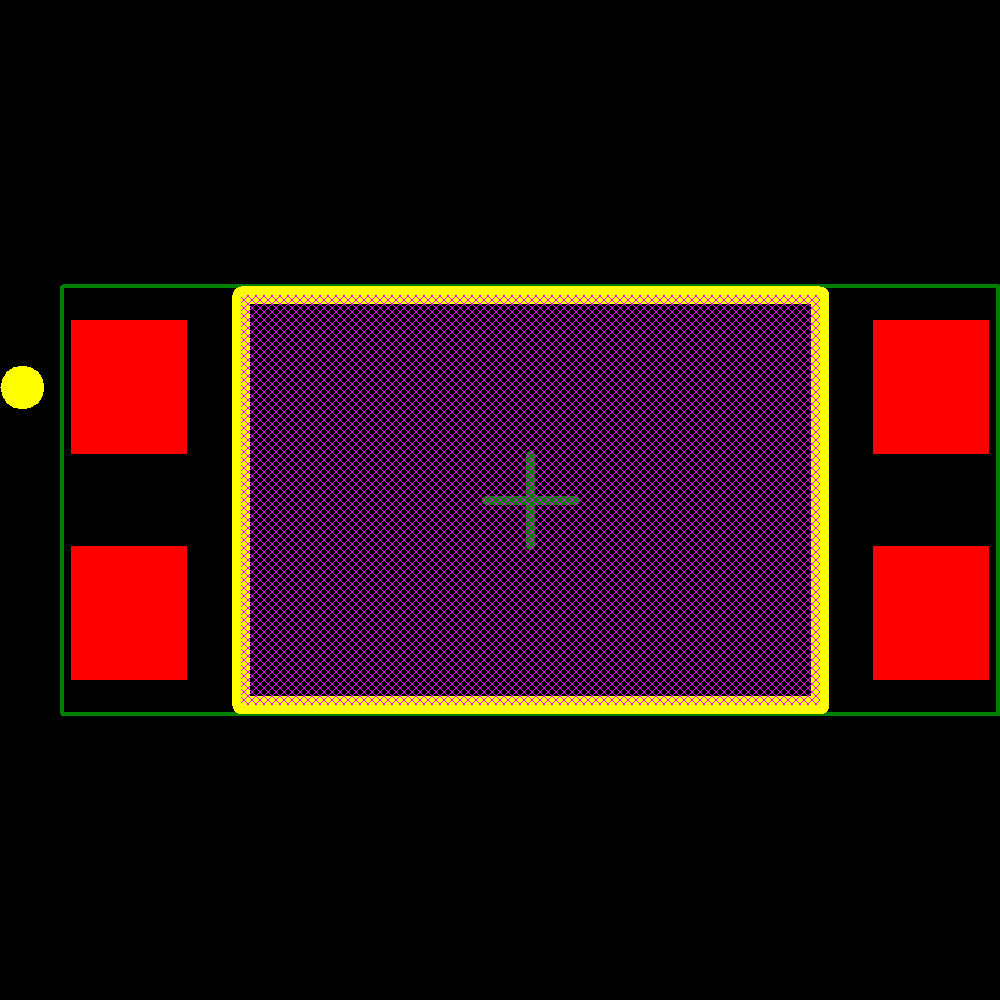

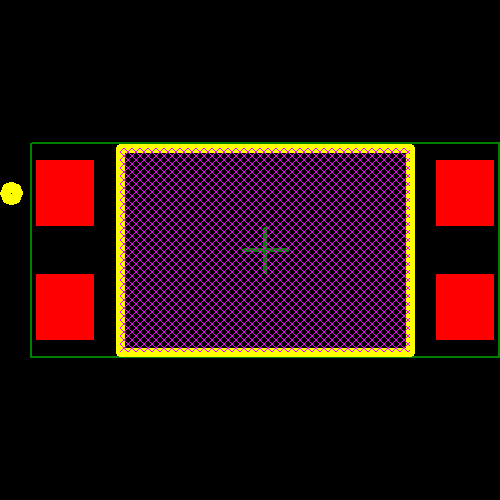

Footprint
