LTV-817 - Lite-On
LTV Series Single Channel 35 V 5000 Vrms Transistor Output Optocoupler - DIP-4
Technical Details
| Case/Package | PDIP |
| China RoHS | Compliant |
| Collector Emitter Breakdown Voltage | 35V |
| Collector Emitter Saturation Voltage | 200mV |
| Collector Emitter Voltage (VCEO) | 35V |
| Contact Plating | Tin |
| Current Transfer Ratio | 50% |
| Dark Current | 100nA |
| Fall Time | 18µs |
| Forward Current | 50mA |
| Forward Voltage | 1.4V |
| Height | 3.5mm |
| Isolation Voltage | 5000Vrms |
| Lead Free | Lead Free |
| Length | 4.6mm |
| Lifecycle Status | Production |
| Max Collector Current | 50mA |
| Max Input Current | 50mA |
| Max Operating Temperature | 110°C |
| Max Output Voltage | 35V |
| Max Power Dissipation | 200mW |
| Min Operating Temperature | -30°C |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Pins | 4 |
| Output Current per Channel | 50mA |
| Output Voltage | 35V |
| Power Dissipation | 200mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Breakdown Voltage | 6V |
| Rise Time | 18µs |
| RoHS | Compliant |
| Schedule B | 8541408000, 8541408000|8541408000|8541408000|8541408000|8541408000 |
| Voltage Rating (DC) | 35V |
| Width | 6.5mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
Images

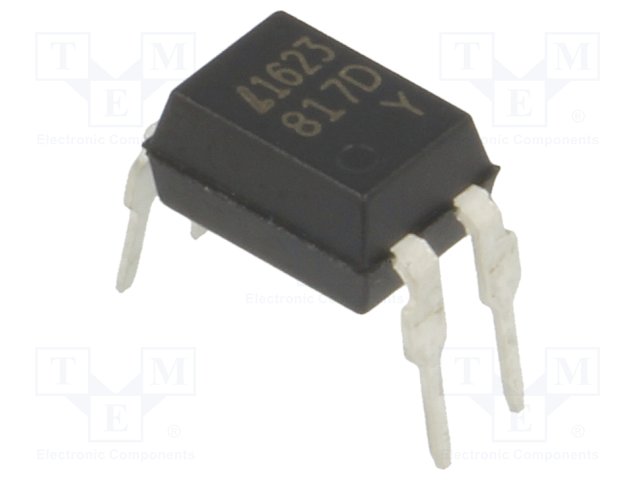

TME
