0603L004YR - Littelfuse

PTC Resettable Fuse 0.04A(hold) 0.12A(trip) 24VDC 20A 0.5W 1s 4Ohm SMD Solder Pad 0603 T/R

Technical Details

Ambient Temperature Range High	85°C
Approvals	TUV, cULus
Case/Package	0603
Case Code (Imperial)	0603
Case Code (Metric)	1608
Current Rating	20A
Export Control Classification Number (ECCN) Code	EAR99
Height	750µm
Hold Current	40mA
Harmonized Tariff Schedule (HTS) Code	8533.40.80.70
Introduction Date	2011-09-26
Length	1.8mm
Lifecycle Status	Production
Max Current Rating	20A
Max Operating Temperature	85°C
Maximum Resistance 1 Hour (R1max)	40Ω
Max Voltage Rating (DC)	24V
Min Operating Temperature	-40°C
Minimum Resistance Initial (Rmin)	4Ω
Mount	Surface Mount
Number of Terminals	2
Packaging	Tape & Reel (TR)
Power Dissipation	500mW
REACH SVHC	Yes
Resistance	4Ω
RoHS	Compliant
Time to Trip	1s
Trip Current	120mA
Voltage Rating	24V
Width	1mm
Working Voltage	24V

Compliance

RoHS : Unconfirmed

REACH SVHC : Yes

Images

Littelfuse 0603L004YR | Farnell

Farnell

Datasheets

Lifecycle Status Indicator

Production

Symbol

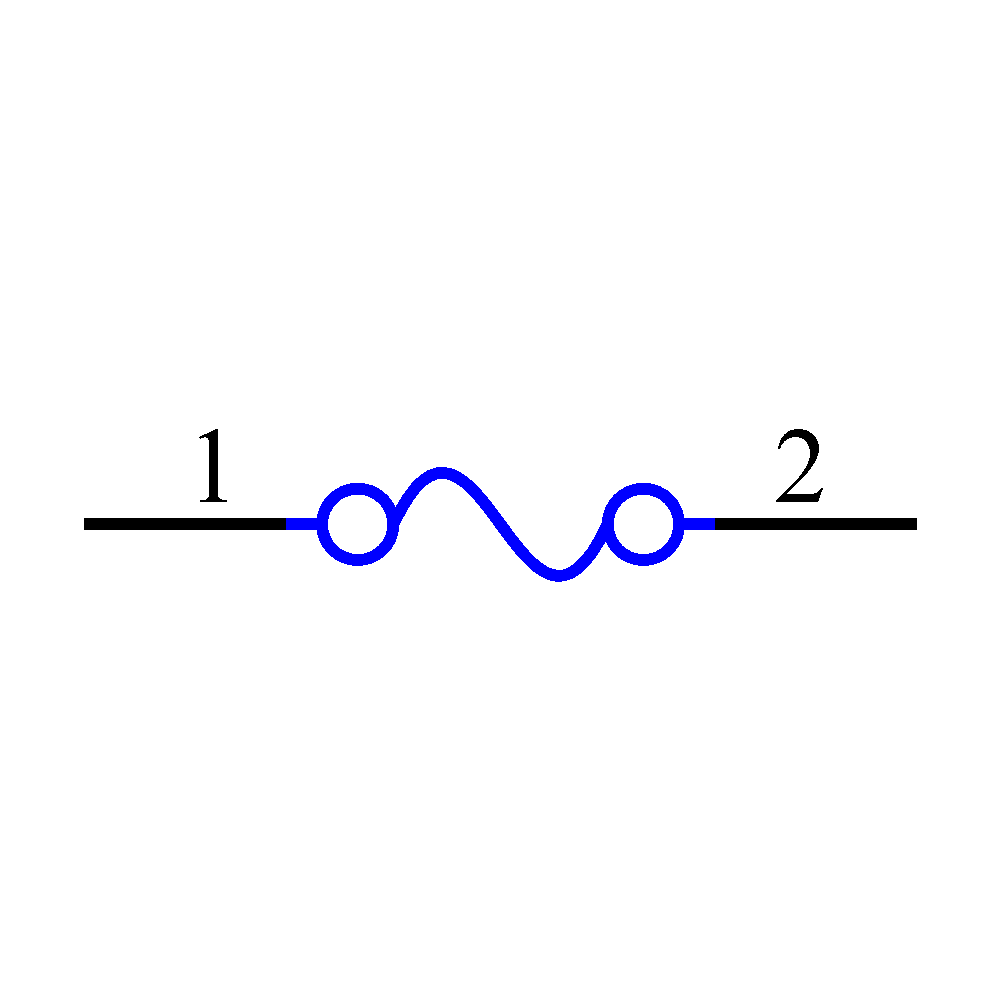

0603L004YR Symbol - Littelfuse

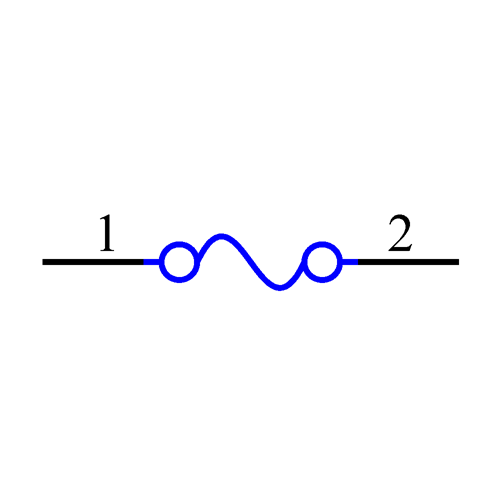

0603L004YR Symbol - Littelfuse

0603L004YR Symbol - Littelfuse

0603L004YR Symbol - Littelfuse

‹ ›

Footprint

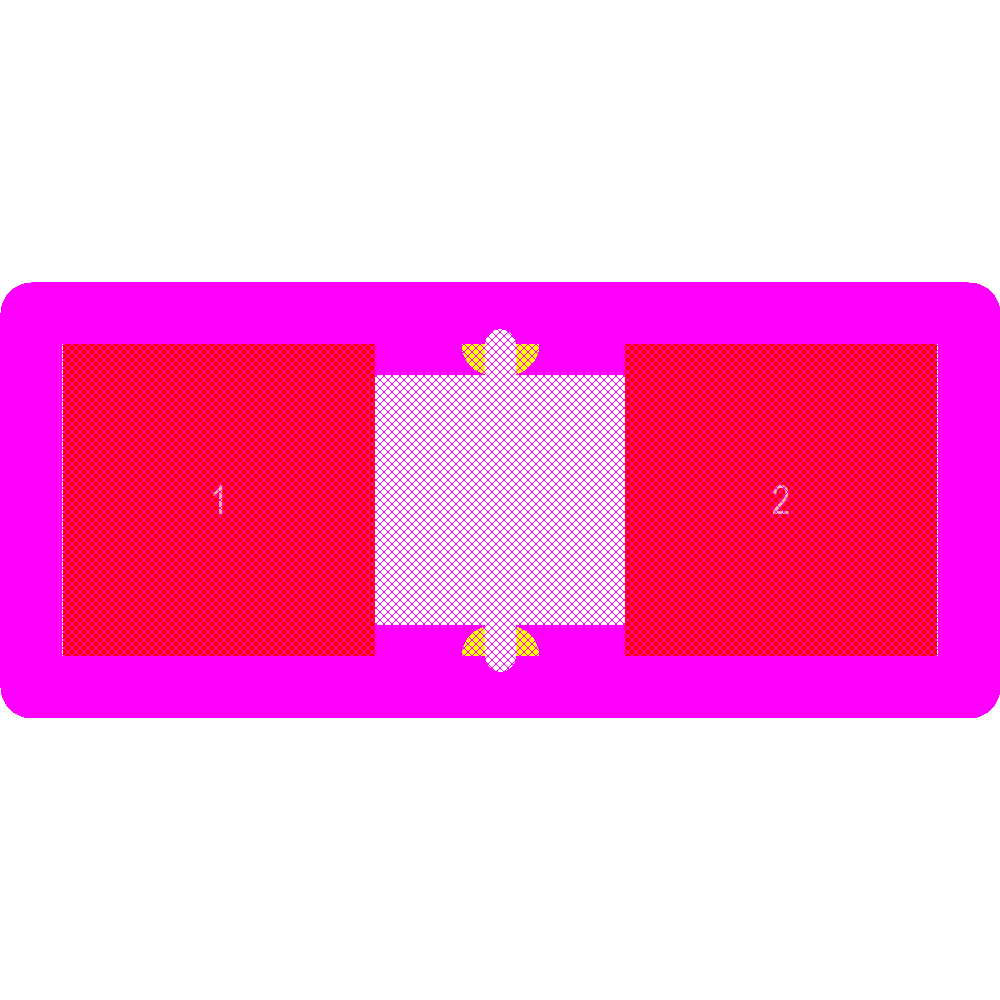

0603L004YR Footprint - Littelfuse

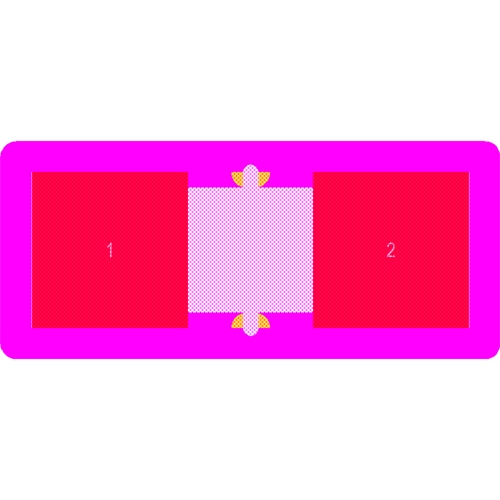

0603L004YR Footprint - Littelfuse

0603L004YR Footprint - Littelfuse

0603L004YR Footprint - Littelfuse

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
Littelfuse	0603L010YR	Production
Littelfuse	0603L020YR	Production
Littelfuse	0603L025YR	Production
TE Connectivity	FEMTOSMDC016F-2	Obsolete
