Circuit Protection > PTC Resettable Fuses

0805L050WR - Littelfuse

PTC Resettable Fuse 0.5A(hold) 1A(trip) 6VDC 100A 0.5W 0.1s 0.15Ohm SMD Solder Pad 0805 T/R

Technical Details

Ambient Temperature Range High	85°C
Approvals	TUV, cULus
Case/Package	0805
Case Code (Imperial)	0805
Case Code (Metric)	2012
Current Rating	100A
Export Control Classification Number (ECCN) Code	EAR99
Height	1.25mm
Hold Current	500mA
Harmonized Tariff Schedule (HTS) Code	8533.40.80.70
Introduction Date	2006-06-15
Lead Free	Lead Free
Length	2.2mm
Lifecycle Status	Production
Max Current Rating	100A
Max Operating Temperature	85°C
Max Power Dissipation	500mW
Maximum Resistance 1 Hour (R1max)	850mΩ
Max Voltage Rating (DC)	6V
Min Operating Temperature	-40°C
Minimum Resistance Initial (Rmin)	150mΩ
Mount	Surface Mount
Number of Terminals	2
Operating Supply Voltage	6V
Packaging	Cut Tape
Power Dissipation	500mW
REACH SVHC	Yes
Resistance	150mΩ
RoHS	Compliant
Termination	SMD/SMT
Time to Trip	100ms
Trip Current	1A
Voltage Rating	6V
Voltage Rating (DC)	6V
Width	1.5mm
Working Voltage	6V

Compliance

RoHS : Unconfirmed

REACH SVHC : Yes

Images

Littelfuse 0805L050WR | Farnell

Farnell

Datasheets

Lifecycle Status Indicator

Production

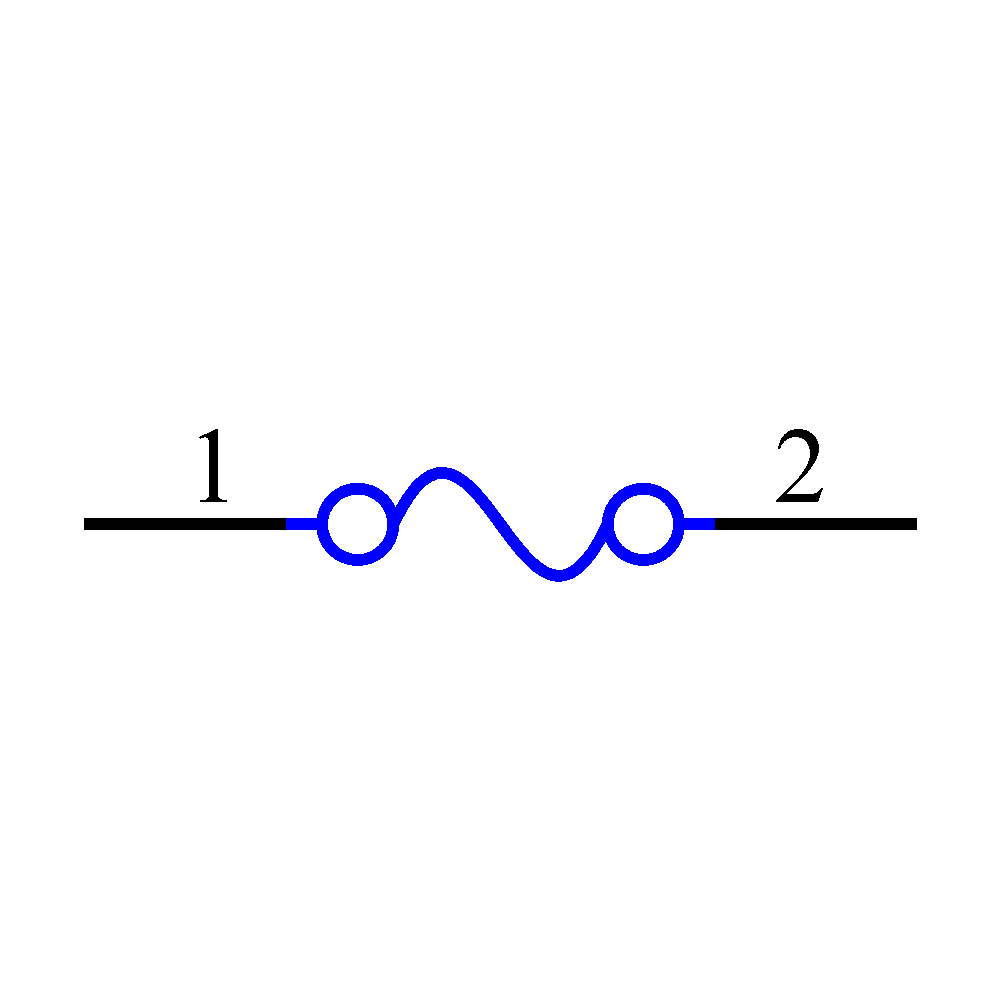

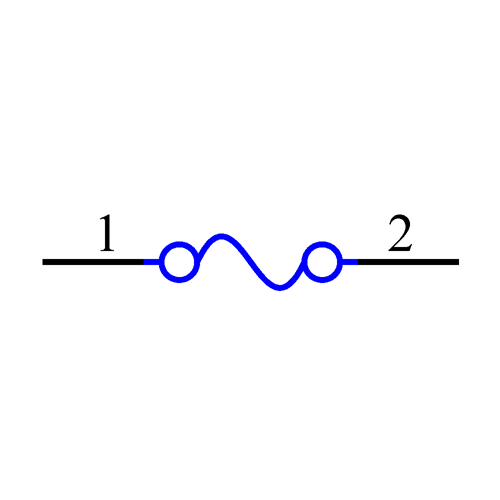

Symbol

0805L050WR Symbol - Littelfuse

0805L050WR Symbol - Littelfuse

0805L050WR Symbol - Littelfuse

0805L050WR Symbol - Littelfuse

‹ ›

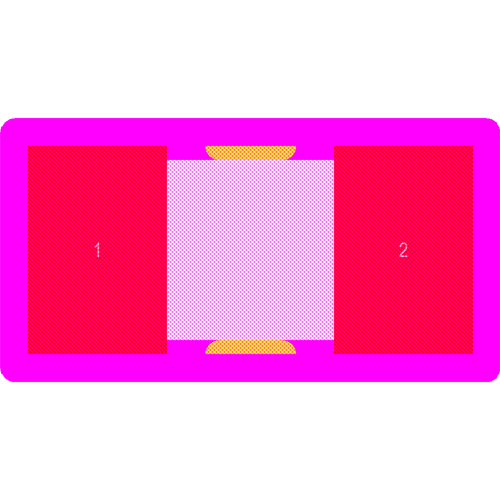

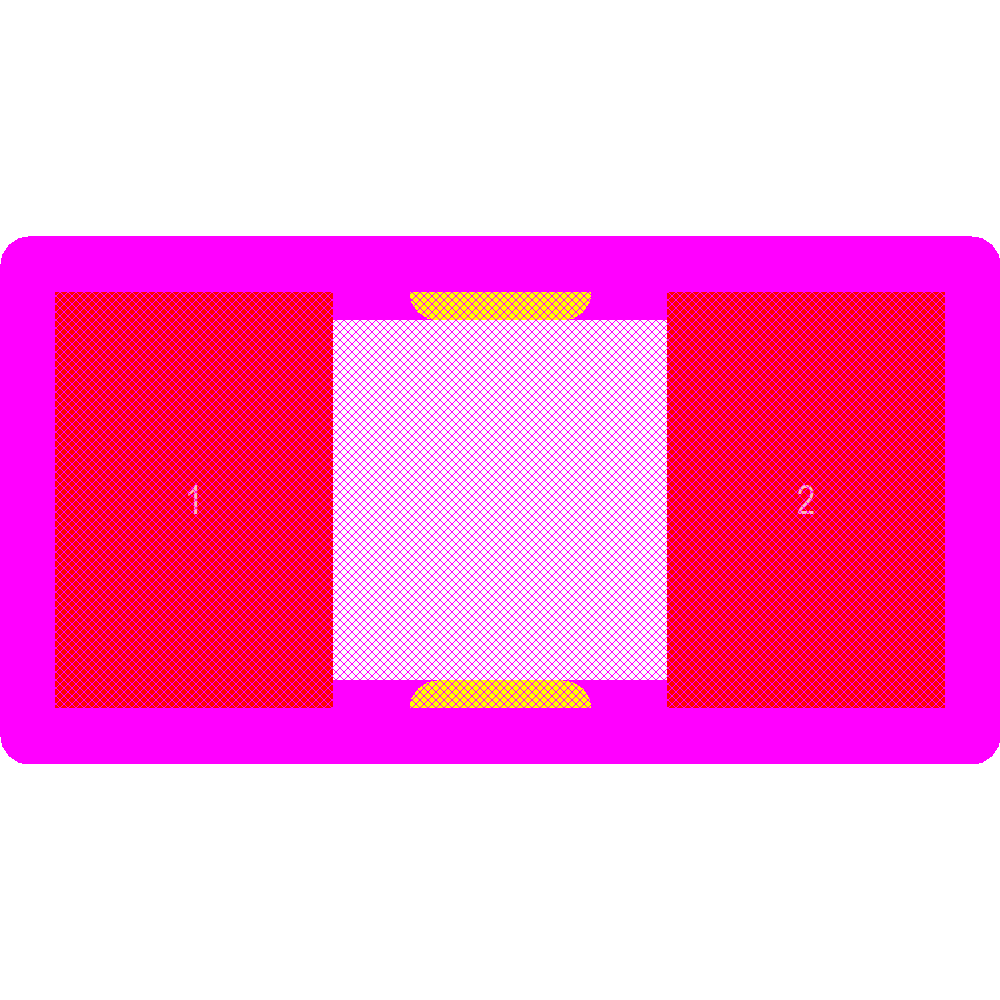

Footprint
