Circuit Protection > PTC Resettable Fuses

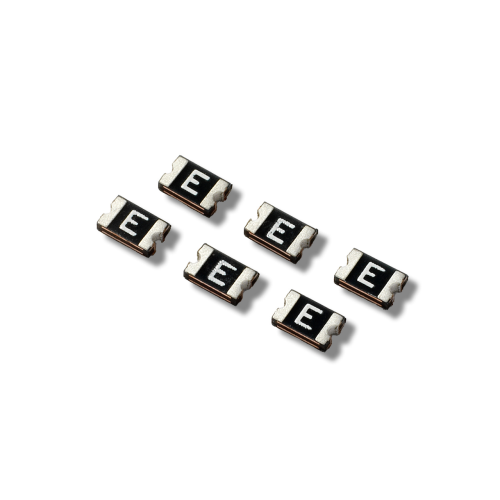

0805L110WR - Littelfuse

PTC Resettable Fuse 1.1A(hold) 2A(trip) 6VDC 100A 0.8W 0.1s 0.05Ohm SMD Solder Pad 0805 T/R

Technical Details

Case/Package	0805
Case Code (Imperial)	0805
Case Code (Metric)	2012
China RoHS	Compliant
Height	1.4mm
Hold Current	1.1A
Length	2.2mm
Lifecycle Status	Production
Max Current Rating	100A
Max Operating Temperature	85°C
Maximum Resistance 1 Hour (R1max)	160mΩ
Min Operating Temperature	-40°C
Minimum Resistance Initial (Rmin)	50mΩ
Mount	Surface Mount
Number of Terminals	2
Packaging	Tape & Reel (TR)
Power Dissipation	800mW
REACH SVHC	Yes
Resistance	50mΩ
RoHS	Compliant
Time to Trip	100ms
Trip Current	2A
Width	1.5mm
Working Voltage	6V

Compliance

RoHS : Unconfirmed

REACH SVHC : Yes

Images

Datasheets

Arrow Electronics

Arrow Electronics

Lifecycle Status Indicator

Production

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
Littelfuse	SMD0805P050TSA	Obsolete
Littelfuse	0805L050WR	Production

Authorized Distributors

Distributor

SKU

Stock

USD

1

10

50

100

1000

10000

Buy

Arrow Electronics

US: 33029

$

0.9531

0.9531

0.9531

0.9531

0.9531

0.9531

Arrow Electronics

US: 1990

$

0.776

0.776

0.776

0.776

0.776

0.776

Verical

US: 33029

$

0.9531

0.9531

0.9531

0.9531

0.9531

DigiKey

DE: 1176

$

1.0602

1.0602

0.6684

0.6167

0.4713

0.4713

DigiKey

DE: 1176

$

1.0602

1.0602

0.6684

0.6167

0.4713

0.4713

DigiKey

DE: 1000

$

0.3637

TTI

US: 0

$

1.03

Chip One Stop Global

JP: 33029

$

2.06

362.00

290.00

279.00

241.00

225.00

Sager Electronics

US: 0

$

Future Electronics

CA: 0

$

1.05

TTI Asia

SG: -3

$

1.13

Anglia

GB: 0

$

1.4425

Mouser

US: 2118

$

1.22

1.22

1.22

1.22

1.22

1.22

Newark

US: 0

$

1.37

Non-Authorized Distributors

Distributor

SKU

Stock

USD

1

10

50

100

1000

10000

Buy

Win Source

414663-0805L110WR

CN: 17160

$

0.0948

0.0738

Worldway Electronics

HK: 241886

$

0.1718

0.1718

0.1665

0.1578

0.1578

LCSC

CN: 1335

$

0.1292

0.1033

0.1033

0.0806

0.0689

RC Electronics

CN: 20023

$

1.04

0.96

0.96

0.87

0.82

0.80

Fly-Wing Technology

HK: 3394

$

0.7568

0.7304

0.7304

0.6829

0.4711

0.4711

Bettlink

HK: 1706

$

0.5281

0.3912

0.3912

0.3402

0.3179

0.2857

Ansinor

CN: 1703

$

0.851

0.6481

0.6481

0.4991

0.3825

0.3008

Classic Components

US: 1001

$

Chipsmall Limited

CN: 5000

$
