1.5KE22A-B - Littelfuse
1.5KE Series - 1500W Axial Leaded Transient Voltage Suppression (TVS) Diode, DO-201, RoHS
Technical Details
| Breakdown Voltage | 22V |
| China RoHS | Non-Compliant |
| Clamping Voltage | 30.6V |
| Composition | Zener |
| Diameter | 5.3mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 1997-06-01 |
| Lead Free | Lead Free |
| Leakage Current | 1µA |
| Length | 9.5mm |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 23.1V |
| Max Operating Temperature | 175°C |
| Max Power Dissipation | 6.5W |
| Max Reverse Leakage Current | 1µA |
| Max Surge Current | 49.7A |
| Min Breakdown Voltage | 20.9V |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 18.8V |
| Packaging | Bulk |
| Peak Pulse Current | 49.7A |
| Peak Pulse Power | 1.5kW |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Power Rating | 1.5kW |
| REACH SVHC | No |
| Reverse Breakdown Voltage | 20.9V |
| Reverse Standoff Voltage | 18.8V |
| Reverse Voltage | 18.8V |
| RoHS | Compliant |
| Termination | Axial |
| Test Current | 1mA |
| Voltage Rating (DC) | 22V |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

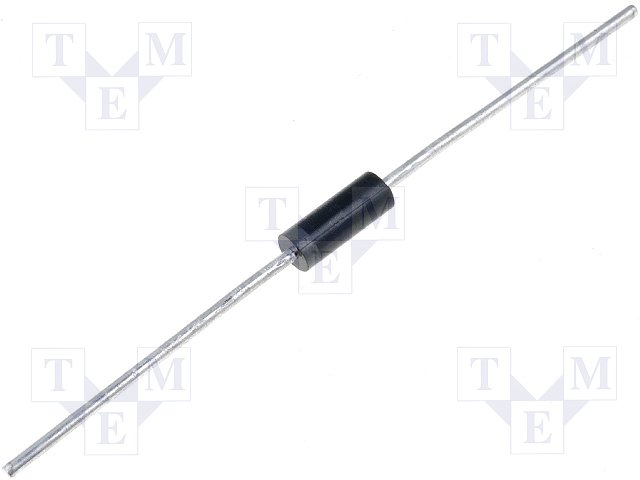

Images
TME
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| onsemi | Obsolete | ||
| Semtech | Obsolete | ||
| Vishay | Obsolete | ||
| Vishay | Obsolete | ||
| Taiwan Semiconductor | Obsolete | ||
| Taiwan Semiconductor | Unknown | ||
| Diotec | Production | ||
| EIC Semiconductor | Production | ||
| STMicroelectronics | Obsolete | ||
| Rectron | Production |
