1206L050/15YR - Littelfuse
PTC Resettable Fuse 0.5A(hold) 1A(trip) 15VDC 100A 0.6W 0.1s 0.15Ohm SMD Solder Pad 1206 T/R
Technical Details
| Ambient Temperature Range High | 85°C |
| Approvals | TUV, cULus |
| Case/Package | 1206 |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| China RoHS | Compliant |
| Current Rating | 100A |
| Height | 750µm |
| Hold Current | 500mA |
| Lead Free | Lead Free |
| Length | 3.4mm |
| Lifecycle Status | Production |
| Max Current Rating | 100A |
| Max Operating Temperature | 85°C |
| Maximum Resistance 1 Hour (R1max) | 750mΩ |
| Max Voltage Rating (DC) | 15V |
| Min Operating Temperature | -40°C |
| Minimum Resistance Initial (Rmin) | 150mΩ |
| Mount | Surface Mount |
| Number of Terminals | 2 |
| Operating Supply Voltage | 15V |
| Packaging | Tape & Reel (TR) |
| Power Dissipation | 600mW |
| REACH SVHC | Yes |
| Resistance | 150mΩ |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Time to Trip | 100ms |
| Trip Current | 1A |
| Voltage Rating | 15V |
| Voltage Rating (DC) | 15V |
| Width | 1.8mm |
| Working Voltage | 15V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

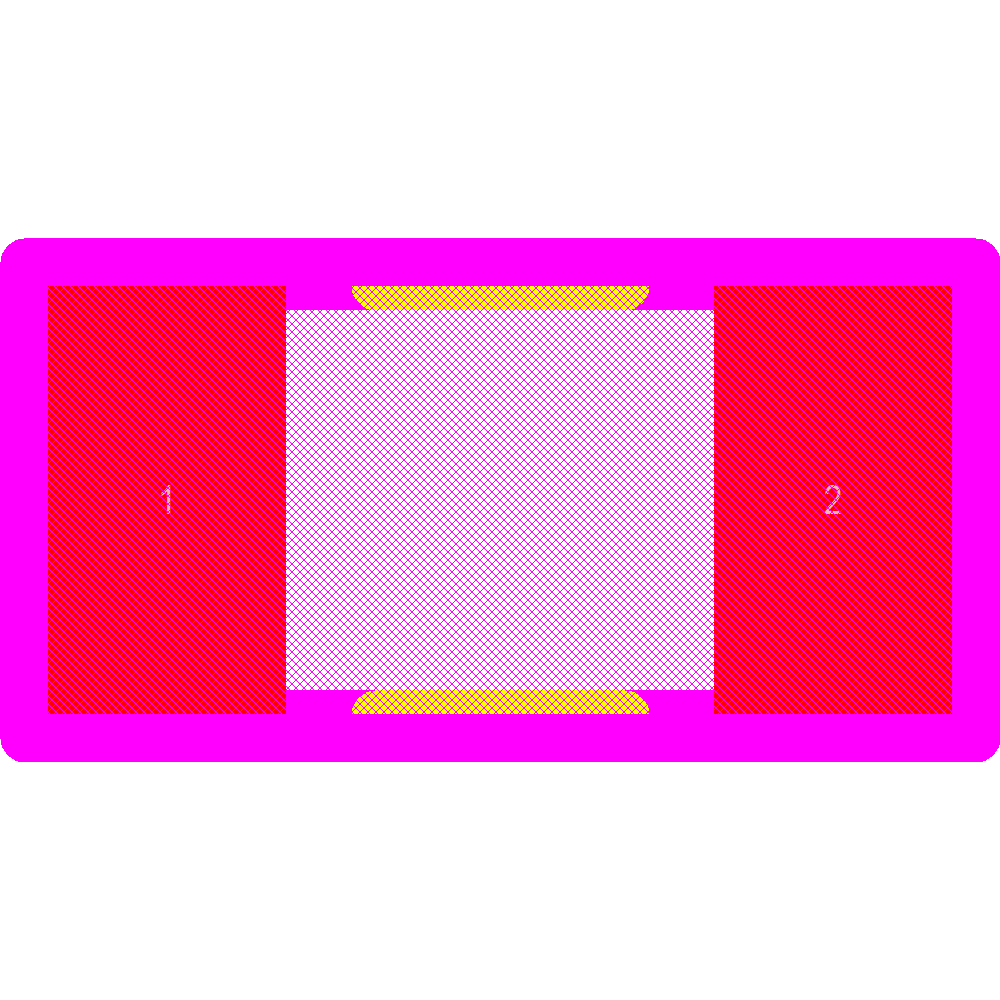

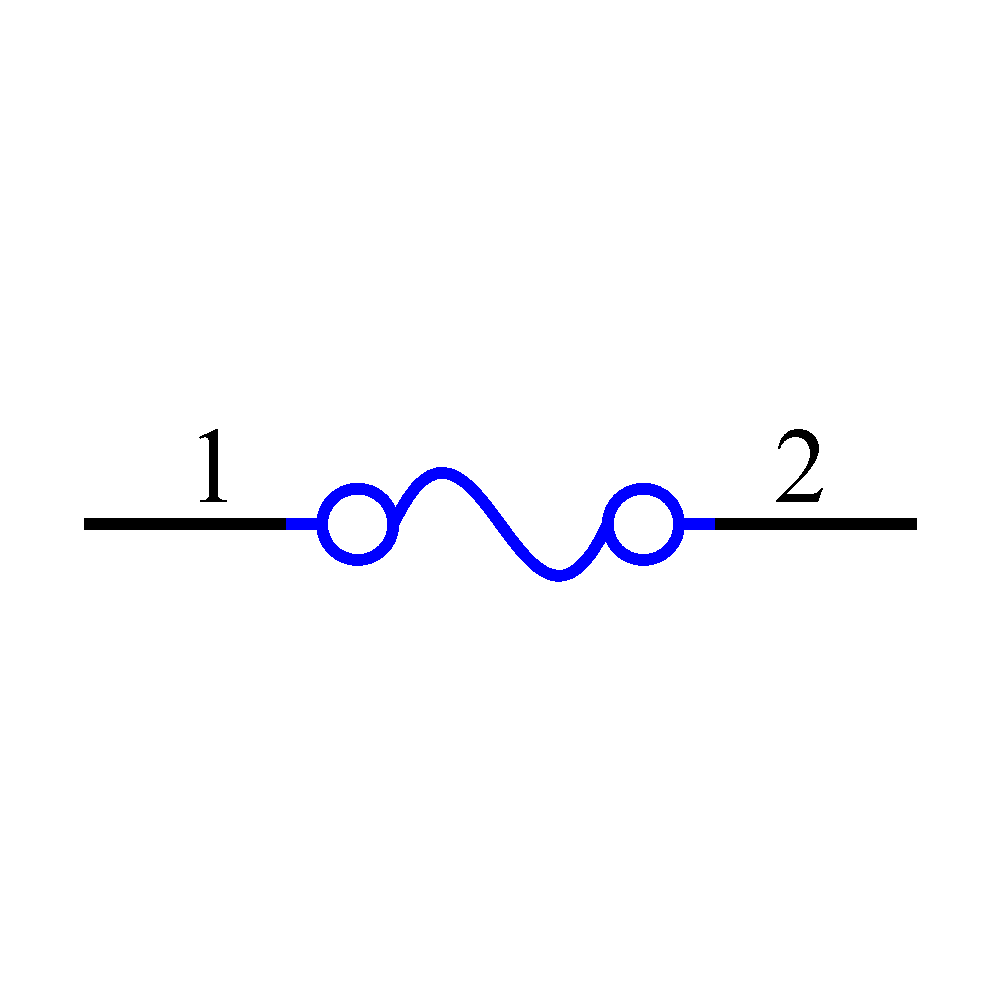

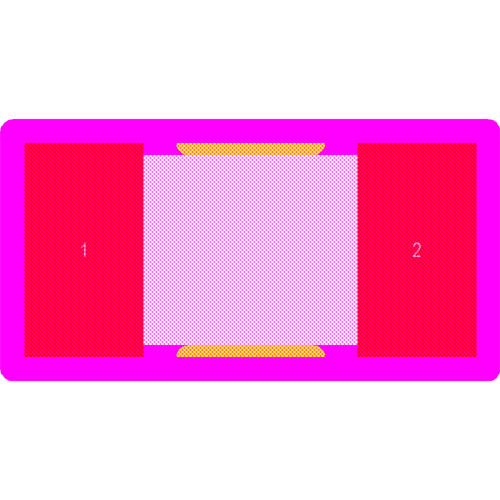

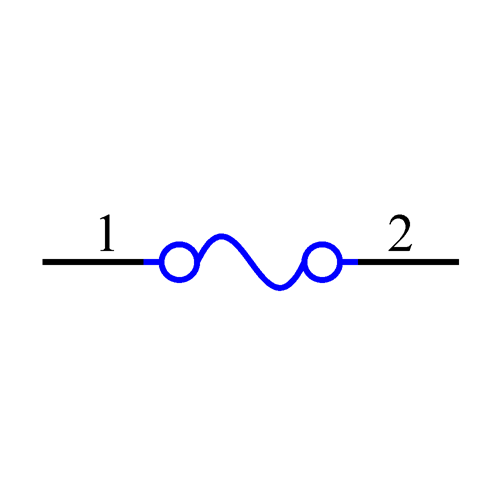

Images
