1206L150THWR - Littelfuse

PTC Resettable Fuse 1.5A(hold) 3A(trip) 8VDC 100A 0.8W 0.3s 0.04Ohm SMD Solder Pad 1206 T/R

Technical Details

Ambient Temperature Range High	85°C
Approvals	TUV, cULus
Case/Package	1206
Case Code (Imperial)	1206
Case Code (Metric)	3216
Current Rating	100A
Height	1mm
Hold Current	1.5A
Lead Free	Lead Free
Length	3.4mm
Lifecycle Status	Production
Max Current Rating	100A
Max Operating Temperature	85°C
Maximum Resistance 1 Hour (R1max)	120mΩ
Max Voltage Rating (DC)	8V
Min Operating Temperature	-40°C
Minimum Resistance Initial (Rmin)	40mΩ
Mount	Surface Mount
Number of Terminals	2
Operating Supply Voltage	8V
Power Dissipation	800mW
REACH SVHC	Yes
Resistance	40mΩ
RoHS	Compliant
Terminal Material	Copper
Termination	SMD/SMT
Time to Trip	300ms
Trip Current	3A
Voltage Rating	8V
Voltage Rating (DC)	8V
Width	1.8mm
Working Voltage	8V

Compliance

RoHS : Unconfirmed

REACH SVHC : Yes

Images

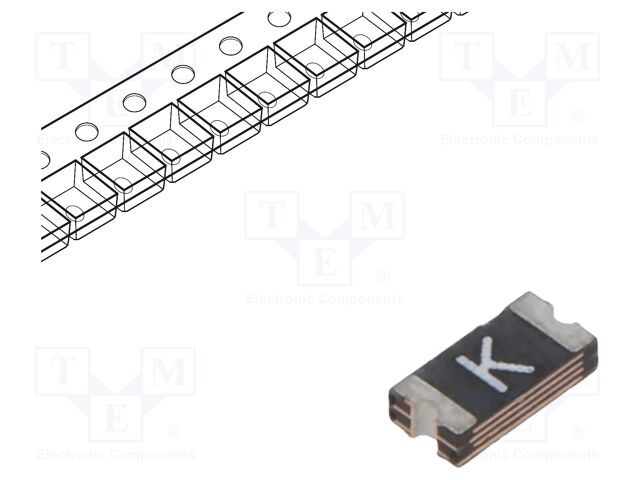

Littelfuse 1206L150THWR | TME

TME

Datasheets

Lifecycle Status Indicator

Production

Symbol

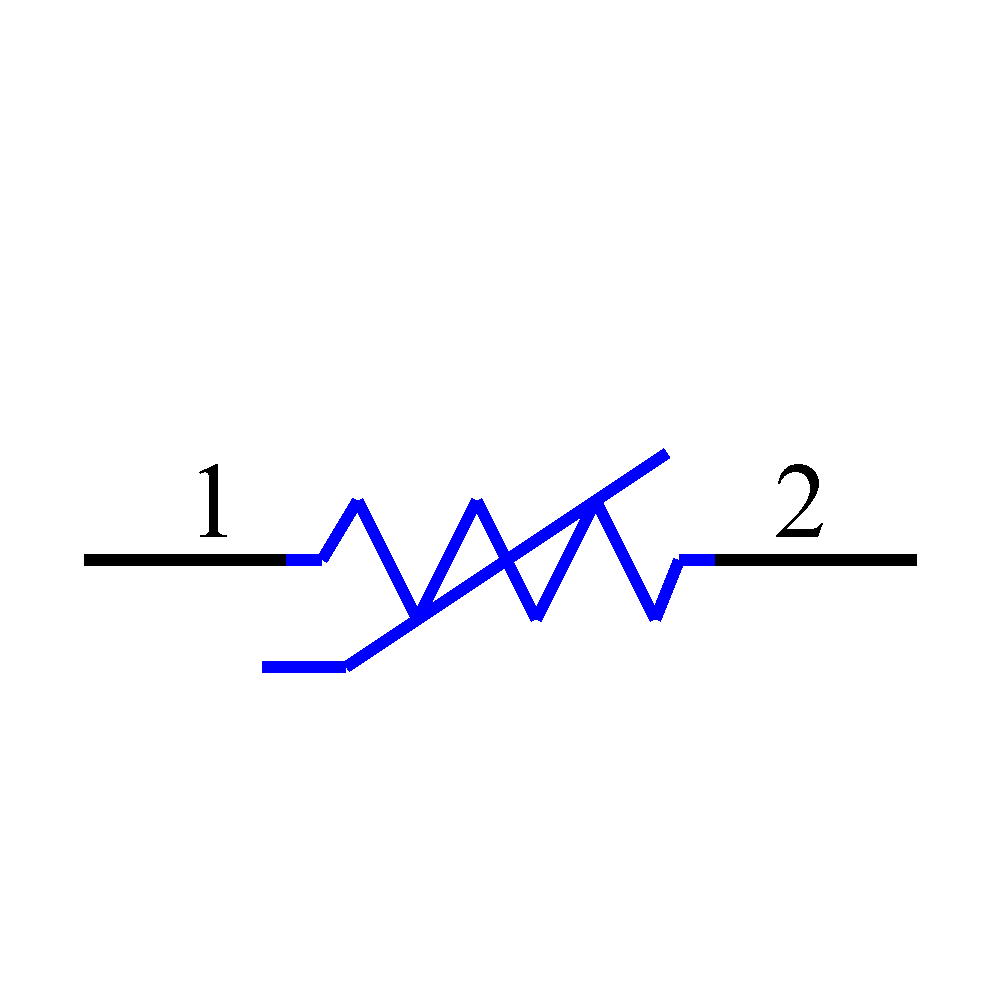

1206L150THWR Symbol - Littelfuse

1206L150THWR Symbol - Littelfuse

1206L150THWR Symbol - Littelfuse

1206L150THWR Symbol - Littelfuse

‹ ›

Footprint

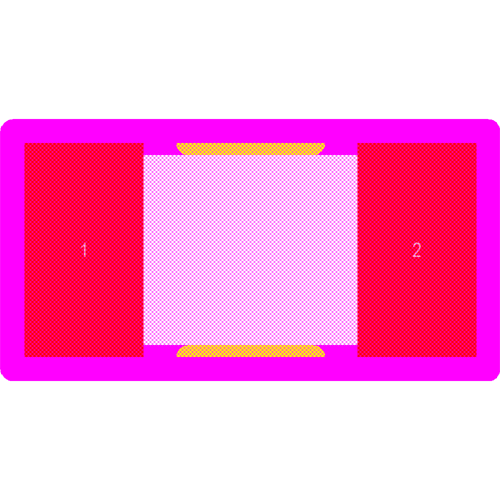

1206L150THWR Footprint - Littelfuse

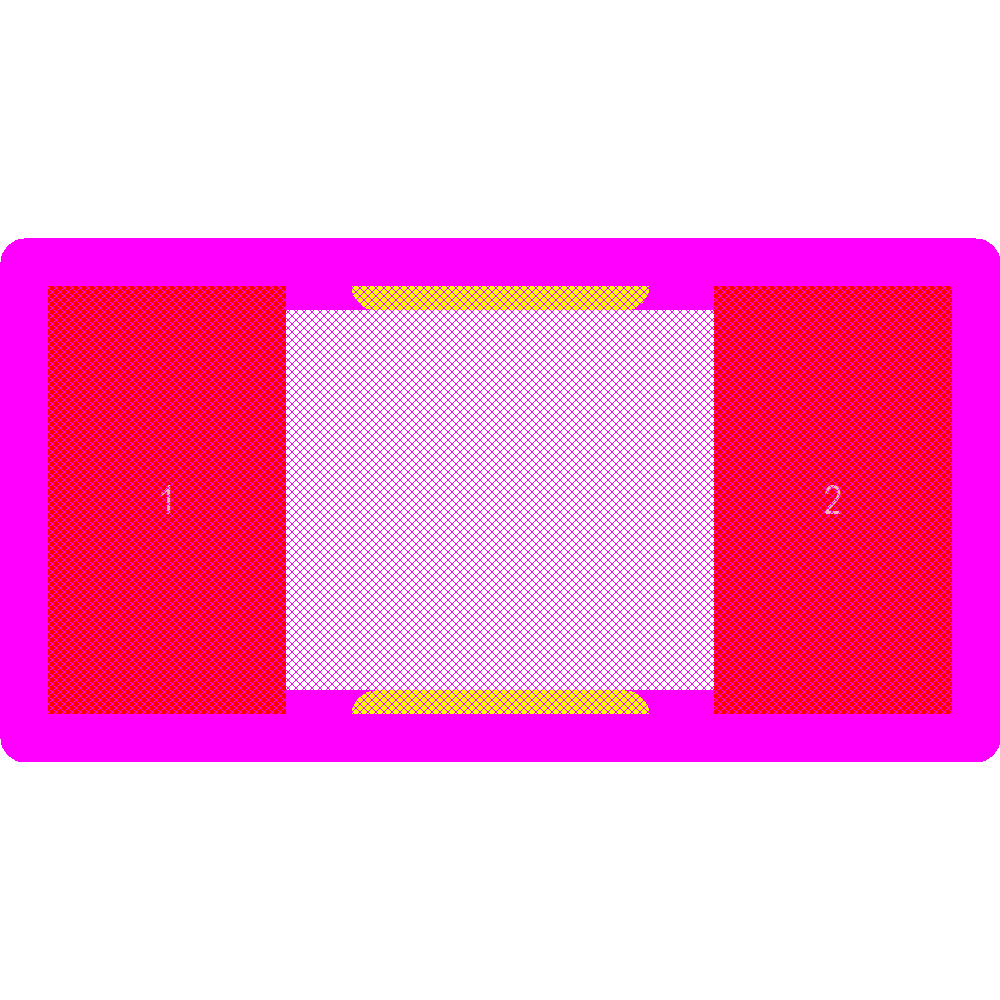

1206L150THWR Footprint - Littelfuse
