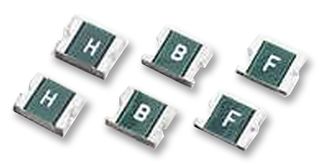

1210L005WR - Littelfuse
PTC Resettable Fuse 0.05A(hold) 0.15A(trip) 30VDC 10A 0.6W 1.5s 3.6Ohm SMD Solder Pad 1210 T/R
Technical Details
| Ambient Temperature Range High | 85°C |
| Approvals | TUV, cULus |
| Case/Package | 1210 |
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3225 |
| China RoHS | Compliant |
| Current Rating | 10A |
| Height | 1.25mm |
| Hold Current | 50mA |
| Lead Free | Lead Free |
| Length | 3.43mm |
| Lifecycle Status | Production |
| Max Current Rating | 10A |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 600mW |
| Maximum Resistance 1 Hour (R1max) | 50Ω |
| Max Voltage Rating (DC) | 30V |
| Min Operating Temperature | -40°C |
| Minimum Resistance Initial (Rmin) | 3.6Ω |
| Mount | Surface Mount |
| Number of Terminals | 2 |
| Operating Supply Voltage | 30V |
| Packaging | Cut Tape |
| Power Dissipation | 600mW |
| REACH SVHC | Yes |
| Resistance | 3.6Ω |
| RoHS | Compliant |
| Terminal Material | Copper |
| Termination | SMD/SMT |
| Time to Trip | 1.5s |
| Trip Current | 150mA |
| Voltage Rating | 30V |
| Voltage Rating (DC) | 30V |
| Width | 2.8mm |
| Working Voltage | 30V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
