1210L075YR - Littelfuse
PTC Resettable Fuse 0.75A(hold) 1.5A(trip) 6VDC 100A 0.6W 0.1s 0.13Ohm SMD Solder Pad 1210 T/R
Technical Details
| Approvals | TUV, cULus |
| Case/Package | 1210 |
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3225 |
| China RoHS | Compliant |
| Current Rating | 100A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 850µm |
| Hold Current | 750mA |
| Harmonized Tariff Schedule (HTS) Code | 8533.40.80.70 |
| Introduction Date | 2006-06-15 |
| Lead Free | Lead Free |
| Length | 3.43mm |
| Lifecycle Status | Production |
| Max Current Rating | 100A |
| Max Operating Temperature | 85°C |
| Maximum Resistance 1 Hour (R1max) | 400mΩ |
| Max Voltage Rating (DC) | 6V |
| Min Operating Temperature | -40°C |
| Minimum Resistance Initial (Rmin) | 130mΩ |
| Mount | Surface Mount |
| Number of Terminals | 2 |
| Operating Supply Voltage | 6V |
| Packaging | Cut Tape |
| Power Dissipation | 600mW |
| REACH SVHC | Yes |
| Resistance | 130mΩ |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Time to Trip | 100ms |
| Trip Current | 1.5A |
| Voltage Rating (DC) | 6V |
| Width | 2.8mm |
| Working Voltage | 6V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

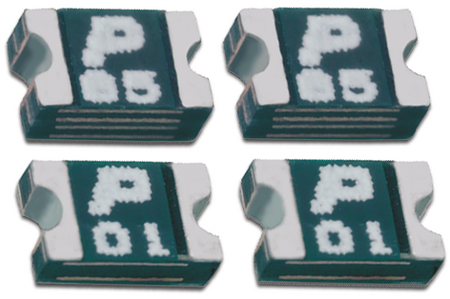

Images
