Circuit Protection > PTC Resettable Fuses

1812L050/30PR - Littelfuse

PTC Resettable Fuse 0.5A(hold) 1A(trip) 30VDC 100A 0.8W 0.15s 0.15Ohm SMD Solder Pad 1812 T/R

Technical Details

Approvals	TUV, cULus
Case/Package	1812
Case Code (Imperial)	1812
Case Code (Metric)	4532
Country of Origin	Taiwan
Current Rating	100A
Export Control Classification Number (ECCN) Code	EAR99
Height	1mm
Hold Current	500mA
Harmonized Tariff Schedule (HTS) Code	8533.40.80.70
Introduction Date	2012-03-02
Lead Free	Lead Free
Length	4.73mm
Lifecycle Status	Production
Max Current Rating	100A
Max Operating Temperature	85°C
Maximum Resistance 1 Hour (R1max)	1Ω
Max Voltage Rating (DC)	30V
Min Operating Temperature	-40°C
Minimum Resistance Initial (Rmin)	150mΩ
Mount	Surface Mount
Number of Terminals	2
Power Dissipation	800mW
REACH SVHC	Yes
Resistance	150mΩ
RoHS	Compliant
Termination	SMD/SMT
Time to Trip	150ms
Trip Current	1A
Voltage Rating (DC)	30V
Width	3.41mm
Working Voltage	30V

Compliance

RoHS : Unconfirmed

REACH SVHC : Yes

Images

Littelfuse 1812L050/30PR | CPC

CPC

Datasheets

Lifecycle Status Indicator

Production

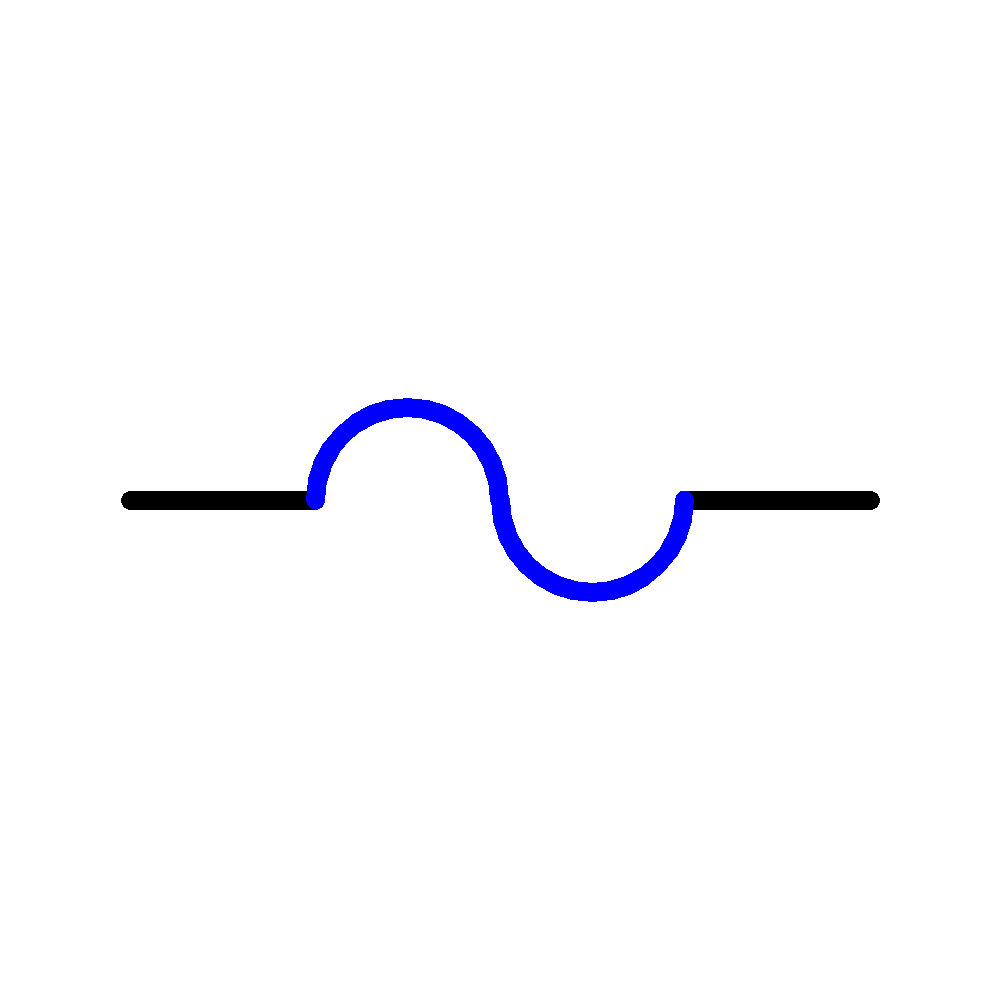

Symbol

1812L050/30PR Symbol - Littelfuse

1812L050/30PR Symbol - Littelfuse

1812L050/30PR Symbol - Littelfuse

1812L050/30PR Symbol - Littelfuse

‹ ›

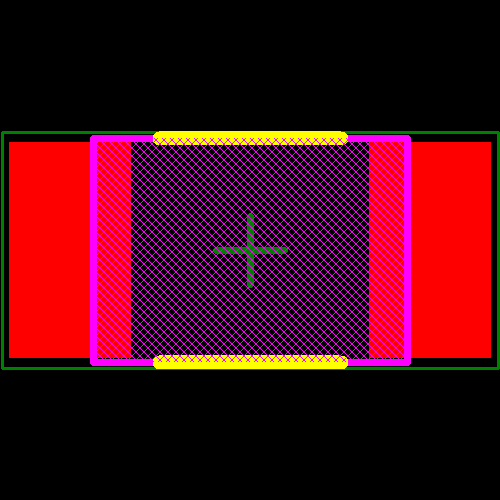

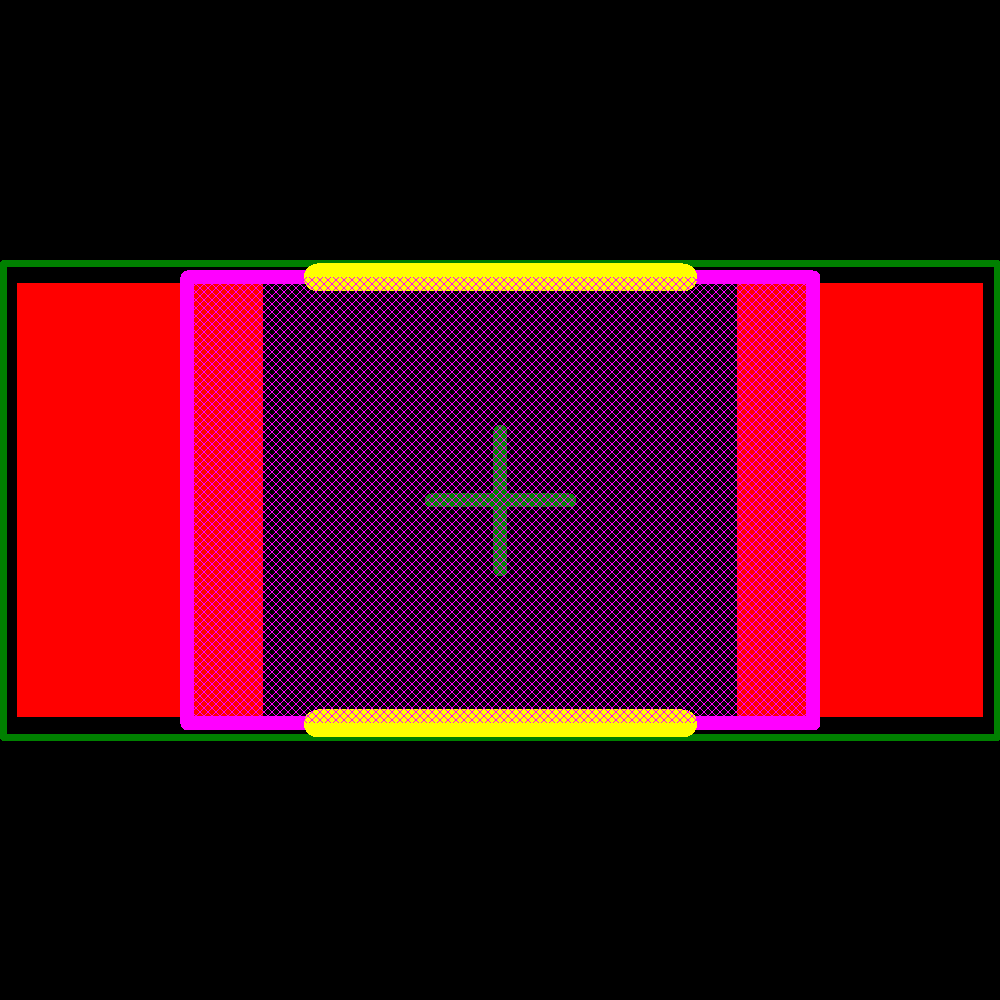

Footprint
