Circuit Protection > PTC Resettable Fuses

1812L075/24DR - Littelfuse

PTC Resettable Fuse 0.75A(hold) 1.5A(trip) 24VDC 100A 0.8W 0.2s 0.11Ohm SMD Solder Pad 1812 T/R

Technical Details

Approvals	TUV, cULus
Case/Package	1812
Case Code (Imperial)	1812
Case Code (Metric)	4532
China RoHS	Compliant
Current Rating	100A
Height	1.2mm
Hold Current	750mA
Lead Free	Lead Free
Length	4.73mm
Lifecycle Status	Production
Max Current Rating	100A
Max Operating Temperature	85°C
Maximum Resistance 1 Hour (R1max)	290mΩ
Max Voltage Rating (DC)	24V
Min Operating Temperature	-40°C
Minimum Resistance Initial (Rmin)	110mΩ
Mount	Surface Mount
Number of Terminals	2
Operating Supply Voltage	24V
Packaging	Cut Tape
Power Dissipation	800mW
REACH SVHC	Yes
Resistance	110mΩ
RoHS	Compliant
Termination	SMD/SMT
Time to Trip	200ms
Trip Current	1.5A
Voltage Rating (DC)	24V
Width	3.41mm
Working Voltage	24V

Compliance

RoHS : Unconfirmed

REACH SVHC : Yes

Images

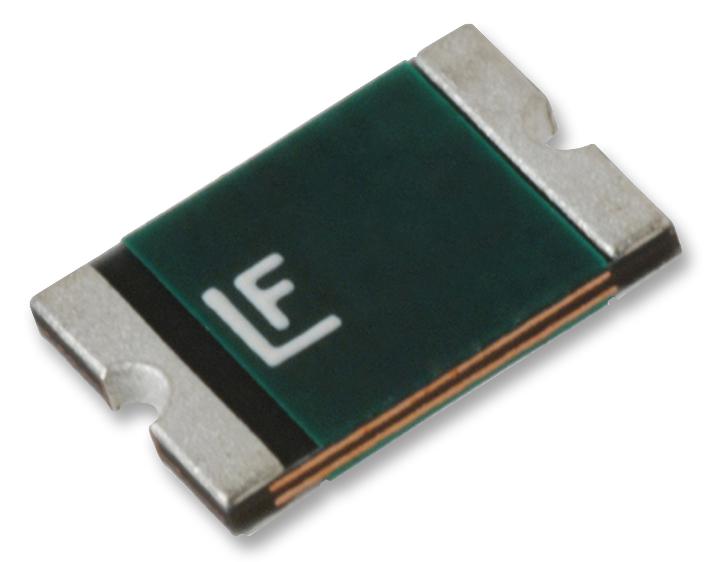

Littelfuse 1812L075/24DR | CPC

CPC

Datasheets

Lifecycle Status Indicator

Production

Symbol

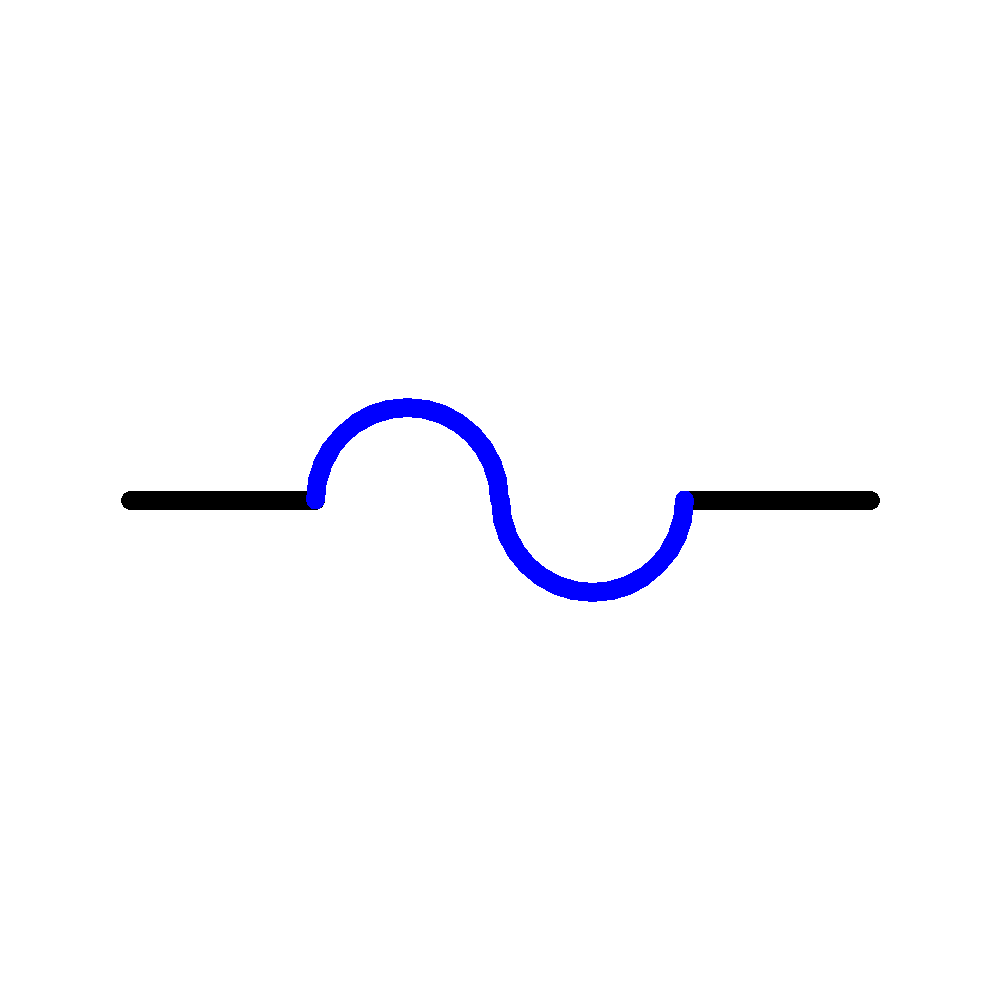

1812L075/24DR Symbol - Littelfuse

1812L075/24DR Symbol - Littelfuse

1812L075/24DR Symbol - Littelfuse

1812L075/24DR Symbol - Littelfuse

‹ ›

Footprint

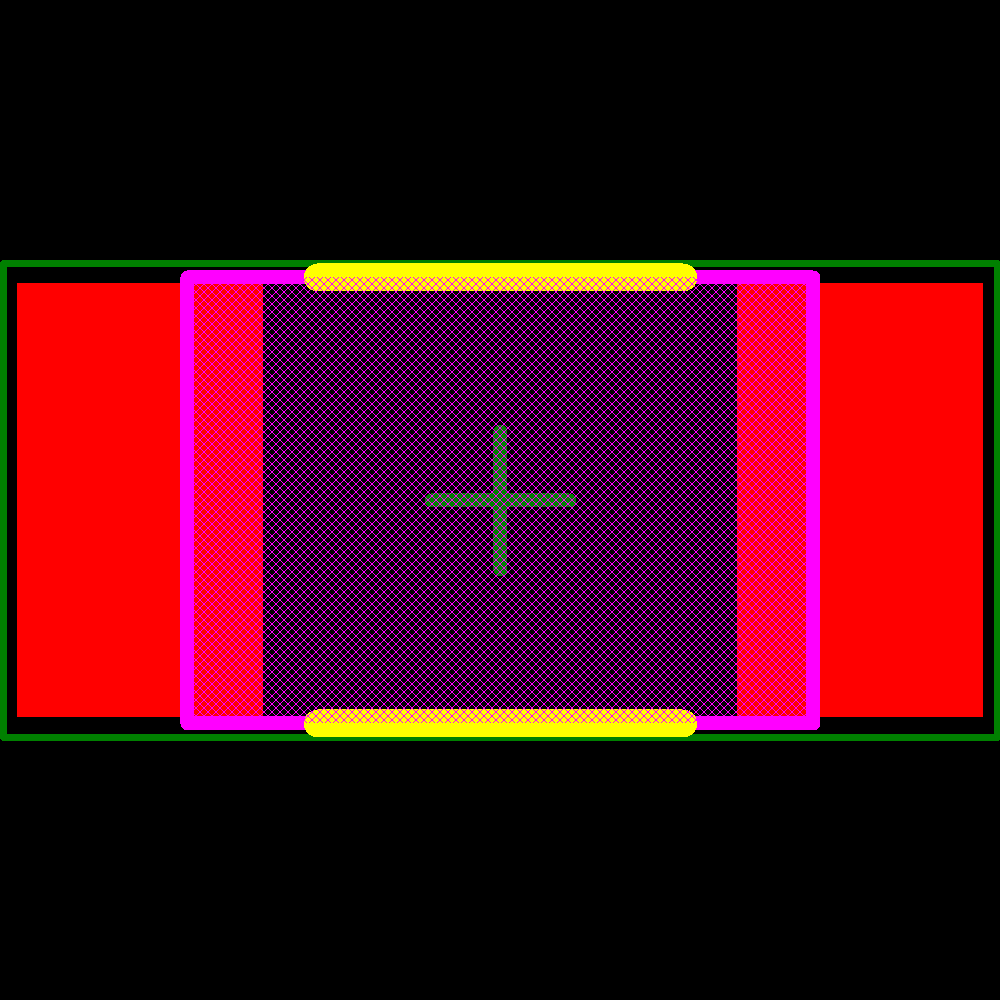

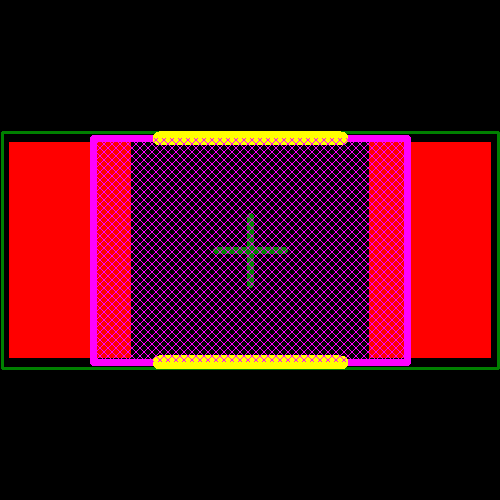

1812L075/24DR Footprint - Littelfuse
