1812L200THPR - Littelfuse
PTC Resettable Fuse 2A(hold) 3.5A(trip) 8VDC 100A 0.8W 2s 0.02Ohm SMD Solder Pad 1812 T/R
Technical Details
| Approvals | TUV, cULus |
| Case/Package | 1812 |
| Case Code (Imperial) | 1812 |
| Case Code (Metric) | 4532 |
| China RoHS | Compliant |
| Current Rating | 100A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 600µm |
| Hold Current | 2A |
| Harmonized Tariff Schedule (HTS) Code | 8533.40.80.70 |
| Introduction Date | 2012-01-03 |
| Lead Free | Lead Free |
| Length | 4.73mm |
| Lifecycle Status | Production |
| Max Current Rating | 100A |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 800mW |
| Maximum Resistance 1 Hour (R1max) | 70mΩ |
| Max Voltage Rating (DC) | 8V |
| Min Operating Temperature | -40°C |
| Minimum Resistance Initial (Rmin) | 20mΩ |
| Mount | Surface Mount |
| Number of Terminals | 2 |
| Operating Supply Voltage | 8V |
| Packaging | Cut Tape |
| Power Dissipation | 800mW |
| REACH SVHC | Yes |
| Resistance | 20mΩ |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Time to Trip | 2s |
| Trip Current | 4A |
| Voltage Rating (DC) | 8V |
| Width | 3.41mm |
| Working Voltage | 8V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
Images

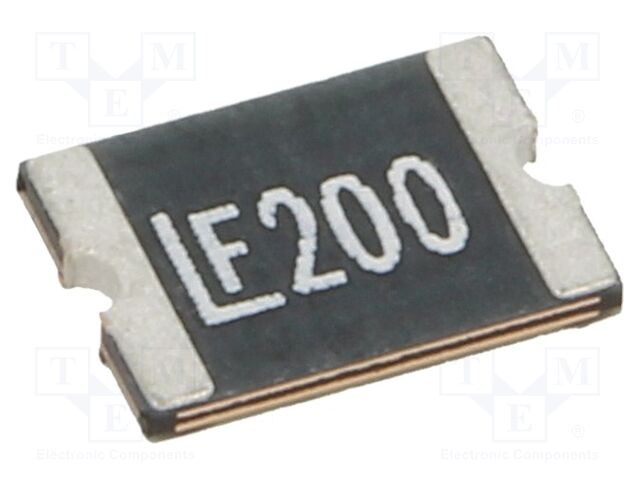

TME
