Circuit Protection > PTC Resettable Fuses

2016L050MR - Littelfuse

PTC Resettable Fuse 0.55A(hold) 1.1A(trip) 60VDC 20A 1.4W 5s 0.2Ohm SMD Solder Pad 2016 T/R

Technical Details

Approvals	TUV, cULus
Case/Package	2016
Case Code (Imperial)	2016
Case Code (Metric)	5041
China RoHS	Compliant
Export Control Classification Number (ECCN) Code	EAR99
Height	2mm
Hold Current	550mA
Harmonized Tariff Schedule (HTS) Code	8533.40.80.70
Introduction Date	2006-06-15
Lead Free	Lead Free
Length	5.44mm
Lifecycle Status	Production
Max Current Rating	20A
Max Operating Temperature	85°C
Maximum Resistance 1 Hour (R1max)	1Ω
Max Voltage Rating (DC)	60V
Min Operating Temperature	-40°C
Minimum Resistance Initial (Rmin)	200mΩ
Mount	Surface Mount
Number of Terminals	2
Operating Supply Voltage	60V
Packaging	Cut Tape
Power Dissipation	1.4W
REACH SVHC	Yes
Resistance	200mΩ
RoHS	Compliant
Termination	SMD/SMT
Time to Trip	5s
Trip Current	1.1A
Voltage Rating (DC)	60V
Width	4.43mm
Working Voltage	60V

Compliance

RoHS : Unconfirmed

REACH SVHC : Yes

Images

Littelfuse 2016L050MR | Farnell

Farnell

Datasheets

Lifecycle Status Indicator

Production

Symbol

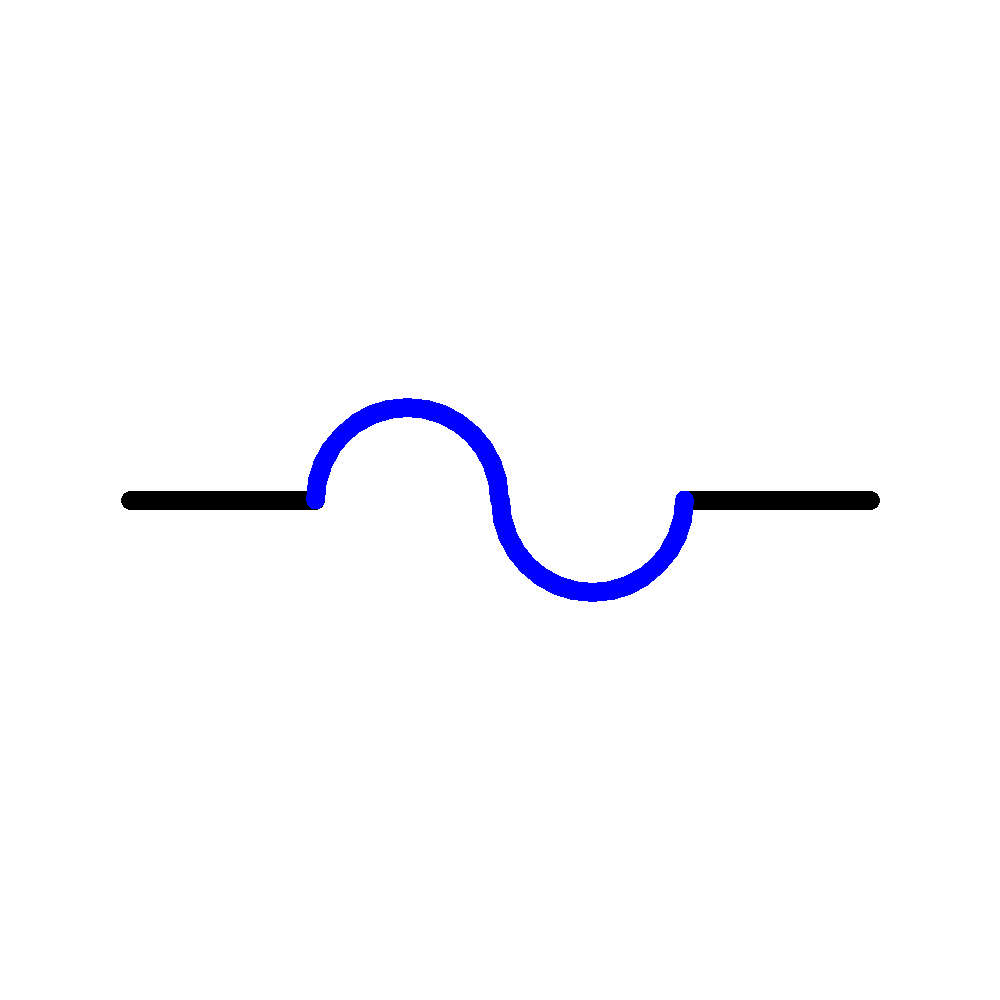

2016L050MR Symbol - Littelfuse

2016L050MR Symbol - Littelfuse

2016L050MR Symbol - Littelfuse

2016L050MR Symbol - Littelfuse

‹ ›

Footprint

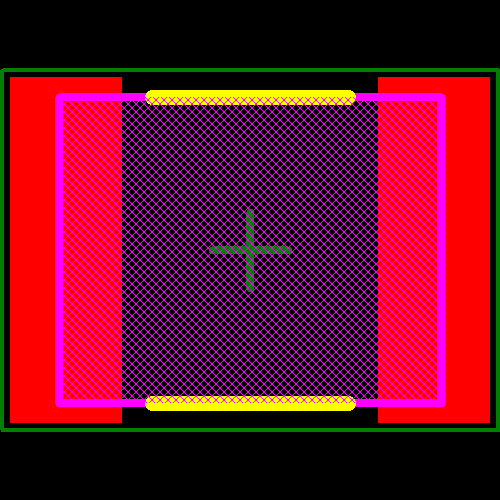

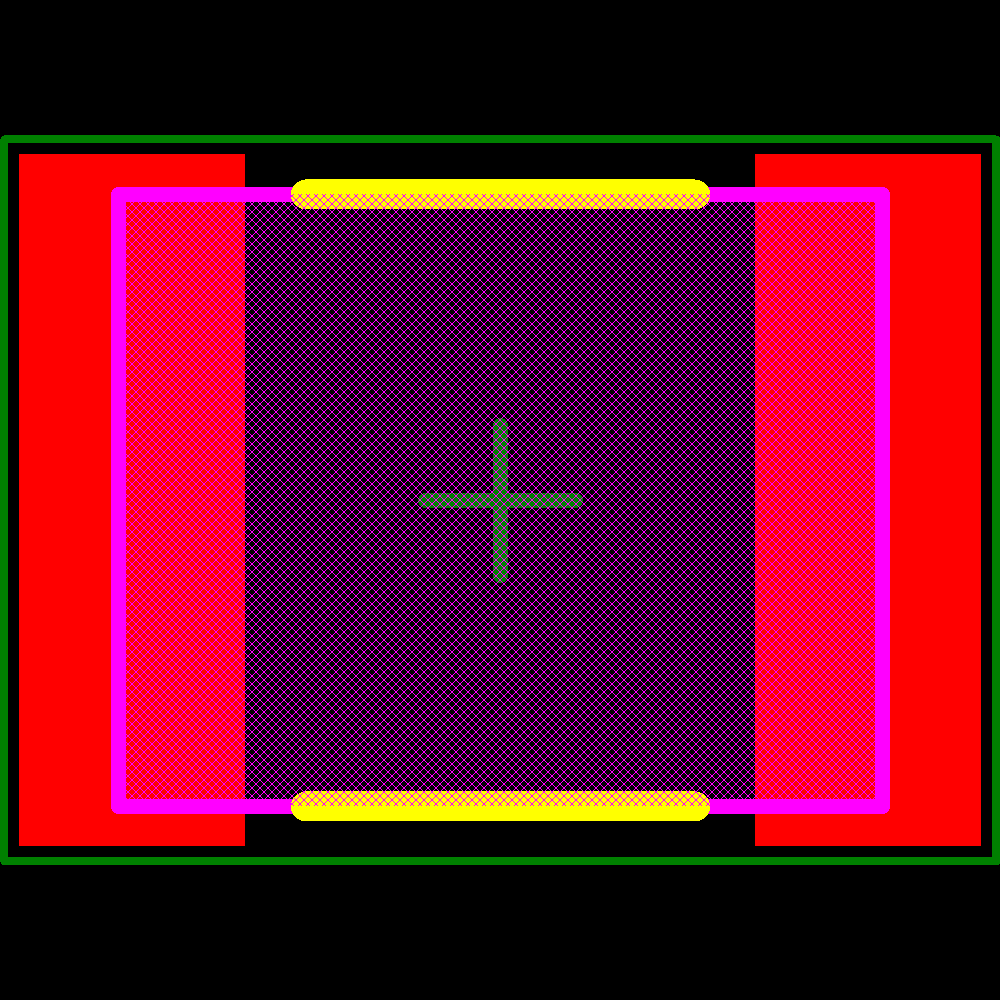

2016L050MR Footprint - Littelfuse
