Circuit Protection > PTC Resettable Fuses

2016L100/33DR - Littelfuse

PTC Resettable Fuse 1.1A(hold) 2.2A(trip) 33VDC 40A 1.4W 0.5s 0.1Ohm SMD Solder Pad 2016 T/R

Technical Details

Ambient Temperature Range High	85°C
Approvals	TUV, cULus
Case/Package	2016
Case Code (Imperial)	2016
Case Code (Metric)	5041
China RoHS	Compliant
Current Rating	40A
Height	1.25mm
Hold Current	1.1A
Lead Free	Lead Free
Length	5.44mm
Lifecycle Status	Production
Max Current Rating	40A
Max Operating Temperature	85°C
Maximum Resistance 1 Hour (R1max)	400mΩ
Min Operating Temperature	-40°C
Minimum Resistance Initial (Rmin)	100mΩ
Mount	Surface Mount
Number of Terminals	2
Operating Supply Voltage	33V
Power Dissipation	1.4W
REACH SVHC	Yes
Resistance	100mΩ
RoHS	Compliant
Termination	SMD/SMT
Time to Trip	500ms
Trip Current	2.2A
Voltage Rating	33V
Voltage Rating (DC)	33V
Width	4.43mm
Working Voltage	33V

Compliance

RoHS : Unconfirmed

REACH SVHC : Yes

Images

Littelfuse 2016L100/33DR | Farnell

Farnell

Datasheets

Lifecycle Status Indicator

Production

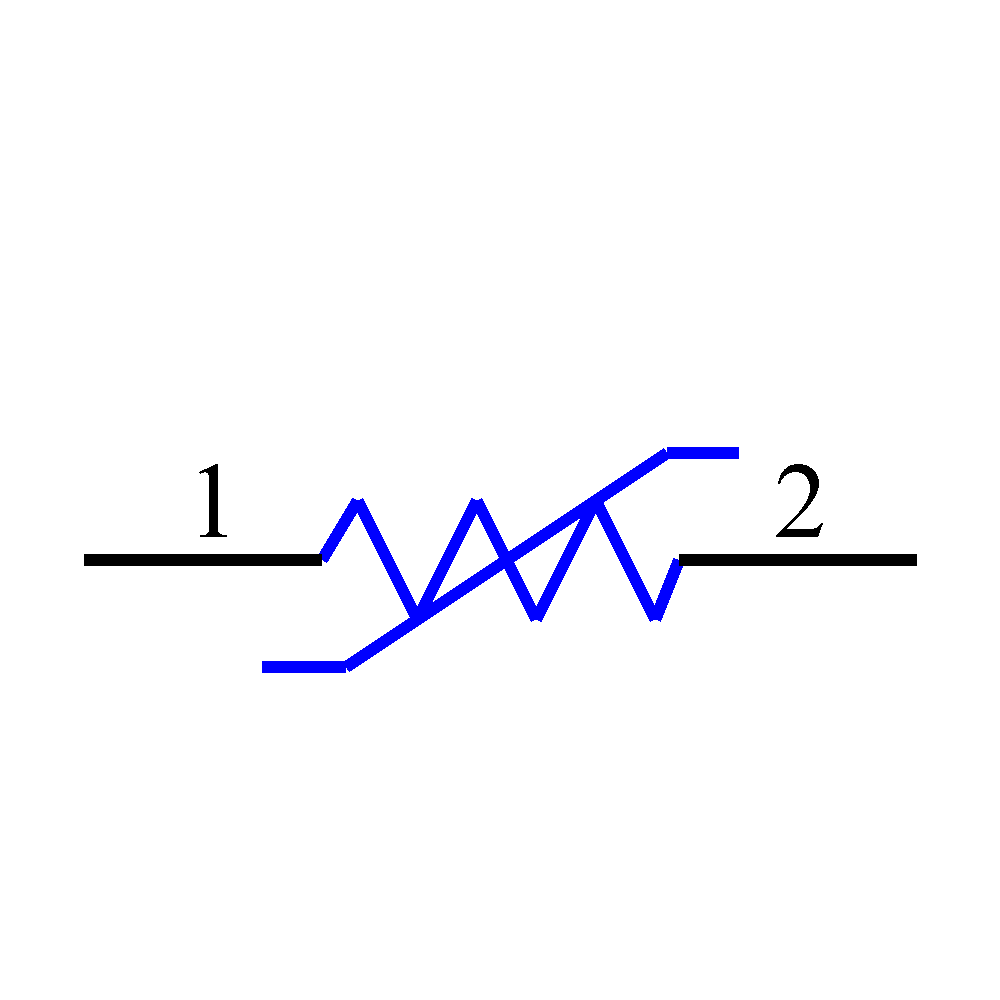

Symbol

2016L100/33DR Symbol - Littelfuse

2016L100/33DR Symbol - Littelfuse

2016L100/33DR Symbol - Littelfuse

2016L100/33DR Symbol - Littelfuse

‹ ›

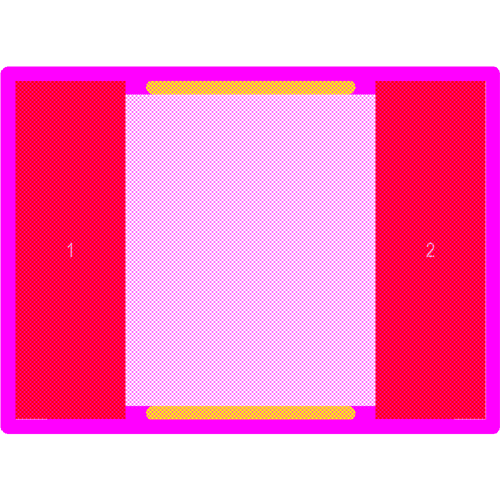

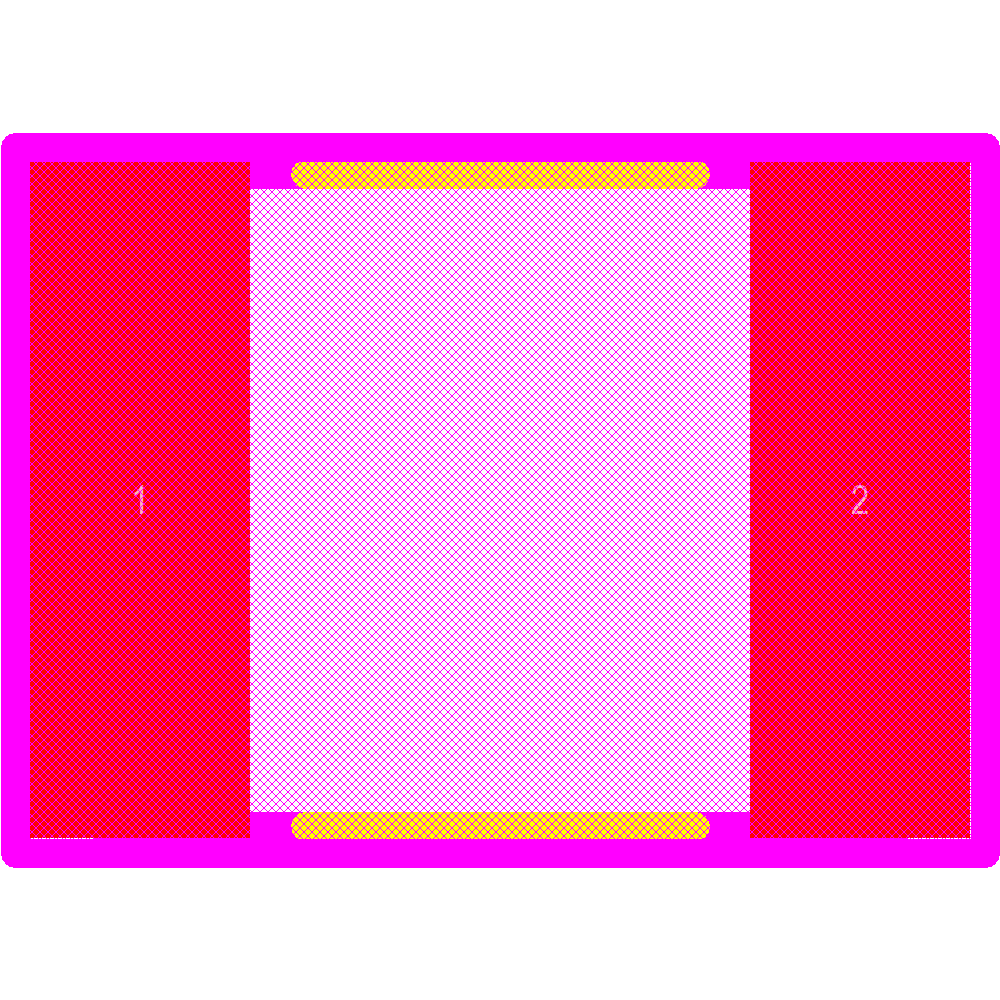

Footprint
