2016L150DR - Littelfuse
PTC Resettable Fuse 1.5A(hold) 3A(trip) 15VDC 40A 1.4W 1s 0.07Ohm SMD Solder Pad 2016 T/R
Technical Details
| Ambient Temperature Range High | 85°C |
| Approvals | TUV, cULus |
| Case/Package | 2016 |
| Case Code (Imperial) | 2016 |
| Case Code (Metric) | 5041 |
| China RoHS | Compliant |
| Current Rating | 40A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 1.55mm |
| Hold Current | 1.5A |
| Harmonized Tariff Schedule (HTS) Code | 8533.40.80.70 |
| Introduction Date | 2006-06-15 |
| Lead Free | Lead Free |
| Length | 5.44mm |
| Lifecycle Status | Production |
| Max Current Rating | 40A |
| Max Operating Temperature | 85°C |
| Maximum Resistance 1 Hour (R1max) | 180mΩ |
| Max Voltage Rating (DC) | 15V |
| Min Operating Temperature | -40°C |
| Minimum Resistance Initial (Rmin) | 70mΩ |
| Mount | Surface Mount |
| Number of Terminals | 2 |
| Operating Supply Voltage | 15V |
| Packaging | Cut Tape |
| Power Dissipation | 1.4W |
| REACH SVHC | Yes |
| Resistance | 70mΩ |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Time to Trip | 1s |
| Trip Current | 3A |
| Voltage Rating | 15V |
| Voltage Rating (DC) | 15V |
| Width | 4.43mm |
| Working Voltage | 15V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
Images

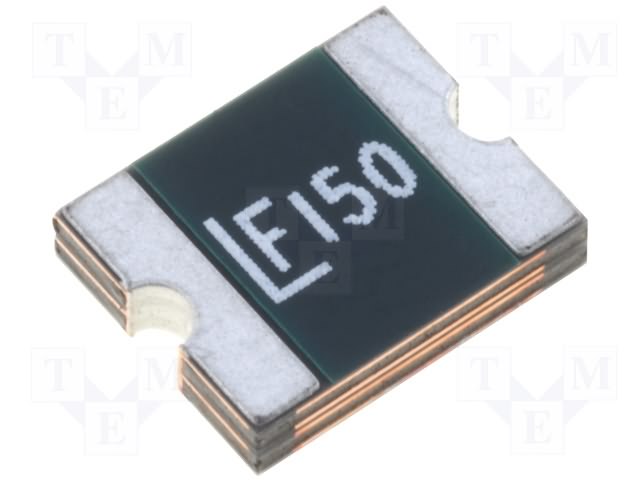

TME
