Circuit Protection > PTC Resettable Fuses

2920L150DR - Littelfuse

PTC Resettable Fuse 1.5A(hold) 3A(trip) 33VDC 40A 1.5W 2s 0.08Ohm SMD Solder Pad 2920 T/R

Technical Details

Ambient Temperature Range High	85°C
Approvals	TUV, cULus
Case/Package	2920
Case Code (Imperial)	2920
Case Code (Metric)	7351
China RoHS	Compliant
Current Rating	40A
Export Control Classification Number (ECCN) Code	EAR99
Height	1.25mm
Hold Current	1.5A
Harmonized Tariff Schedule (HTS) Code	8533.40.80.70
Introduction Date	2006-06-15
Lead Free	Lead Free
Length	7.98mm
Lifecycle Status	Production
Max Current Rating	40A
Max Operating Temperature	85°C
Maximum Resistance 1 Hour (R1max)	230mΩ
Min Operating Temperature	-40°C
Minimum Resistance Initial (Rmin)	80mΩ
Mount	Surface Mount
Number of Terminals	2
Operating Supply Voltage	33V
Power Dissipation	1.5W
REACH SVHC	Yes
Resistance	80mΩ
RoHS	Compliant
Terminal Material	Copper
Termination	SMD/SMT
Time to Trip	2s
Trip Current	3A
Voltage Rating	33V
Voltage Rating (DC)	33V
Width	5.44mm
Working Voltage	33V

Compliance

RoHS : Unconfirmed

REACH SVHC : Yes

Images

Littelfuse 2920L150DR | Farnell

Farnell

Datasheets

Lifecycle Status Indicator

Production

Symbol

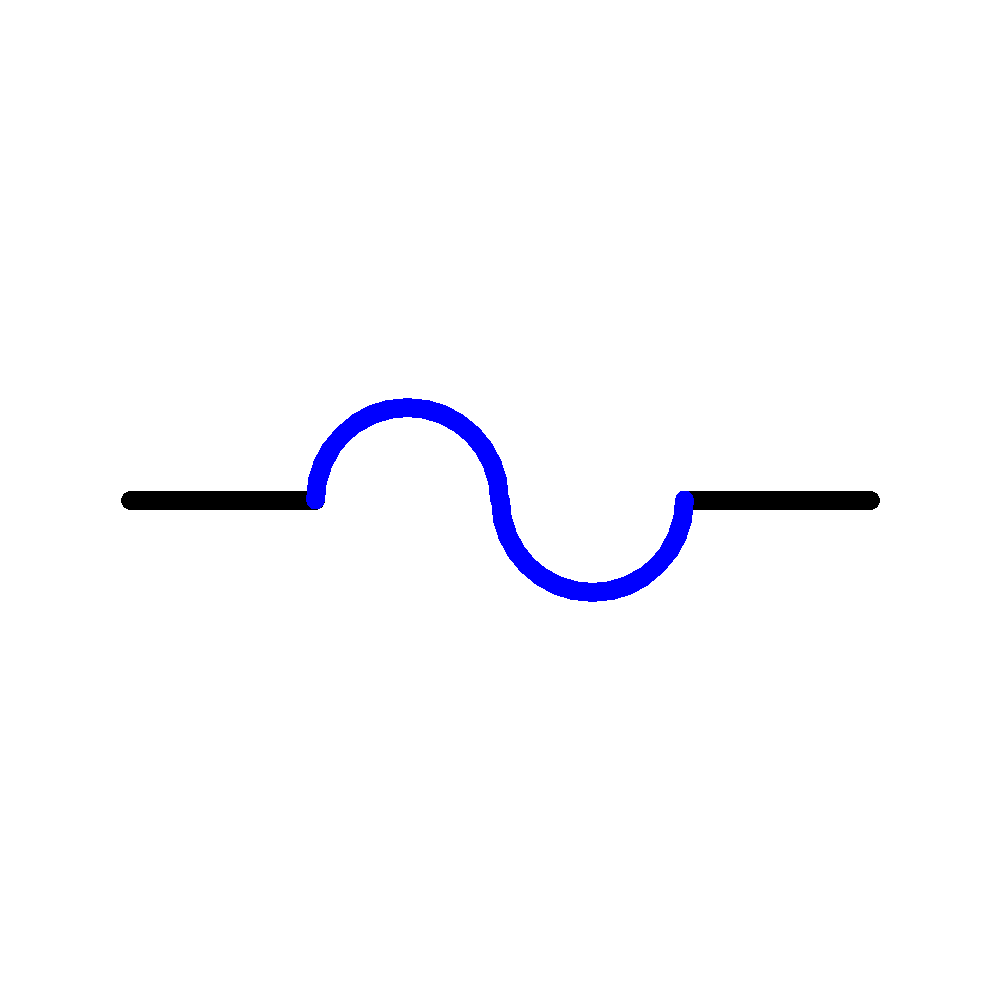

2920L150DR Symbol - Littelfuse

2920L150DR Symbol - Littelfuse

2920L150DR Symbol - Littelfuse

2920L150DR Symbol - Littelfuse

‹ ›

Footprint

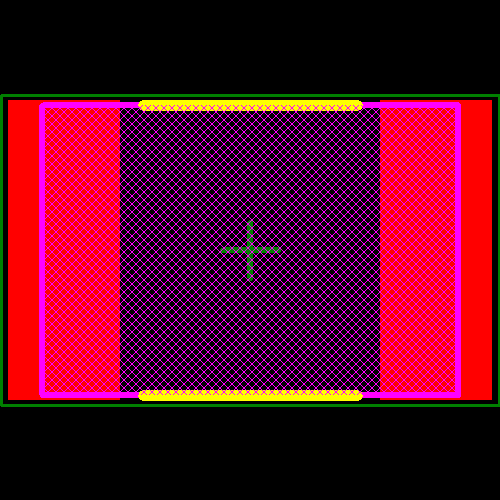

2920L150DR Footprint - Littelfuse

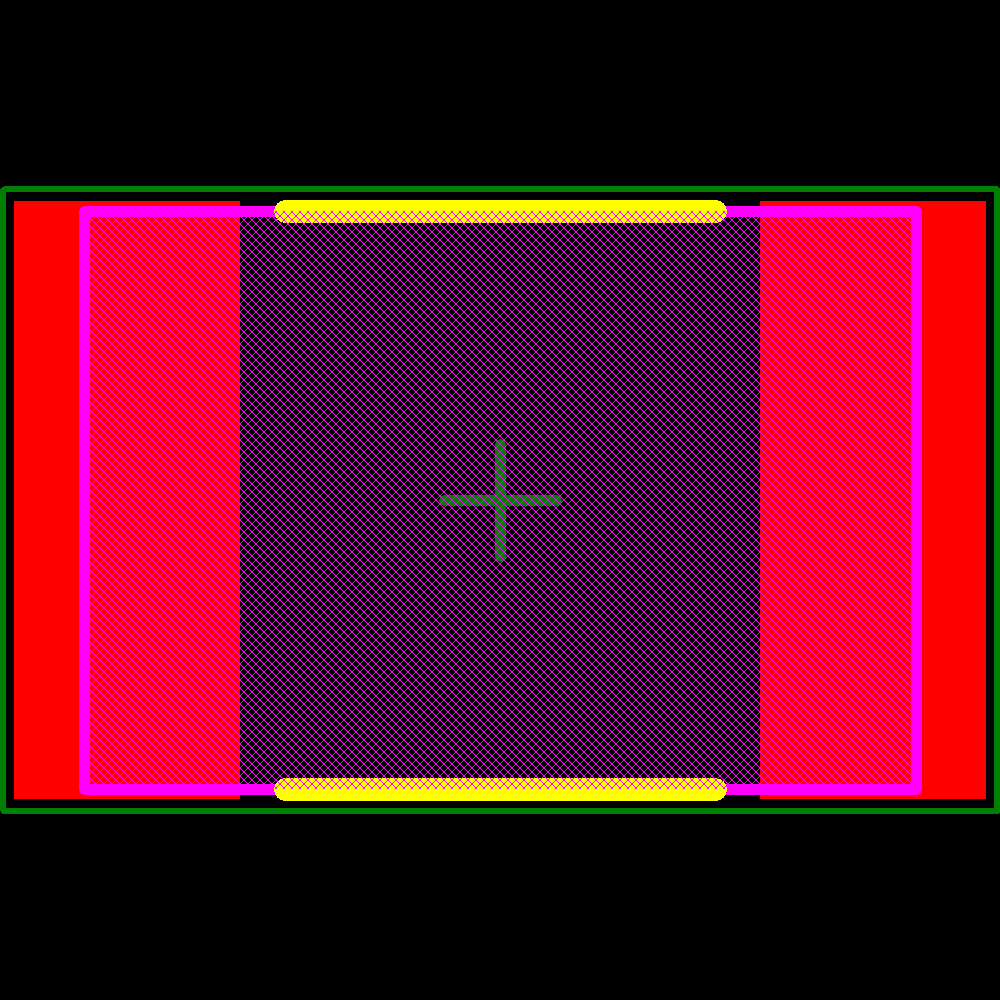

2920L150DR Footprint - Littelfuse

2920L150DR Footprint - Littelfuse

2920L150DR Footprint - Littelfuse

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
Littelfuse	2920L150	Production
Littelfuse	2920L250DR	Production
Littelfuse	2920L200/24	Production
Littelfuse	2920L300/15	Production
Littelfuse	2920L075DR	Production
Littelfuse	2920L200/24DR	Production
Littelfuse	2920L075	Production
Wickmann	SMD2920P300TF	Unknown
Littelfuse	2920L030DR	Production
Littelfuse	2920L185DR	Production

See more alternatives See less alternatives
