Circuit Protection > PTC Resettable Fuses

2920L200/24DR - Littelfuse

PTC Resettable Fuse 2A(hold) 4A(trip) 24VDC 40A 1.5W 5s 0.05Ohm SMD Solder Pad 2920 T/R

Technical Details

Ambient Temperature Range High	85°C
Approvals	TUV, cULus
Case/Package	2920
Case Code (Imperial)	2920
Case Code (Metric)	7351
China RoHS	Compliant
Current Rating	40A
Height	1.25mm
Hold Current	2A
Lead Free	Lead Free
Length	7.98mm
Lifecycle Status	Production
Max Current Rating	40A
Max Operating Temperature	85°C
Maximum Resistance 1 Hour (R1max)	125mΩ
Max Supply Voltage	24V
Max Voltage Rating (DC)	24V
Min Operating Temperature	-40°C
Minimum Resistance Initial (Rmin)	50mΩ
Mount	Surface Mount
Number of Terminals	2
Operating Supply Voltage	24V
Packaging	Cut Tape
Power Dissipation	1.5W
REACH SVHC	Yes
Resistance	50mΩ
RoHS	Compliant
Termination	SMD/SMT
Time to Trip	5s
Trip Current	4A
Voltage Rating	24V
Voltage Rating (DC)	24V
Width	5.44mm
Working Voltage	24V

Compliance

RoHS : Unconfirmed

REACH SVHC : Yes

Images

Littelfuse 2920L200/24DR | Farnell

Farnell

Datasheets

Future Electronics

Lifecycle Status Indicator

Production

Symbol

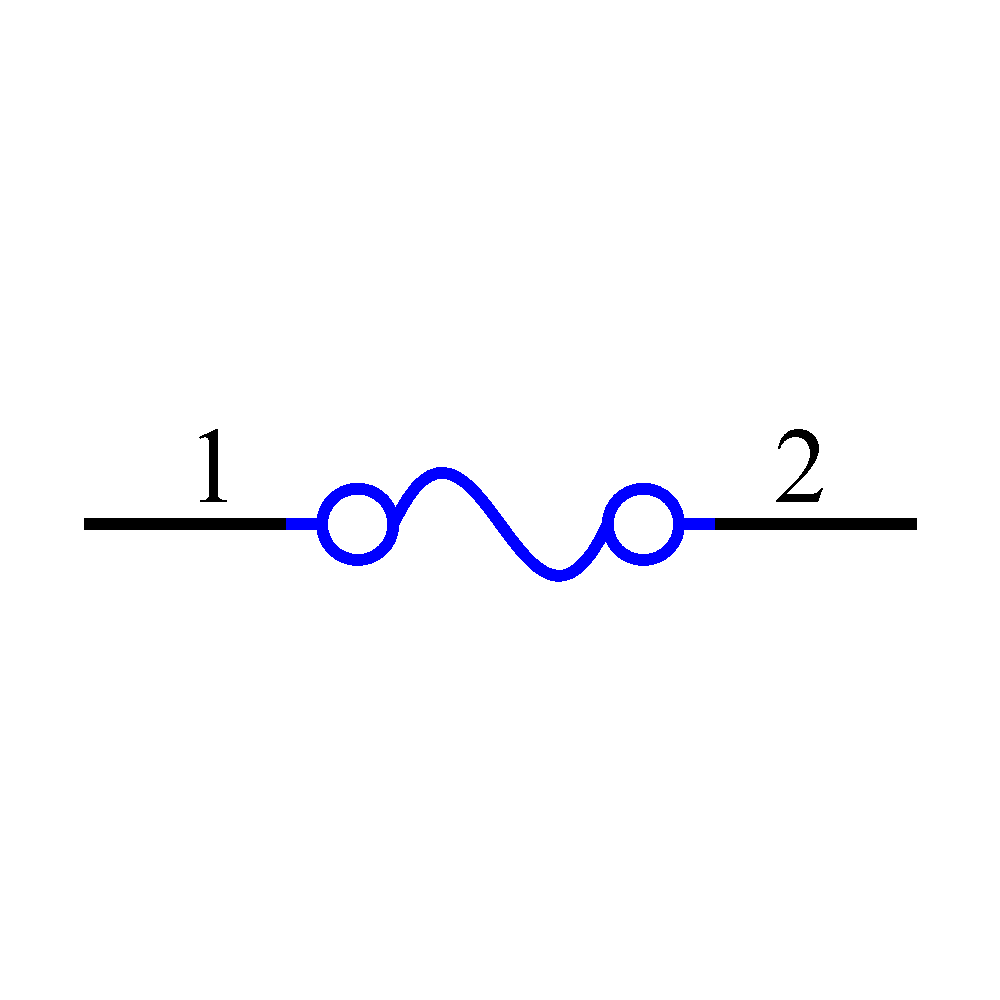

2920L200/24DR Symbol - Littelfuse

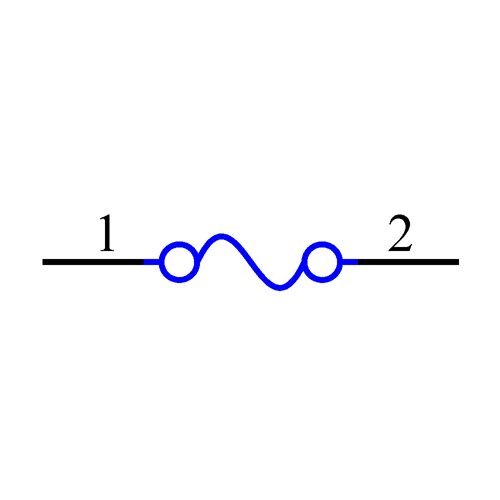

2920L200/24DR Symbol - Littelfuse

2920L200/24DR Symbol - Littelfuse

2920L200/24DR Symbol - Littelfuse

‹ ›

Footprint

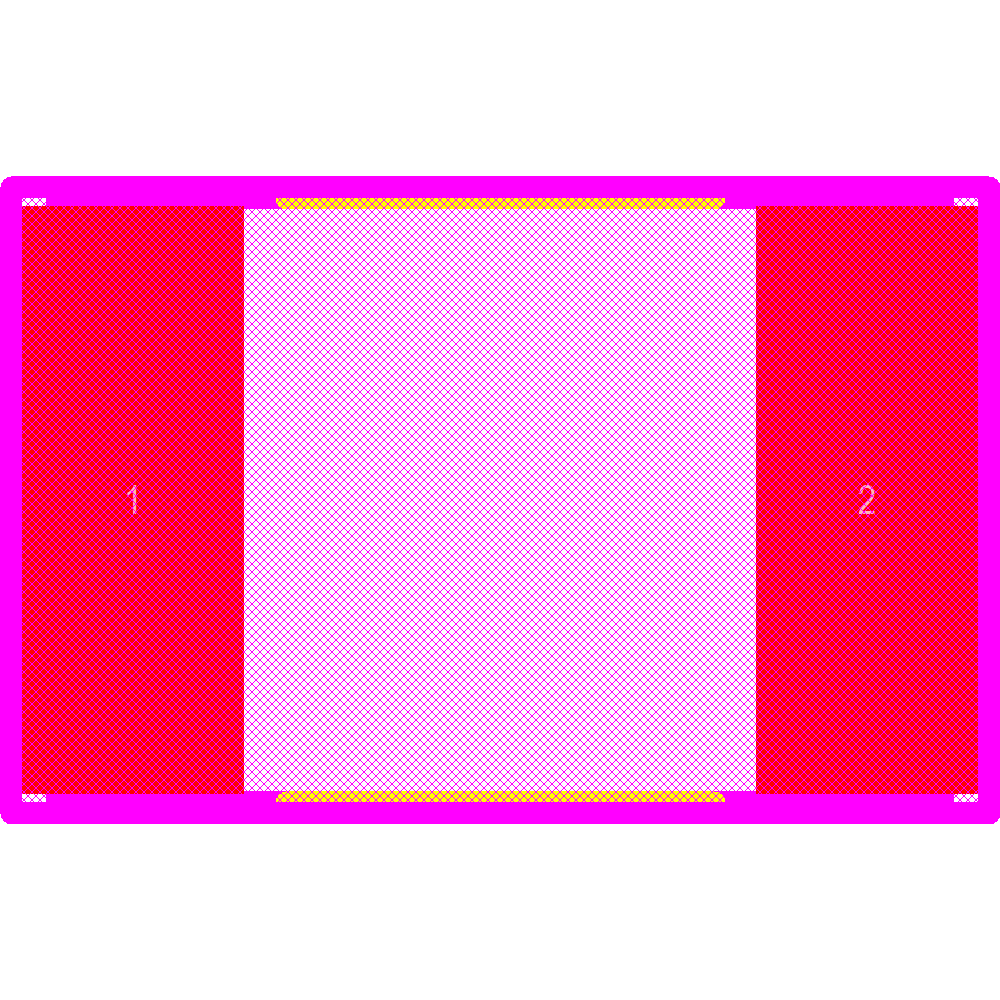

2920L200/24DR Footprint - Littelfuse

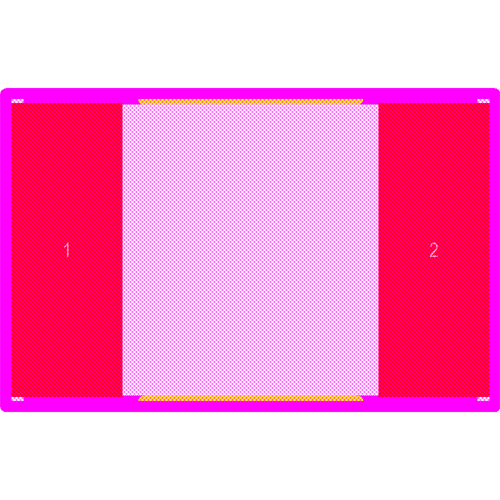

2920L200/24DR Footprint - Littelfuse
