30KPA75CA - Littelfuse
TVS DIODE Trans Voltage Suppressor Diode, 30000W, 75V V(RWM), Bidirectional, 1 Element, Silicon
Technical Details
| Breakdown Voltage | 83.8V |
| Case/Package | P |
| Clamping Voltage | 119.4V |
| Composition | Zener |
| Country of Origin | Mainland China |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2004-03-01 |
| Lead Free | Lead Free |
| Leakage Current | 2µA |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 92.18V |
| Max Operating Temperature | 175°C |
| Max Power Dissipation | 8W |
| Max Reverse Leakage Current | 2µA |
| Max Surge Current | 253.8A |
| Min Breakdown Voltage | 83.8V |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Bidirectional Channels | 1 |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Operating Supply Voltage | 75V |
| Packaging | Tape & Reel (TR) |
| Peak Pulse Current | 253.8A |
| Peak Pulse Power | 30kW |
| Polarity | Bidirectional |
| Power Line Protection | No |
| REACH SVHC | No |
| Reverse Breakdown Voltage | 83.8V |
| Reverse Standoff Voltage | 75V |
| Reverse Voltage | 75V |
| RoHS | Compliant |
| Termination | Axial |
| Test Current | 5mA |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

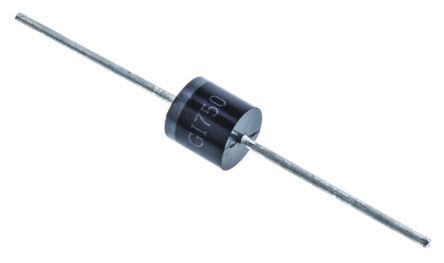

Images
