30R250UU - Littelfuse
PTC Resettable Fuse 2.5A(hold) 5A(trip) 30VDC 40A 1.2W 10.3s 0.02Ohm Radial 11.4 X 3 X 18.3mm Bulk
Technical Details
| Approvals | TUV, cULus |
| Case/Package | Radial |
| China RoHS | Compliant |
| Current Rating | 2.5A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 18.3mm |
| Hold Current | 2.5A |
| Harmonized Tariff Schedule (HTS) Code | 8533.40.80.70 |
| Introduction Date | 2006-06-05 |
| Lead Free | Lead Free |
| Lead Pitch | 5.1mm |
| Length | 11.4mm |
| Lifecycle Status | Production |
| Max Current Rating | 40A |
| Max Operating Temperature | 85°C |
| Maximum Resistance 1 Hour (R1max) | 70mΩ |
| Max Voltage Rating (DC) | 30V |
| Min Operating Temperature | -40°C |
| Minimum Resistance Initial (Rmin) | 20mΩ |
| Mount | Through Hole |
| Number of Terminals | 2 |
| Operating Supply Voltage | 30V |
| Packaging | Bulk |
| Power Dissipation | 1.2W |
| REACH SVHC | Yes |
| Resistance | 20mΩ |
| RoHS | Compliant |
| Termination | Radial |
| Thickness | 3.05mm |
| Time to Trip | 10.3s |
| Trip Current | 5A |
| Voltage Rating (DC) | 30V |
| Width | 3mm |
| Working Voltage | 30V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

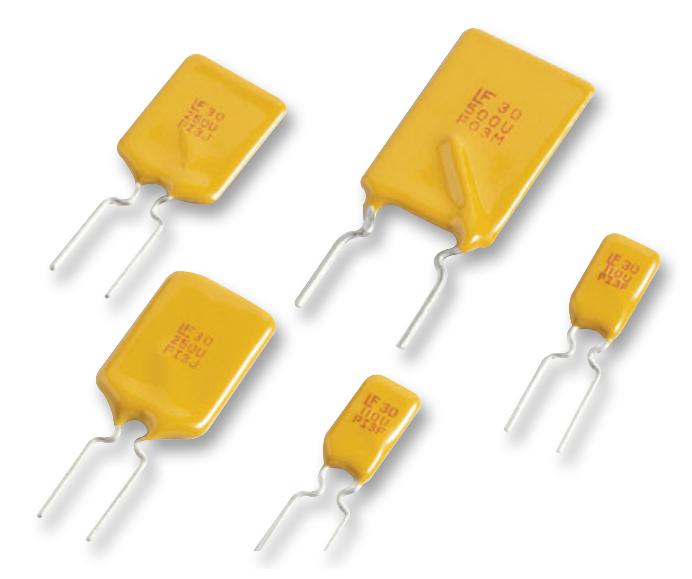

Images
