60R040XPR - Littelfuse
PTC Resettable Fuse 0.4A(hold) 0.8A(trip) 60VDC 40A 0.56W 3.8s 0.55Ohm Radial 7.6 X 3.1mm Ammo
Technical Details
| Approvals | TUV, cULus |
| Case/Package | Radial |
| China RoHS | Compliant |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 13.5mm |
| Hold Current | 400mA |
| Harmonized Tariff Schedule (HTS) Code | 8533.40.80.70 |
| Introduction Date | 2006-06-05 |
| Lead Free | Lead Free |
| Lead Pitch | 5.1mm |
| Length | 7.6mm |
| Lifecycle Status | Production |
| Max Current Rating | 40A |
| Max Operating Temperature | 85°C |
| Maximum Resistance 1 Hour (R1max) | 1.29Ω |
| Max Voltage Rating (DC) | 60V |
| Min Operating Temperature | -40°C |
| Minimum Resistance Initial (Rmin) | 550mΩ |
| Mount | Through Hole |
| Number of Terminals | 2 |
| Power Dissipation | 560mW |
| REACH SVHC | Yes |
| Resistance | 550mΩ |
| RoHS | Compliant |
| Termination | Radial |
| Thickness | 3.05mm |
| Time to Trip | 3.8s |
| Trip Current | 800mA |
| Width | 3.1mm |
| Working Voltage | 60V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

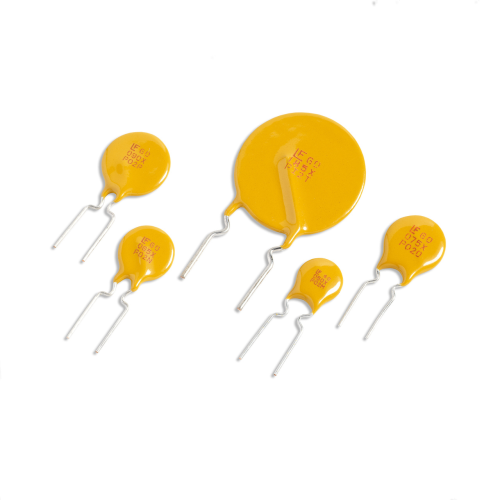

Images
Future Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Littelfuse | Production | ||
| Littelfuse | Production | ||
| Littelfuse | Obsolete | ||
| TE Connectivity / Raychem | Unknown | ||
| Schurter | Production | ||
| TE Connectivity | Obsolete | ||
| Littelfuse | Production | ||
| Littelfuse | Production | ||
| TE Connectivity / Raychem | Obsolete | ||
| Littelfuse | Obsolete |
