Circuit Protection > PTC Resettable Fuses

MICROSMD005F-2 - Littelfuse

PTC Resettable Fuse 0.05A(hold) 0.15A(trip) 30VDC 10A 1W 1.5s 3.6Ohm SMD Solder Pad 1210 T/R

Technical Details

Ambient Temperature Range High	85°C
Case/Package	1210
Current Rating	10A
Height	850µm
Hold Current	50mA
Length	3.43mm
Lifecycle Status	Production
Max Current Rating	10A
Max Operating Temperature	85°C
Maximum Resistance 1 Hour (R1max)	50Ω
Min Operating Temperature	-40°C
Minimum Resistance Initial (Rmin)	3.6Ω
Mount	Surface Mount
Number of Terminals	2
Operating Supply Voltage	30V
Packaging	Tape & Reel
Power Dissipation	1W
REACH SVHC	Yes
Resistance	3.6Ω
RoHS	Compliant
Time to Trip	1.5s
Trip Current	150mA
Voltage Rating	30V
Width	2.8mm
Working Voltage	30V

Compliance

RoHS : Unconfirmed

REACH SVHC : Yes

Images

Littelfuse MICROSMD005F-2 | Farnell

Farnell

Datasheets

Lifecycle Status Indicator

Production

Symbol

MICROSMD005F-2 Symbol - Littelfuse

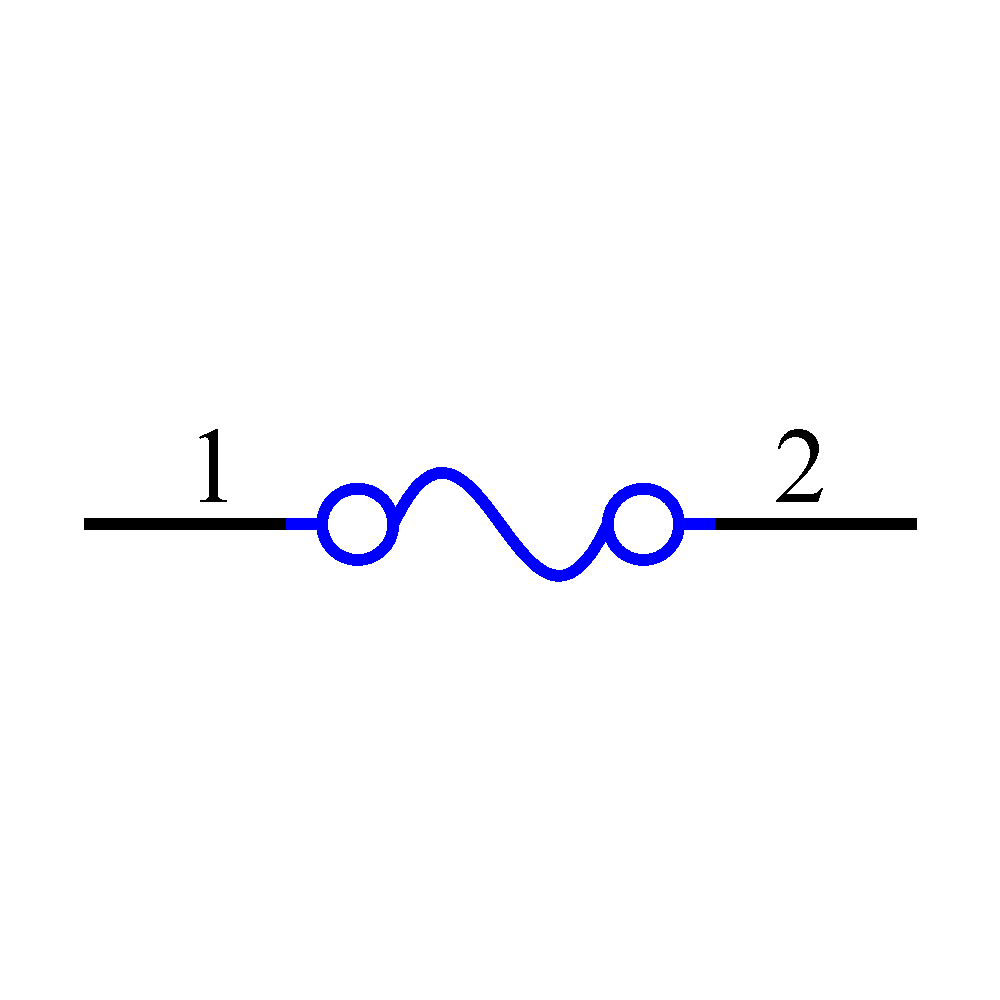

MICROSMD005F-2 Symbol - Littelfuse

MICROSMD005F-2 Symbol - Littelfuse

MICROSMD005F-2 Symbol - Littelfuse

‹ ›

Footprint

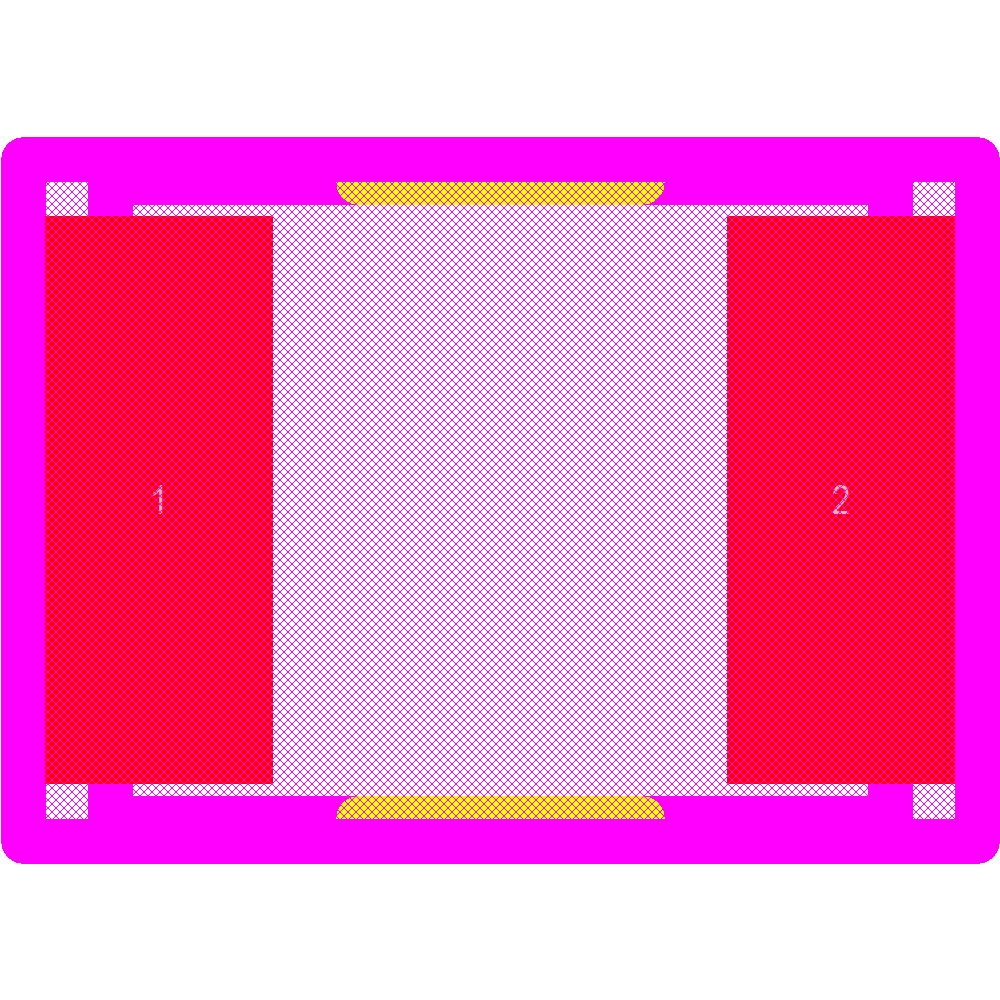

MICROSMD005F-2 Footprint - Littelfuse

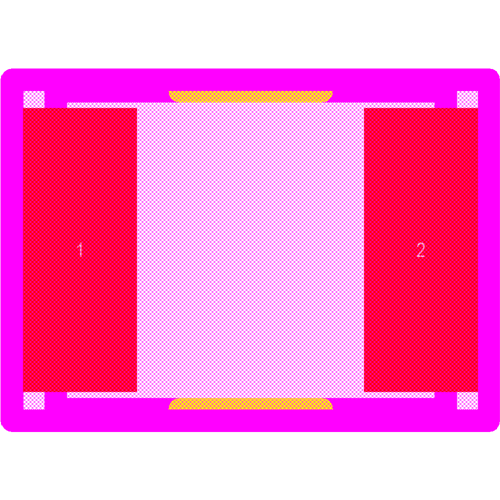

MICROSMD005F-2 Footprint - Littelfuse
