Circuit Protection > PTC Resettable Fuses

NANOSMDC010F-2 - Littelfuse

Polymeric PTC Resettable Fuse 60V 100mA Ih Surface Mount 1206 (3216 Metric), Con

Technical Details

Ambient Temperature Range High	85°C
Case/Package	1206
Current Rating	10A
Height	1mm
Hold Current	100mA
Length	3.4mm
Lifecycle Status	Production
Max Current Rating	10A
Max Operating Temperature	85°C
Maximum Resistance 1 Hour (R1max)	15Ω
Manufacturer Package Identifier	nanoSMDC
Min Operating Temperature	-40°C
Minimum Resistance Initial (Rmin)	1.6Ω
Mount	Surface Mount
Number of Terminals	2
Packaging	Tape & Reel
Power Dissipation	800mW
REACH SVHC	Yes
Resistance	1.6Ω
RoHS	Compliant
Time to Trip	1s
Trip Current	250mA
Voltage Rating	60V
Width	1.8mm
Working Voltage	60V

Compliance

RoHS : Unconfirmed

REACH SVHC : Yes

Images

Littelfuse NANOSMDC010F-2 | Future Electronics

Future Electronics

Datasheets

Future Electronics

Lifecycle Status Indicator

Production

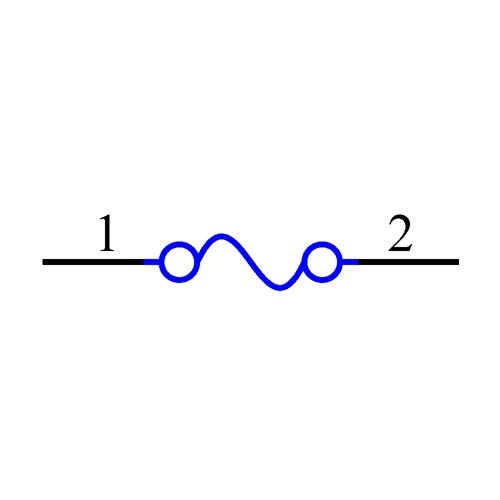

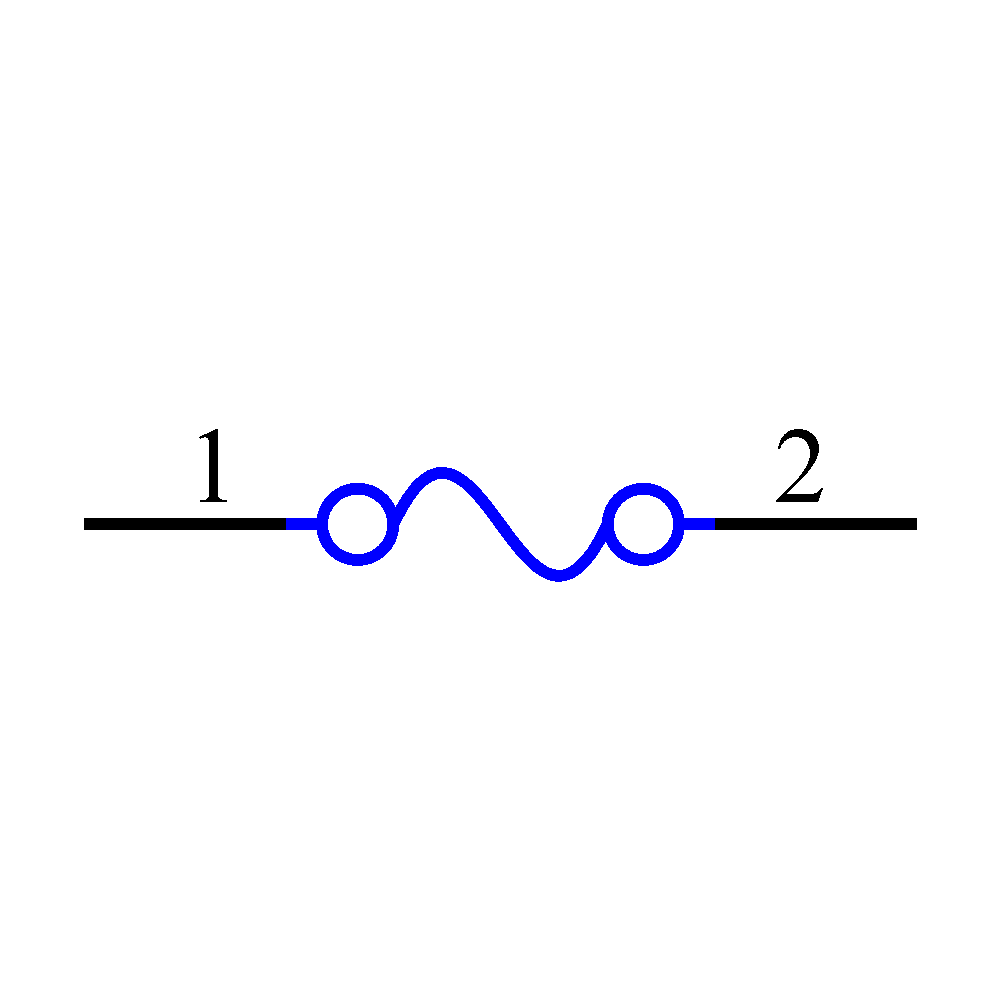

Symbol

NANOSMDC010F-2 Symbol - Littelfuse

NANOSMDC010F-2 Symbol - Littelfuse

NANOSMDC010F-2 Symbol - Littelfuse

NANOSMDC010F-2 Symbol - Littelfuse

‹ ›

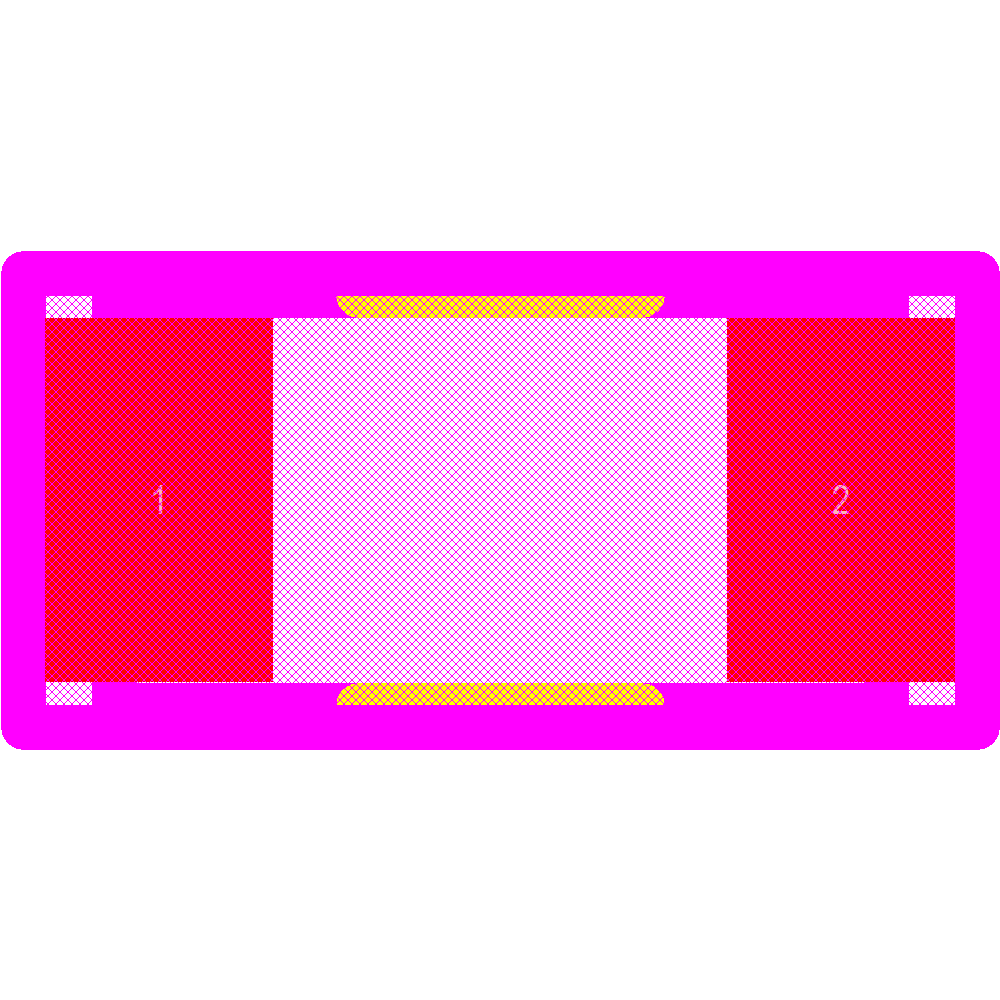

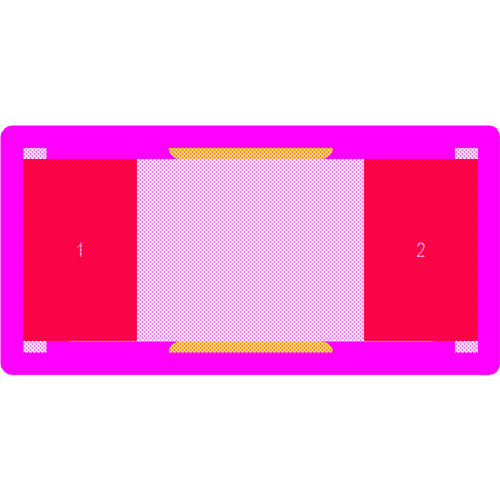

Footprint

NANOSMDC010F-2 Footprint - Littelfuse

NANOSMDC010F-2 Footprint - Littelfuse

NANOSMDC010F-2 Footprint - Littelfuse

NANOSMDC010F-2 Footprint - Littelfuse

‹ ›
