Circuit Protection > PTC Resettable Fuses

NANOSMDC016F-2 - Littelfuse

PTC Resettable Fuse 0.16A(hold) 0.45A(trip) 8VDC 10A 0.5W 0.3s 1.1Ohm SMD Solder Pad 1206 T/R Automotive

Technical Details

Ambient Temperature Range High	85°C
Case/Package	1206
Current Rating	10A
Export Control Classification Number (ECCN) Code	EAR99
Height	1mm
Hold Current	160mA
Harmonized Tariff Schedule (HTS) Code	8533.40.80.70
Introduction Date	2011-02-14
Length	3.4mm
Lifecycle Status	Production
Max Current Rating	10A
Max Operating Temperature	85°C
Maximum Resistance 1 Hour (R1max)	5Ω
Manufacturer Package Identifier	nanoSMDC
Min Operating Temperature	-40°C
Minimum Resistance Initial (Rmin)	1.1Ω
Mount	Surface Mount
Number of Terminals	2
Operating Supply Voltage	30V
Packaging	Tape & Reel
Power Dissipation	500mW
REACH SVHC	Yes
Resistance	1.1Ω
RoHS	Compliant
Time to Trip	300ms
Trip Current	450mA
Voltage Rating	48V
Width	1.8mm
Working Voltage	48V

Compliance

RoHS : Unconfirmed

REACH SVHC : Yes

Images

Littelfuse NANOSMDC016F-2 | Future Electronics

Future Electronics

Datasheets

Lifecycle Status Indicator

Production

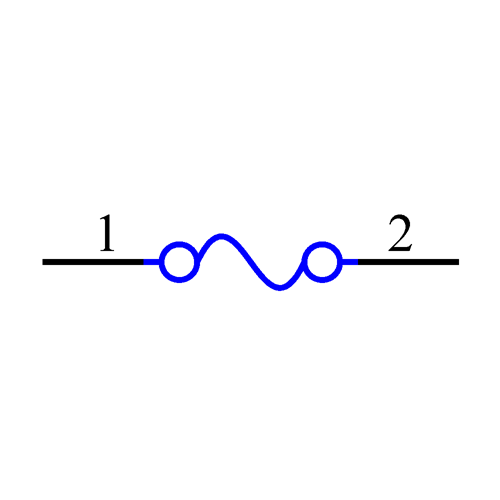

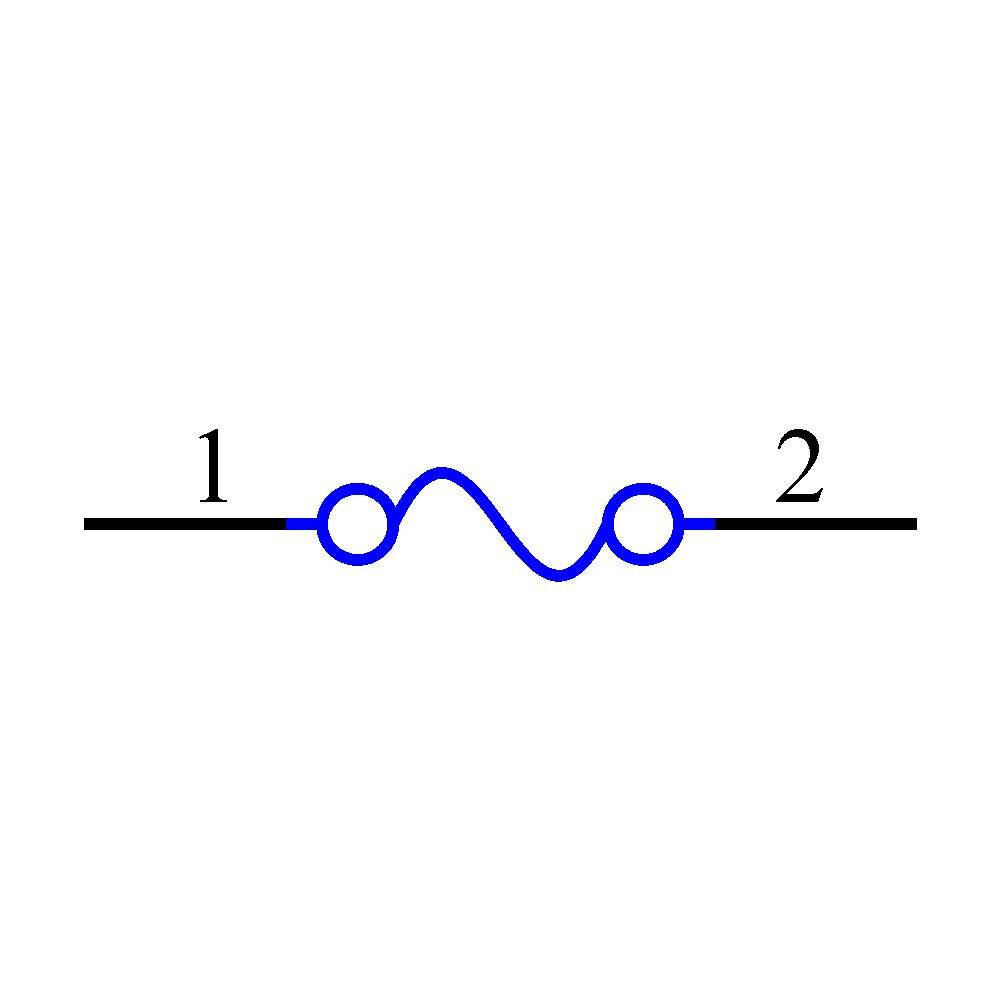

Symbol

NANOSMDC016F-2 Symbol - Littelfuse

NANOSMDC016F-2 Symbol - Littelfuse

NANOSMDC016F-2 Symbol - Littelfuse

NANOSMDC016F-2 Symbol - Littelfuse

‹ ›

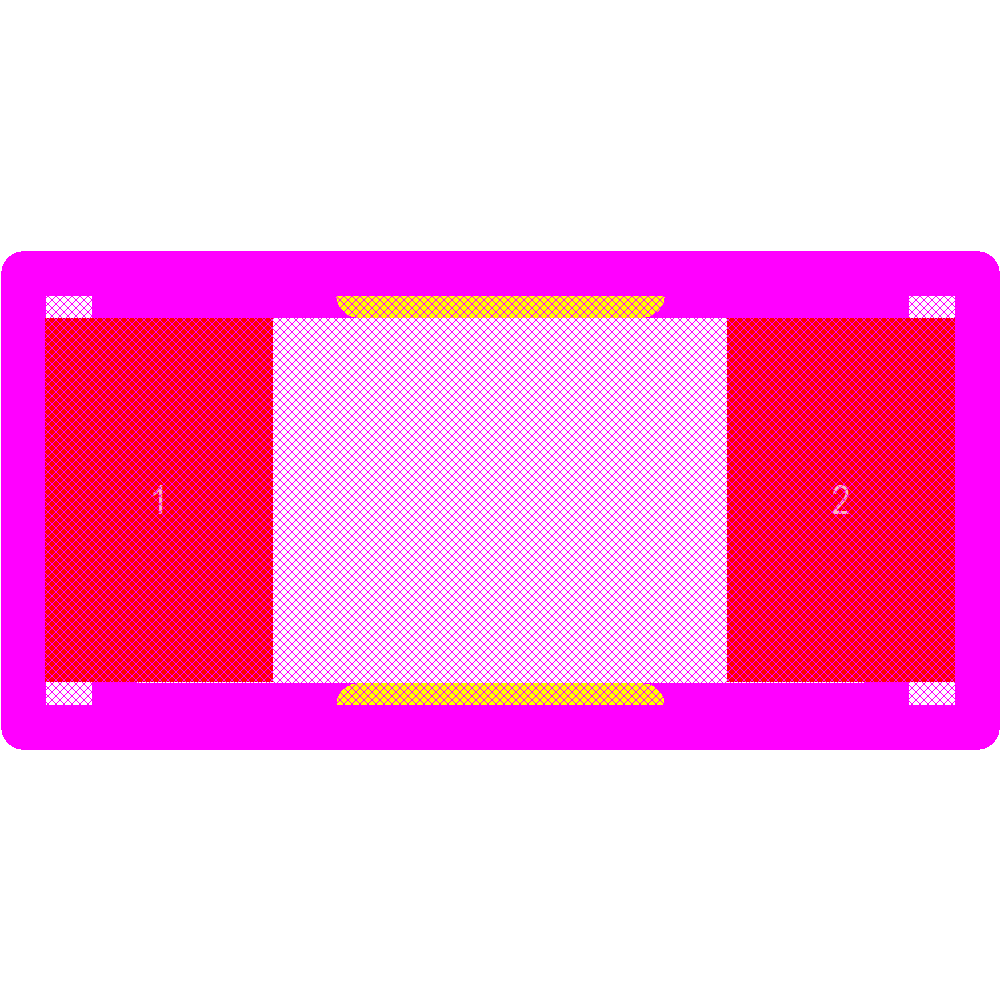

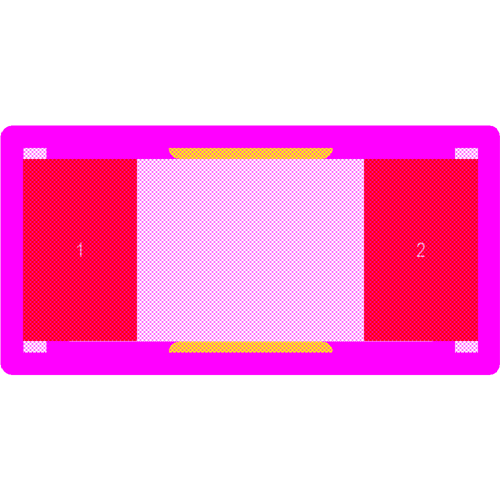

Footprint
