Circuit Protection > PTC Resettable Fuses

NANOSMDC110F-2 - Littelfuse

PTC Resettable Fuse 1.1A(hold) 2.2A(trip) 6VDC 100A 0.8W 0.1s 0.07Ohm SMD Solder Pad 1206 T/R Automotive

Technical Details

Ambient Temperature Range High	85°C
Case/Package	1206
Current Rating	100A
Export Control Classification Number (ECCN) Code	EAR99
Height	670µm
Hold Current	1.1A
Harmonized Tariff Schedule (HTS) Code	8533.40.80.70
Introduction Date	2012-02-28
Length	3.4mm
Lifecycle Status	Production
Max Current Rating	100A
Max Operating Temperature	85°C
Maximum Resistance 1 Hour (R1max)	200mΩ
Min Operating Temperature	-40°C
Minimum Resistance Initial (Rmin)	70mΩ
Mount	Surface Mount
Number of Terminals	2
Operating Supply Voltage	6V
Packaging	Tape & Reel
Power Dissipation	800mW
REACH SVHC	Yes
Resistance	70mΩ
RoHS	Compliant
Time to Trip	100ms
Trip Current	2.2A
Voltage Rating	6V
Width	1.8mm
Working Voltage	6V

Compliance

RoHS : Unconfirmed

REACH SVHC : Yes

Images

Littelfuse NANOSMDC110F-2 | Future Electronics

Future Electronics

Datasheets

Lifecycle Status Indicator

Production

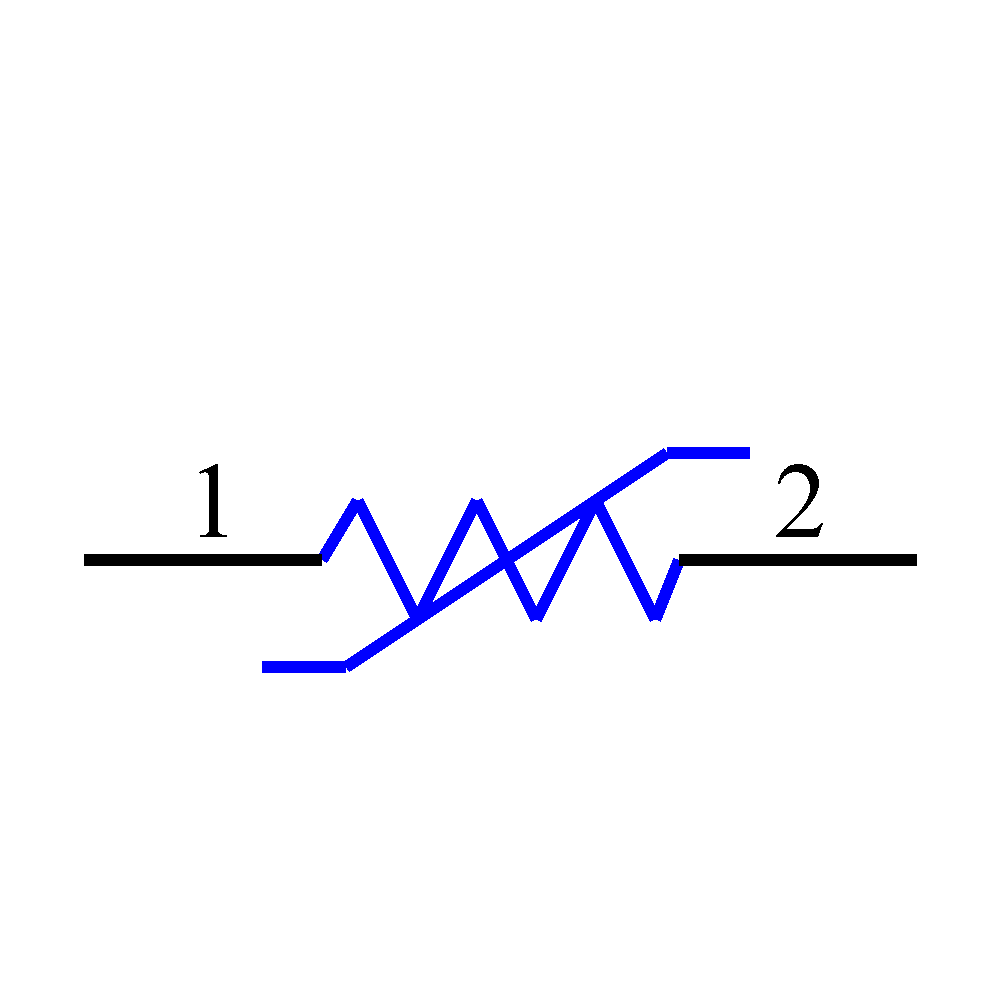

Symbol

NANOSMDC110F-2 Symbol - Littelfuse

NANOSMDC110F-2 Symbol - Littelfuse

NANOSMDC110F-2 Symbol - Littelfuse

NANOSMDC110F-2 Symbol - Littelfuse

‹ ›

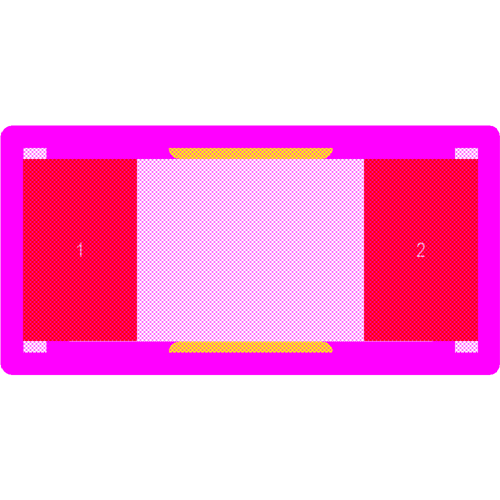

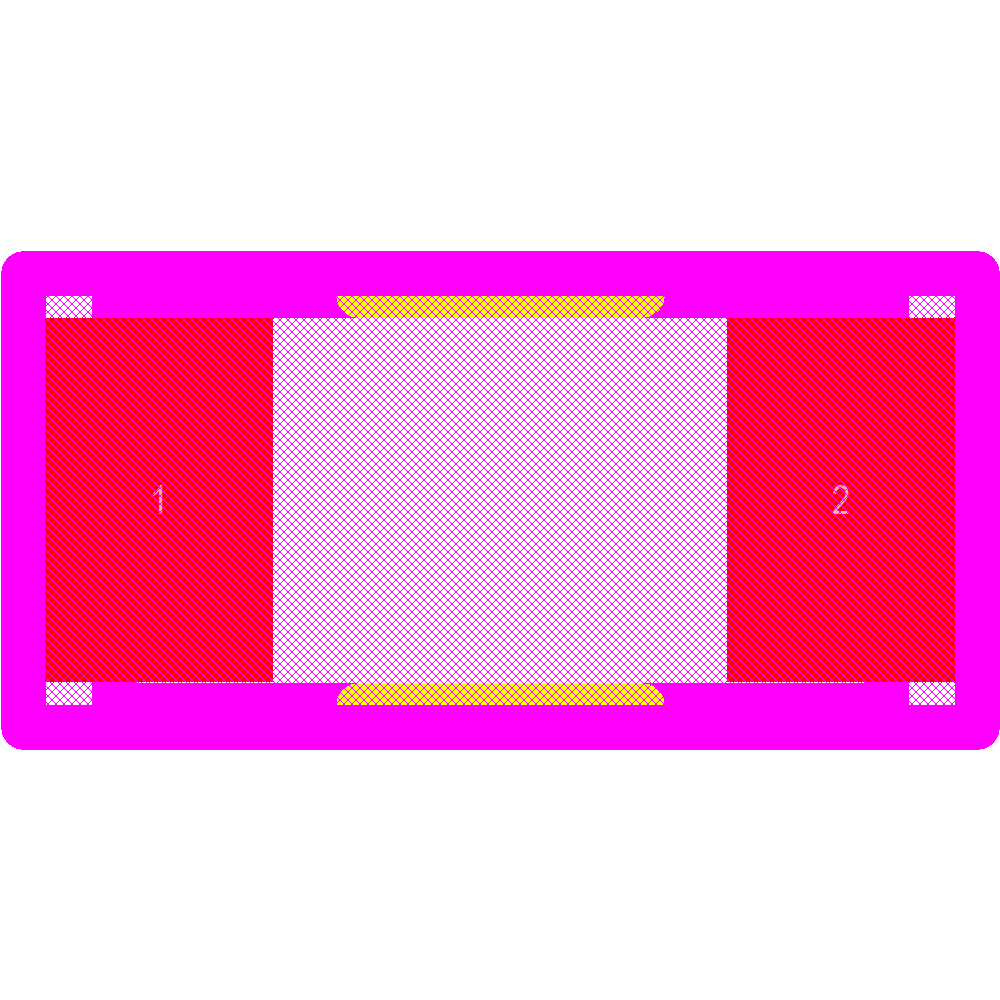

Footprint
