Discrete Semiconductors > Thyristors > DIACs, SIDACs

P0640SCLRP - Littelfuse

P0640S_L Series 150 mA 58 V SIDACtor® Protection Device - DO-214AA (SMB)

Technical Details

Capacitance	155pF
China RoHS	Non-Compliant
Current Rating	2.2A
Export Control Classification Number (ECCN) Code	EAR99
Hold Current	150mA
Introduction Date	1998-01-01
Lead Free	Lead Free
Length	4.57mm
Lifecycle Status	Production
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Mount	Surface Mount
Number of Elements	1
Number of Pins	2
Packaging	Tape & Reel (TR)
Peak Pulse Current	100A
Radiation Hardening	No
REACH SVHC	No
RoHS	Compliant
Schedule B	8541300080, 8541300080\|8541300080\|8541300080\|8541300080\|8541300080
Switching Voltage	77V
Voltage Rating (DC)	58V
Weight	95.991485mg
Width	3.94mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

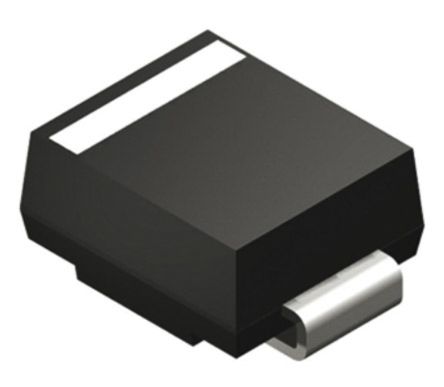

Images

Littelfuse P0640SCLRP | RS

RS

Datasheets

Lifecycle Status Indicator

Production

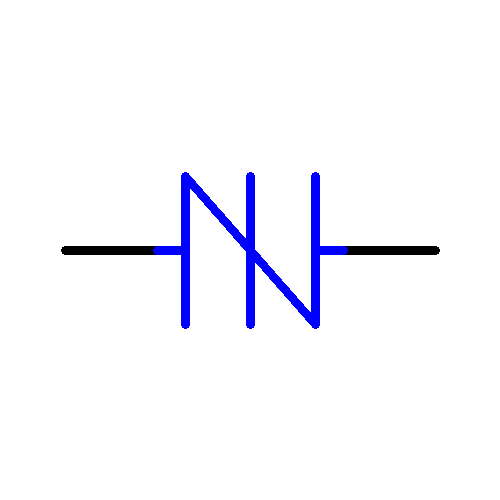

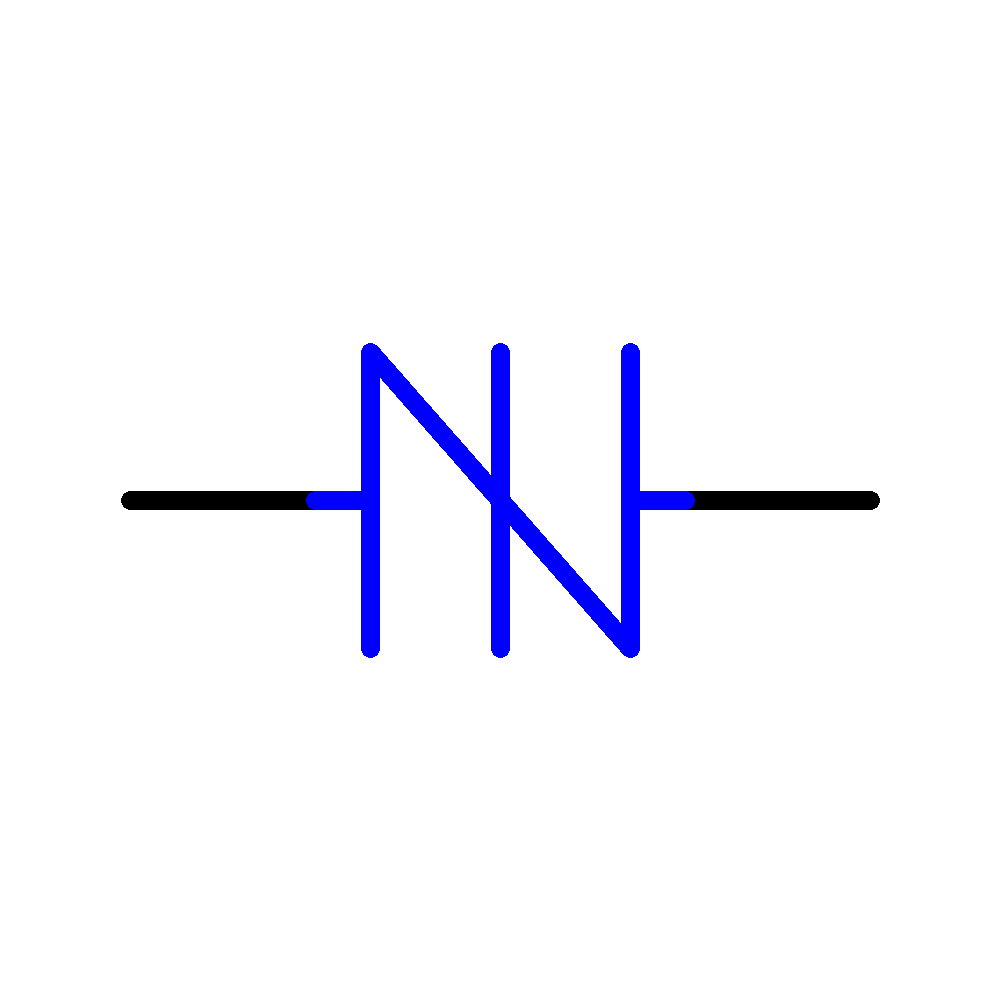

Symbol

P0640SCLRP Symbol - Littelfuse

P0640SCLRP Symbol - Littelfuse

P0640SCLRP Symbol - Littelfuse

P0640SCLRP Symbol - Littelfuse

‹ ›

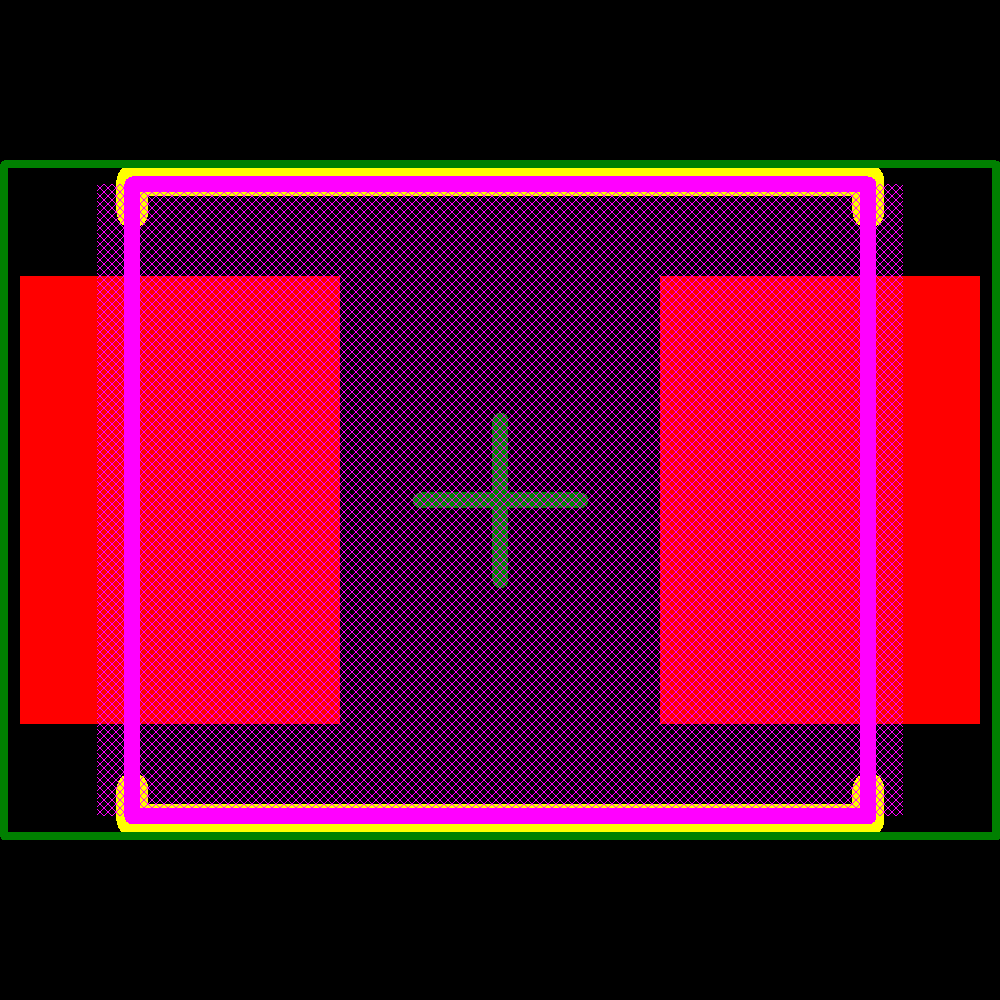

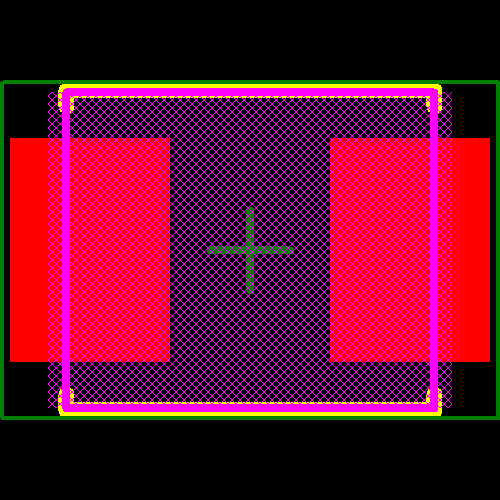

Footprint

P0640SCLRP Footprint - Littelfuse

P0640SCLRP Footprint - Littelfuse

P0640SCLRP Footprint - Littelfuse

P0640SCLRP Footprint - Littelfuse

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
Diodes Inc.	TB0640H-13-F	Production
Littelfuse	P0640SC	Obsolete
Littelfuse	P0640SCL	Production
Littelfuse	P0640SCRP	Obsolete
Protek Devices	PP0640SC	Production
Diodes Inc.	TB0640H-13	Obsolete
Littelfuse	SGT0640SCT	Obsolete
onsemi	NP0640SCT3G	Obsolete
Littelfuse	CR0640SC	Obsolete
Littelfuse	P2500SALRP	Production

See more alternatives See less alternatives
