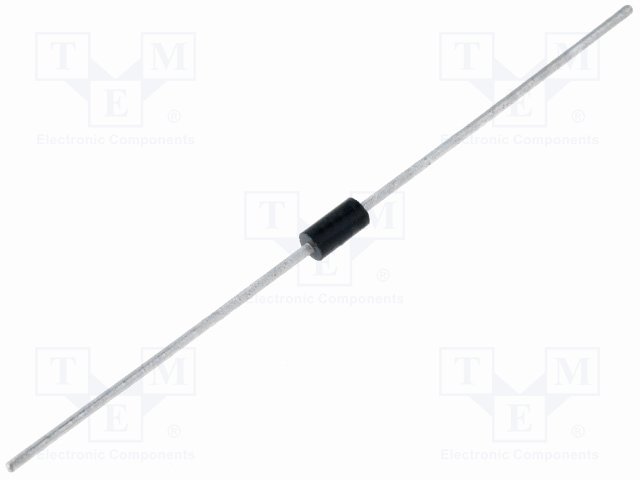

P4KE51CA-B - Littelfuse
Trans Voltage Suppressor Diode, 400W, 43.6V V(RWM), Bidirectional, 1 Element, Silicon, DO-204AL
Technical Details
| Breakdown Voltage | 51V |
| China RoHS | Non-Compliant |
| Clamping Voltage | 70.1V |
| Composition | Zener |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2005-01-26 |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 53.6V |
| Max Operating Temperature | 175°C |
| Max Power Dissipation | 1.5W |
| Max Reverse Leakage Current | 1µA |
| Max Surge Current | 5.8A |
| Min Breakdown Voltage | 48.5V |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Bidirectional Channels | 1 |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| Operating Supply Voltage | 43.6V |
| Packaging | Bulk |
| Peak Pulse Current | 5.8A |
| Peak Pulse Power | 400W |
| Polarity | Bidirectional |
| Power Line Protection | No |
| REACH SVHC | No |
| Reverse Standoff Voltage | 43.6V |
| Reverse Voltage | 43.6V |
| RoHS | Compliant |
| Termination | Axial |
| Test Current | 1mA |
Compliance
RoHS : Unconfirmed
REACH SVHC : No
Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Taiwan Semiconductor | Production | ||
| Taiwan Semiconductor | Obsolete | ||
| Taiwan Semiconductor | Production | ||
| Taiwan Semiconductor | Obsolete | ||
| Taiwan Semiconductor | Obsolete | ||
| Taiwan Semiconductor | Obsolete | ||
| Taiwan Semiconductor | Obsolete | ||
| Littelfuse | Obsolete | ||
| Vishay | Unknown | ||
| Vishay | Obsolete |
