P4SMA150 - Littelfuse
P4SMA Series - 400W Surface Mount Transient Voltage (TVS) Diode, 128V, DO-214AC, RoHS
Technical Details
| Breakdown Voltage | 150V |
| China RoHS | Non-Compliant |
| Clamping Voltage | 217.4V |
| Composition | Zener |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 2.29mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2005-05-11 |
| Lead Free | Lead Free |
| Length | 5.28mm |
| Lifecycle Status | Obsolete |
| Max Breakdown Voltage | 158V |
| Max Operating Temperature | 150°C |
| Max Reverse Leakage Current | 1µA |
| Max Surge Current | 2A |
| Min Breakdown Voltage | 143V |
| Min Operating Temperature | -65°C |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 128V |
| Peak Pulse Current | 2A |
| Peak Pulse Power | 400W |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Power Rating | 400W |
| REACH SVHC | No |
| Reverse Standoff Voltage | 128V |
| Reverse Voltage | 128V |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Test Current | 1mA |
| Voltage Rating (DC) | 150V |
| Width | 2.79mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

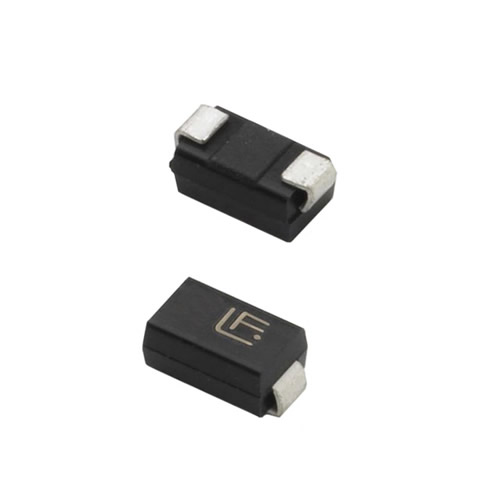

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| STMicroelectronics | Obsolete | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| NTE Electronics | Obsolete | ||
| onsemi | Obsolete | ||
| Rectron | Production | ||
| Littelfuse | Obsolete | ||
| Littelfuse | Obsolete |
