P4SMA43CA - Littelfuse
P4SMA Series - 400W Surface Mount Transient Voltage (TVS) Diode, 36.8V, DO-214AC, RoHS
Technical Details
| Breakdown Voltage | 43V |
| Case/Package | SMA |
| China RoHS | Non-Compliant |
| Clamping Voltage | 59.3V |
| Composition | Zener |
| Height | 2.29mm |
| Lead Free | Lead Free |
| Leakage Current | 5µA |
| Length | 5.28mm |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 45.2V |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 3.3W |
| Max Reverse Leakage Current | 1µA |
| Max Surge Current | 6.9A |
| Min Breakdown Voltage | 40.9V |
| Min Operating Temperature | -65°C |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 1 |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Operating Supply Voltage | 36.8V |
| Peak Pulse Current | 6.9A |
| Peak Pulse Power | 400W |
| Peak Reverse Current | 1µA |
| Polarity | Bidirectional |
| Power Line Protection | No |
| Power Rating | 400W |
| REACH SVHC | No |
| Reverse Breakdown Voltage | 40.9V |
| Reverse Standoff Voltage | 36.8V |
| Reverse Voltage | 36.8V |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Test Current | 1mA |
| Voltage Rating (DC) | 43V |
| Width | 2.79mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

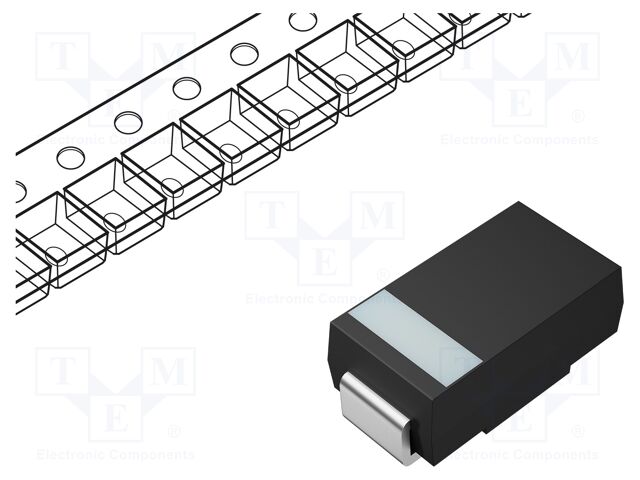

Images
