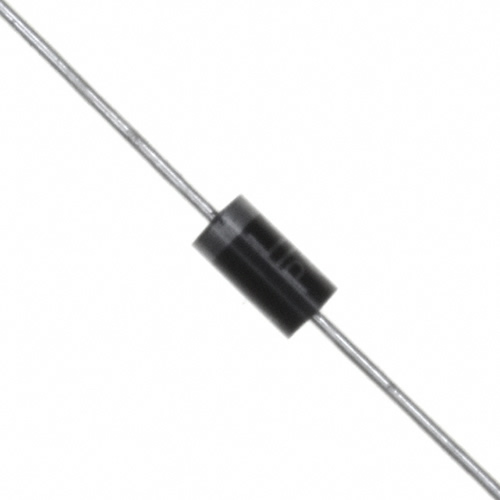

P6KE13 - Littelfuse

P6KE Series - 600W Axial Leaded Transient Voltage Suppression (TVS) Diode, DO-204AC, RoHS

Breakdown Voltage	13V
Case/Package	DO-15
China RoHS	Non-Compliant
Clamping Voltage	19V
Composition	Zener
Diameter	3.6mm
Export Control Classification Number (ECCN) Code	EAR99
Harmonized Tariff Schedule (HTS) Code	8541.10.00.50
Introduction Date	2000-12-16
Lead Free	Lead Free
Leakage Current	5µA
Length	7.6mm
Lifecycle Status	Obsolete
Max Breakdown Voltage	13.7V
Max Operating Temperature	175°C
Max Power Dissipation	5W
Max Reverse Leakage Current	1µA
Max Surge Current	32A
Min Breakdown Voltage	12.4V
Min Operating Temperature	-55°C
Mount	Through Hole
Number of Channels	1
Number of Elements	1
Number of Pins	2
Number of Terminals	2
Number of Unidirectional Channels	1
Operating Supply Voltage	10.5V
Packaging	Bulk
Peak Pulse Current	32A
Peak Pulse Power	600W
Polarity	Unidirectional
Power Line Protection	No
Power Rating	600W
REACH SVHC	No
Reverse Breakdown Voltage	11.7V
Reverse Standoff Voltage	11.1V
Reverse Voltage	10.5V
RoHS	Compliant
Termination	Axial
Test Current	1mA
Voltage Rating (DC)	13V

RoHS : Unconfirmed

REACH SVHC : No

Obsolete

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator
Diodes Inc.	P6KE13A-B	Production
Taiwan Semiconductor	P6KE13A A0G	Unknown
onsemi	P6KE13ARL	Obsolete
Taiwan Semiconductor	P6KE13A R0G	Production
Vishay	P6KE13A-E3/54	Production
Taiwan Semiconductor	P6KE13	Production
Taiwan Semiconductor	P6KE13A	Production
Taiwan Semiconductor	P6KE13AR0	Obsolete
Vishay	P6KE13AHE3/54	Production
Diodes Inc.	P6KE13A-T	Obsolete
