P6KE6.8 - Littelfuse
P6KE Series - 600W Axial Leaded Transient Voltage Suppression (TVS) Diode, DO-204AC, RoHS
Technical Details
| Breakdown Voltage | 6.8V |
| Case/Package | DO-15 |
| China RoHS | Non-Compliant |
| Clamping Voltage | 10.8V |
| Composition | Zener |
| Diameter | 3.6mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 1996-01-01 |
| Lead Free | Lead Free |
| Leakage Current | 1mA |
| Length | 7.6mm |
| Lifecycle Status | Obsolete |
| Max Breakdown Voltage | 7.14V |
| Max Operating Temperature | 175°C |
| Max Power Dissipation | 5W |
| Max Reverse Leakage Current | 1mA |
| Max Surge Current | 6.1A |
| Min Breakdown Voltage | 6.45V |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 5.8V |
| Peak Pulse Current | 56A |
| Peak Pulse Power | 600W |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Power Rating | 600W |
| REACH SVHC | No |
| Reverse Breakdown Voltage | 6.45V |
| Reverse Standoff Voltage | 5.8V |
| Reverse Voltage | 5.5V |
| RoHS | Compliant |
| Schedule B | 8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080 |
| Termination | Axial |
| Test Current | 10mA |
| Weight | 400.011771mg |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

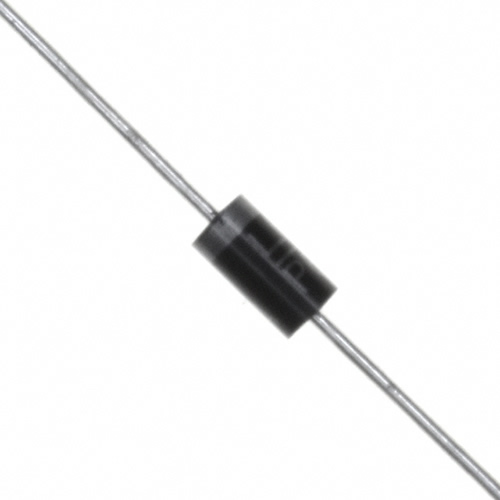

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| onsemi | Obsolete | ||
| Fagor | Unknown | ||
| STMicroelectronics | Obsolete | ||
| Diotec | Production | ||
| Vishay | Production | ||
| Littelfuse | Obsolete | ||
| Diodes Inc. | Obsolete | ||
| STMicroelectronics | Obsolete | ||
| Taiwan Semiconductor | Production | ||
| Taiwan Semiconductor | Production |
