P6KE6.8A - Littelfuse
P6KE Series 10.5 V 0.6 kW Through Hole Uni-Directional TVS Diode - DO-204AC
Technical Details
| Breakdown Voltage | 6.8V |
| Case/Package | Axial |
| China RoHS | Non-Compliant |
| Clamping Voltage | 10.5V |
| Composition | Zener |
| Current | 518A |
| Diameter | 3.6mm |
| Direction | Unidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| ESD Protection | Yes |
| Height | 3.6mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 1996-01-01 |
| Lead Free | Lead Free |
| Leakage Current | 1mA |
| Length | 7.5946mm |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 7.14V |
| Max Junction Temperature (Tj) | 175°C |
| Max Operating Temperature | 175°C |
| Max Power Dissipation | 5W |
| Max Reverse Leakage Current | 1mA |
| Max Surge Current | 57A |
| Min Breakdown Voltage | 6.45V |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 5.8V |
| Packaging | Cut Tape |
| Peak Pulse Current | 58.1A |
| Peak Pulse Power | 600W |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Power Rating | 600W |
| REACH SVHC | No |
| Reverse Breakdown Voltage | 6.45V |
| Reverse Standoff Voltage | 5.8V |
| Reverse Voltage | 5.8V |
| RoHS | Compliant |
| Termination | Axial |
| Test Current | 10mA |
| Voltage Rating (DC) | 6.8V |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

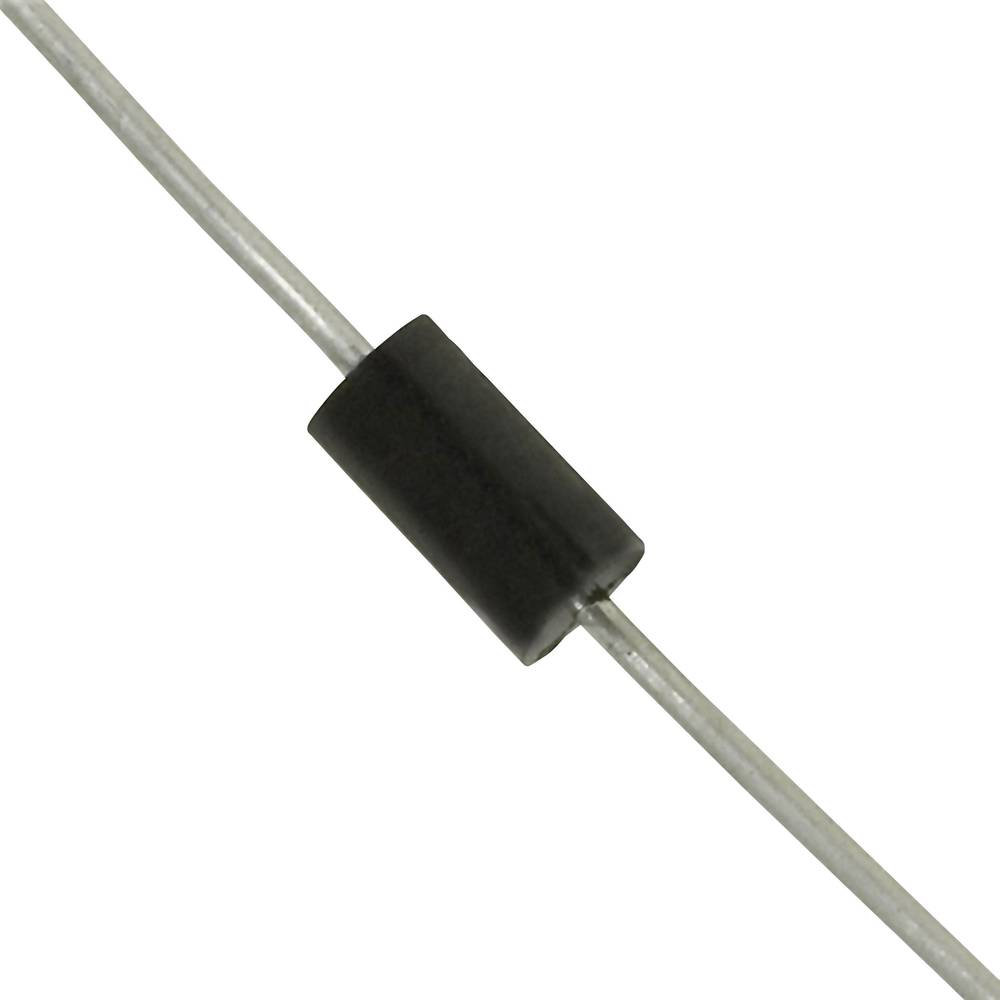

Images

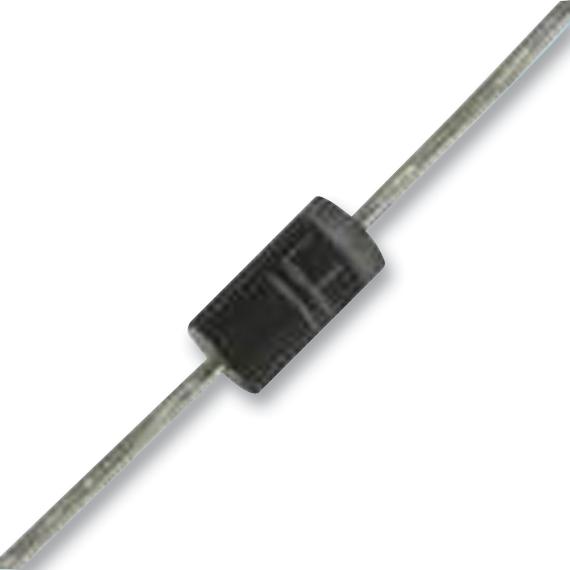

CPC
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| onsemi | Obsolete | ||
| Fagor | Unknown | ||
| STMicroelectronics | Obsolete | ||
| Diotec | Production | ||
| Vishay | Production | ||
| Littelfuse | Obsolete | ||
| Diodes Inc. | Obsolete | ||
| STMicroelectronics | Obsolete | ||
| Taiwan Semiconductor | Production | ||
| Taiwan Semiconductor | Production |
