P6SMB33A - Littelfuse
P6SMB Series - 600W Transient Voltage Suppression (TVS) Diode in DO-214AA Package, 28.2V, RoHS
Technical Details
| Breakdown Voltage | 33.05V |
| Case/Package | SMB |
| China RoHS | Non-Compliant |
| Clamping Voltage | 45.7V |
| Composition | Zener |
| Direction | Unidirectional |
| Element Configuration | Single |
| Height | 2.237mm |
| Lead Free | Lead Free |
| Leakage Current | 1µA |
| Length | 4.57mm |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 34.7V |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 5W |
| Max Reverse Leakage Current | 1µA |
| Max Surge Current | 13.2A |
| Min Breakdown Voltage | 31.4V |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 28.2V |
| Packaging | Cut Tape |
| Peak Pulse Current | 13.3A |
| Peak Pulse Power | 600W |
| Polarity | Unidirectional |
| Power Line Protection | No |
| REACH SVHC | No |
| Reverse Breakdown Voltage | 31.4V |
| Reverse Standoff Voltage | 28.2V |
| Reverse Voltage | 28.2V |
| RoHS | Compliant |
| Schedule B | 8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080 |
| Termination | SMD/SMT |
| Test Current | 1mA |
| Width | 3.94mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

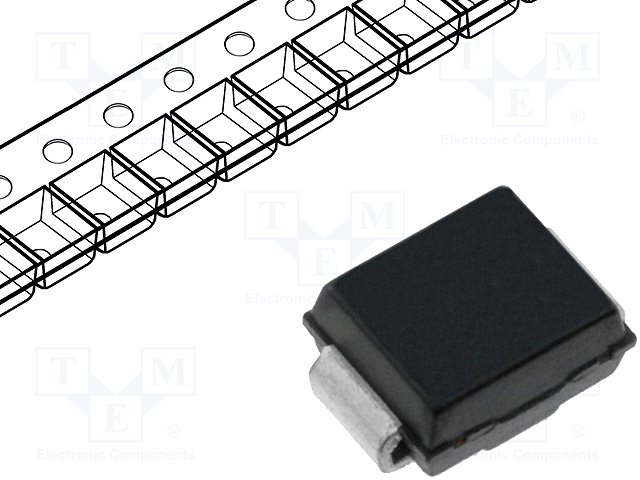

Images
