P6SMB43C - Littelfuse
P6SMB Series - 600W Transient Voltage Suppression (TVS) Diode in DO-214AA Package, 31.6V, RoHS
Technical Details
| Breakdown Voltage | 35.1V |
| Clamping Voltage | 62.265V |
| Composition | Zener |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2006-04-03 |
| Lifecycle Status | Obsolete |
| Max Breakdown Voltage | 47.36V |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 5W |
| Max Reverse Leakage Current | 1µA |
| Max Surge Current | 10.5A |
| Min Breakdown Voltage | 38.75V |
| Min Operating Temperature | -65°C |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 1 |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| Operating Supply Voltage | 36.8V |
| Packaging | Tape & Reel (TR) |
| Peak Pulse Current | 11.3A |
| Peak Pulse Power | 600W |
| Polarity | Bidirectional |
| Power Line Protection | No |
| Reverse Standoff Voltage | 36.8V |
| Reverse Voltage | 31.6V |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Test Current | 1mA |
Compliance
RoHS : Unconfirmed

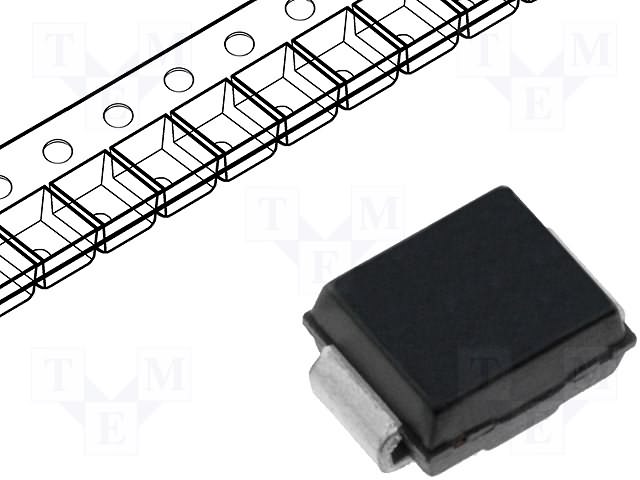

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Panjit | Production | ||
| Vishay | Obsolete | ||
| Panjit | Production | ||
| Littelfuse | Production | ||
| Panjit | Production | ||
| Fagor | Unknown | ||
| Littelfuse | Production | ||
| Panjit | Production | ||
| Central Semiconductor | Unknown | ||
| Vishay | Production |
