Circuit Protection  >  PTC Resettable Fuses

Littelfuse - RUEF160

RUEF160 - Littelfuse

PTC Resettable Fuse 1.6A(hold) 3.2A(trip) 30V 100A 0.9W 8s 0.03Ohm Radial 8.9 X 3 X 15.2mm Bag

 Datasheets

Technical Details

Ambient Temperature Range High 85°C
Case/Package Radial
Current Rating 100A
Export Control Classification Number (ECCN) Code EAR99
Height 15.2mm
Hold Current 1.6A
Harmonized Tariff Schedule (HTS) Code 8533.40.80.70
Introduction Date 2003-06-01
Length 8.9mm
Lifecycle Status Production
Max Current Rating 100A
Max Operating Temperature 85°C
Maximum Resistance 1 Hour (R1max) 110mΩ
Min Operating Temperature -40°C
Minimum Resistance Initial (Rmin) 30mΩ
Number of Terminals 2
Packaging Bulk
Power Dissipation 900mW
REACH SVHC Yes
Resistance 30mΩ
RoHS Compliant
Schedule B 8536100040, 8536100040|8536100040|8536100040|8536100040|8536100040|8536100040|8536100040|8536100040|8536100040, 8536100040|8536100040|8536100040|8536100040|8536100040|8536100040|8536100040|8536100040|8536100040|8536100040, 8536100040|8536100040|8536100040|8536100040|8536100040|8536100040|8536100040|8536100040|8536100040|8536100040|8536100040
Time to Trip 8s
Trip Current 3.2A
Voltage Rating 30V
Voltage Rating (DC) 30V
Width 3mm
Working Voltage 30V

Compliance

   RoHS : Unconfirmed
   REACH SVHC : Yes

Images

Littelfuse RUEF160 | Farnell

Farnell

Datasheets

 Farnell
 Farnell
 Future Electronics

Lifecycle Status Indicator

   Production
Symbol

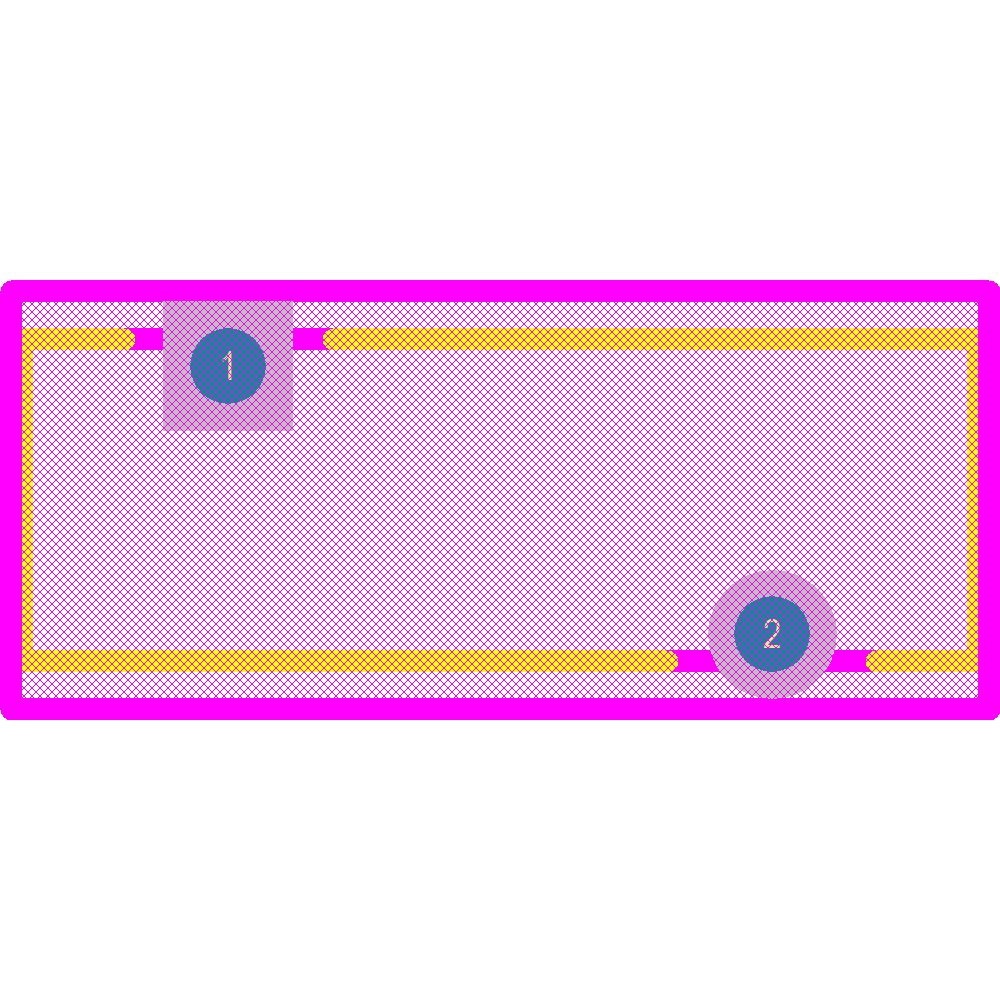

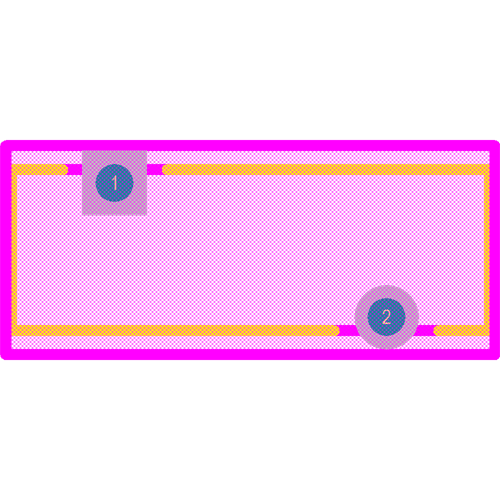

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
TE Connectivity / Raychem
RUE160-1
Obsolete
TE Connectivity / Raychem
RUE160-AP
Obsolete
TE Connectivity / Raychem
RUE160-2
Obsolete
Littelfuse
RUEF160-2
Production
Littelfuse
60R135XMR
Production
Littelfuse
60R135XF
Production
Schurter
PFRA.160.3
Obsolete
Littelfuse
RUEF160S
Production
