Circuit Protection > PTC Resettable Fuses

RXEF030 - Littelfuse

PTC Resettable Fuse 0.3A(hold) 0.6A(trip) 72V 40A 0.49W 3s 0.88Ohm Radial 7.4 X 3mm Bag

Technical Details

Ambient Temperature Range High	85°C
Case/Package	Radial
Current Rating	40A
Export Control Classification Number (ECCN) Code	EAR99
Height	7.4mm
Hold Current	300mA
Harmonized Tariff Schedule (HTS) Code	8533.40.80.70
Introduction Date	2003-06-01
Lead Length	7.6mm
Length	7.4mm
Lifecycle Status	Production
Max Current Rating	40A
Max Operating Temperature	85°C
Maximum Resistance 1 Hour (R1max)	2.1Ω
Min Operating Temperature	-40°C
Minimum Resistance Initial (Rmin)	880mΩ
Number of Terminals	2
Operating Supply Voltage	72V
Packaging	Bulk
Power Dissipation	490mW
REACH SVHC	Yes
Resistance	880mΩ
RoHS	Compliant
Time to Trip	3s
Trip Current	600mA
Voltage Rating	72V
Width	3mm
Working Voltage	72V

Compliance

RoHS : Unconfirmed

REACH SVHC : Yes

Images

Littelfuse RXEF030 | Farnell

Farnell

Datasheets

Future Electronics

Lifecycle Status Indicator

Production

Symbol

RXEF030 Symbol - Littelfuse

RXEF030 Symbol - Littelfuse

RXEF030 Symbol - Littelfuse

RXEF030 Symbol - Littelfuse

‹ ›

Footprint

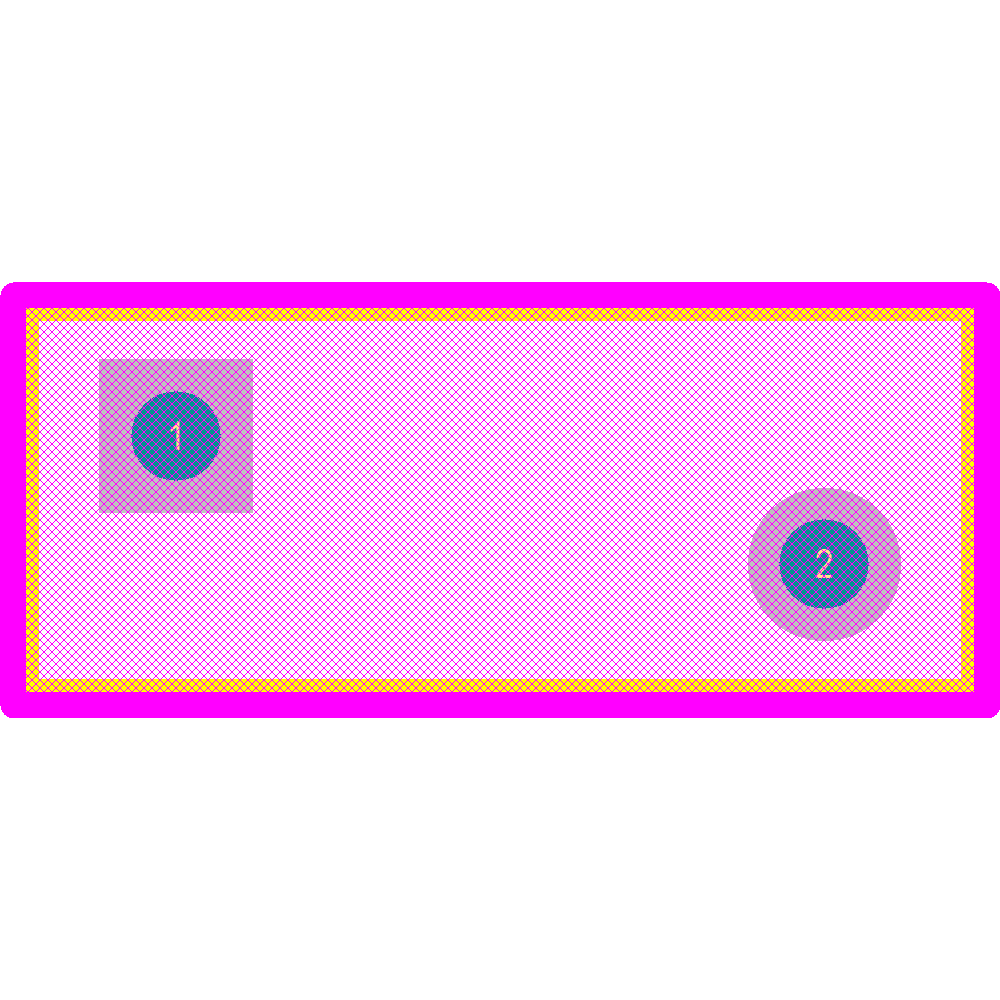

RXEF030 Footprint - Littelfuse

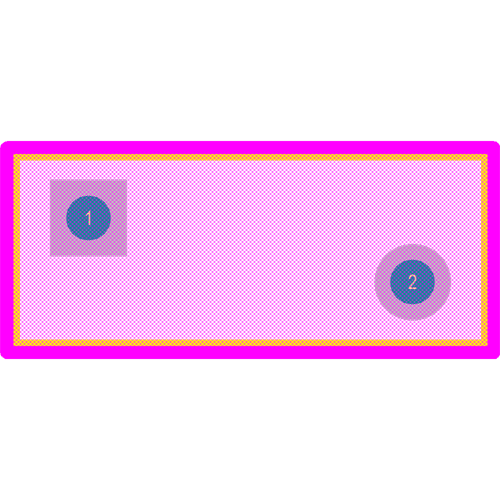

RXEF030 Footprint - Littelfuse
