RXEF110 - Littelfuse

PTC Resettable Fuse 1.1A(hold) 2.2A(trip) 72V 40A 1.5W 8.2s 0.15Ohm Radial 12.8 X 3mm Bag

Technical Details

Ambient Temperature Range High	85°C
Case/Package	Radial
Current Rating	40A
Export Control Classification Number (ECCN) Code	EAR99
Height	12.8mm
Hold Current	1.1A
Harmonized Tariff Schedule (HTS) Code	8533.40.80.70
Introduction Date	2006-04-19
Length	12.8mm
Lifecycle Status	Production
Max Current Rating	40A
Max Operating Temperature	85°C
Maximum Resistance 1 Hour (R1max)	380mΩ
Min Operating Temperature	-40°C
Minimum Resistance Initial (Rmin)	150mΩ
Number of Terminals	2
Operating Supply Voltage	72V
Packaging	Bulk
Power Dissipation	1.5W
REACH SVHC	Yes
Resistance	150mΩ
RoHS	Compliant
Time to Trip	8.2s
Trip Current	2.2A
Voltage Rating	72V
Width	3mm
Working Voltage	72V

Compliance

RoHS : Unconfirmed

REACH SVHC : Yes

Images

Littelfuse RXEF110 | Farnell

Farnell

Datasheets

Future Electronics

Future Electronics

Lifecycle Status Indicator

Production

Symbol

RXEF110 Symbol - Littelfuse

RXEF110 Symbol - Littelfuse

RXEF110 Symbol - Littelfuse

RXEF110 Symbol - Littelfuse

‹ ›

Footprint

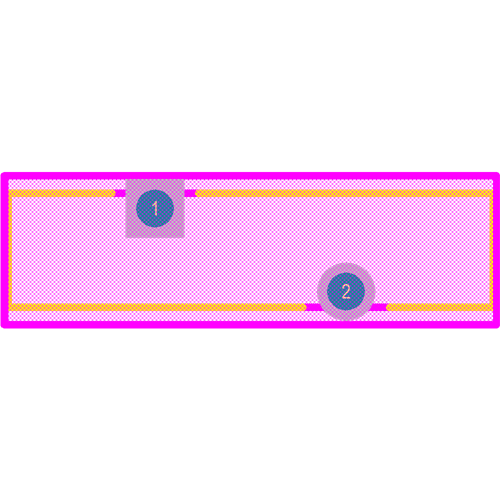

RXEF110 Footprint - Littelfuse
