Circuit Protection > PTC Resettable Fuses

RXEF185 - Littelfuse

PTC Resettable Fuse 1.85A(hold) 3.7A(trip) 72V 40A 2.1W 12.6s 0.08Ohm Radial 17.5 X 3mm Bag

Technical Details

Ambient Temperature Range High	85°C
Case/Package	Radial
Current Rating	40A
Export Control Classification Number (ECCN) Code	EAR99
Height	22.4mm
Hold Current	1.85A
Harmonized Tariff Schedule (HTS) Code	8533.40.80.70
Introduction Date	2006-04-19
Length	17.5mm
Lifecycle Status	Production
Max Current Rating	40A
Max Operating Temperature	85°C
Maximum Resistance 1 Hour (R1max)	190mΩ
Min Operating Temperature	-40°C
Minimum Resistance Initial (Rmin)	80mΩ
Number of Terminals	2
Operating Supply Voltage	72V
Packaging	Bulk
Power Dissipation	2.1W
REACH SVHC	Yes
Resistance	80mΩ
RoHS	Compliant
Time to Trip	12.6s
Trip Current	3.7A
Voltage Rating	72V
Width	3mm
Working Voltage	72V

Compliance

RoHS : Unconfirmed

REACH SVHC : Yes

Images

Littelfuse RXEF185 | Future Electronics

Future Electronics

Datasheets

Future Electronics

Future Electronics

Lifecycle Status Indicator

Production

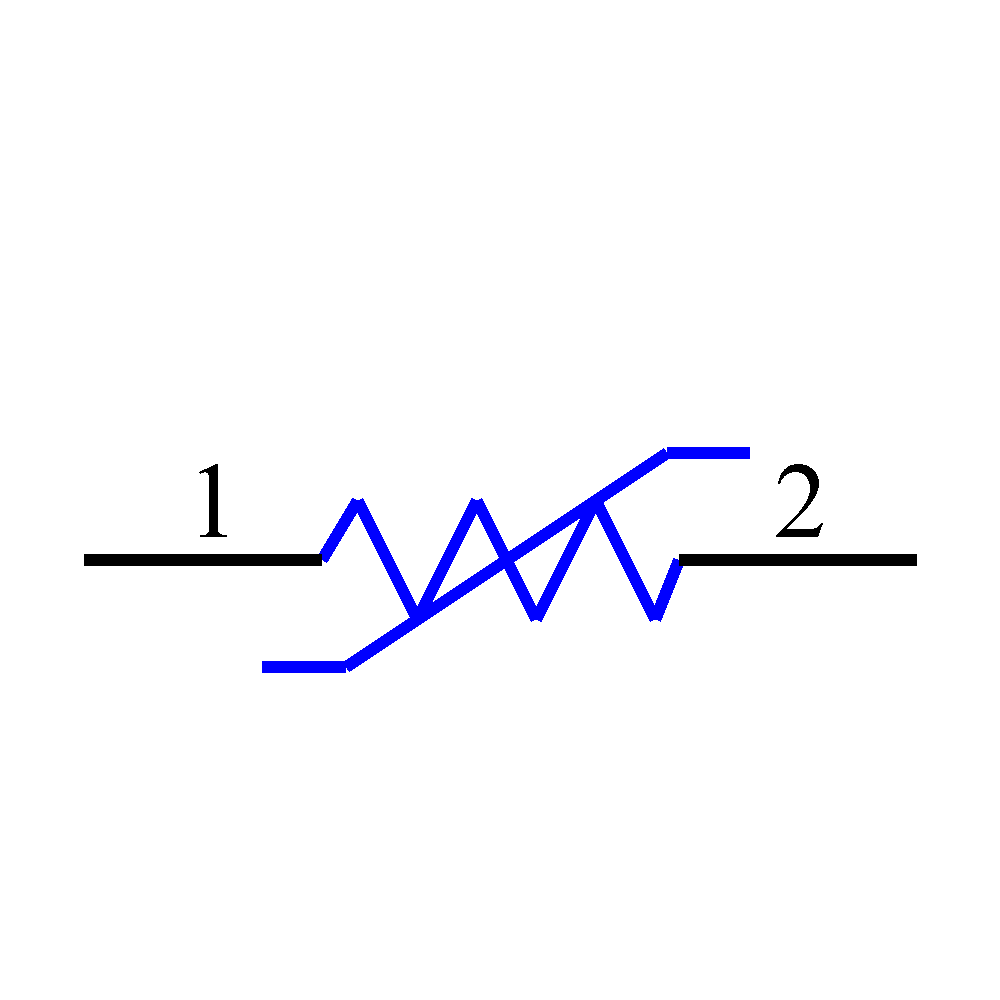

Symbol

RXEF185 Symbol - Littelfuse

RXEF185 Symbol - Littelfuse

RXEF185 Symbol - Littelfuse

RXEF185 Symbol - Littelfuse

‹ ›

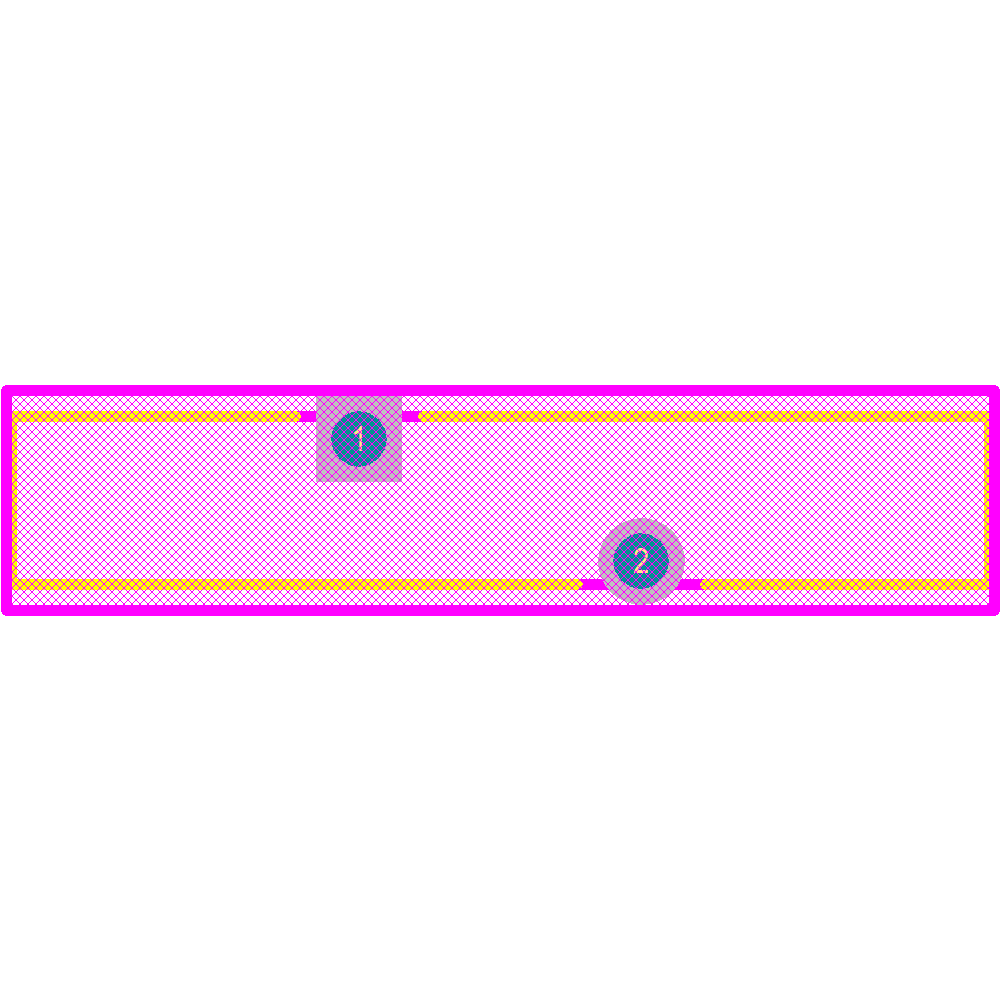

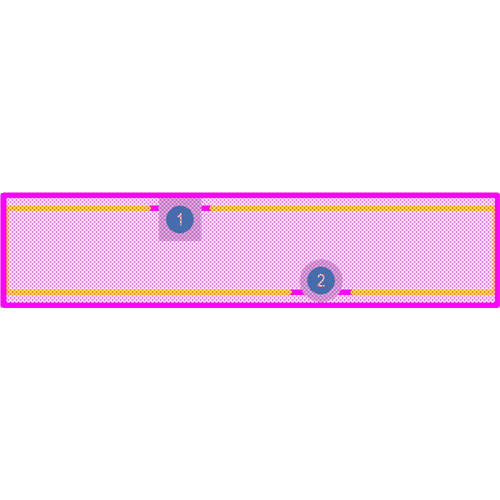

Footprint
