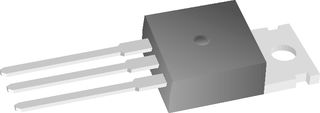

S6040NTP - Littelfuse
Silicon Controlled Rectifier, 40A I(T)RMS, 25mA I(T), 600V V(DRM), 600V V(RRM), 1 Element, TO-263AB
Technical Details
| Case/Package | TO-263-3 |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Forward Voltage | 1.8V |
| Height | 4.78mm |
| Hold Current | 60mA |
| Harmonized Tariff Schedule (HTS) Code | 8541.30.00.80 |
| Introduction Date | 2002-10-08 |
| Lead Free | Lead Free |
| Leakage Current | 2mA |
| Length | 10.67mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 125°C |
| Max Repetitive Reverse Voltage (Vrrm) | 600V |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| RMS Current (Irms) | 40A |
| RoHS | Compliant |
| Voltage Rating (DC) | 600V |
| Weight | 1.59999g |
| Width | 9.4mm |
Compliance
RoHS : Unconfirmed
Images
Newark
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Littelfuse | Production | ||
| Littelfuse | Production | ||
| Littelfuse | Production | ||
| Littelfuse | Production | ||
| Littelfuse | Production | ||
| Littelfuse | Production | ||
| Littelfuse | Production | ||
| Vishay | Obsolete | ||
| STMicroelectronics | Obsolete | ||
| STMicroelectronics | Production |
