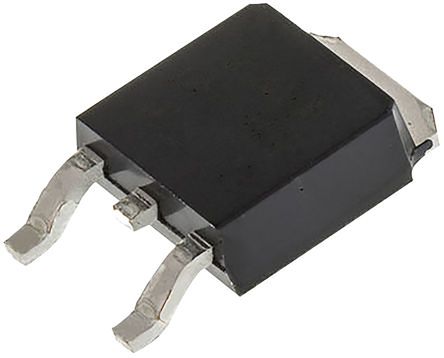

S8012DTP - Littelfuse
Diode, Scr, Standard, Vr 800V, If 12A, Pkg TO-252, Config Thyristor, Vf 1.6V, I2T 60A2S
Technical Details
| Case/Package | TO-252 |
| Current Rating | 7.6A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 2.41mm |
| Hold Current | 40mA |
| Harmonized Tariff Schedule (HTS) Code | 8541.30.00.80 |
| Introduction Date | 2002-10-08 |
| Lead Free | Lead Free |
| Length | 6.73mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 125°C |
| Max Repetitive Reverse Voltage (Vrrm) | 800V |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, Through Hole |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 2 |
| RMS Current (Irms) | 12A |
| RoHS | Compliant |
| Voltage Rating (DC) | 800V |
| Width | 6.22mm |
Compliance
RoHS : Unconfirmed
