SA7.5CA-B - Littelfuse
SA Series - 500W Axial Leaded Transient Voltage Suppression (TVS) Diode, DO-204AC, RoHS
Technical Details
| Breakdown Voltage | 8.77V |
| China RoHS | Non-Compliant |
| Clamping Voltage | 12.9V |
| Composition | Zener |
| Diameter | 3.6mm |
| Direction | Bidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 1997-06-01 |
| Lead Free | Lead Free |
| Length | 7.6mm |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 9.21V |
| Max Operating Temperature | 175°C |
| Max Power Dissipation | 3W |
| Max Reverse Leakage Current | 50µA |
| Max Surge Current | 39.5A |
| Min Breakdown Voltage | 8.33V |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Bidirectional Channels | 1 |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| Operating Supply Voltage | 7.5V |
| Packaging | Bulk |
| Peak Pulse Current | 39.5A |
| Peak Pulse Power | 500W |
| Polarity | Bidirectional |
| Power Dissipation | 500kW |
| Power Line Protection | No |
| Power Rating | 500W |
| REACH SVHC | No |
| Reverse Standoff Voltage | 7.5V |
| Reverse Voltage | 7.5V |
| RoHS | Compliant |
| Termination | Axial |
| Test Current | 1mA |
| Voltage Rating (DC) | 7.5V |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

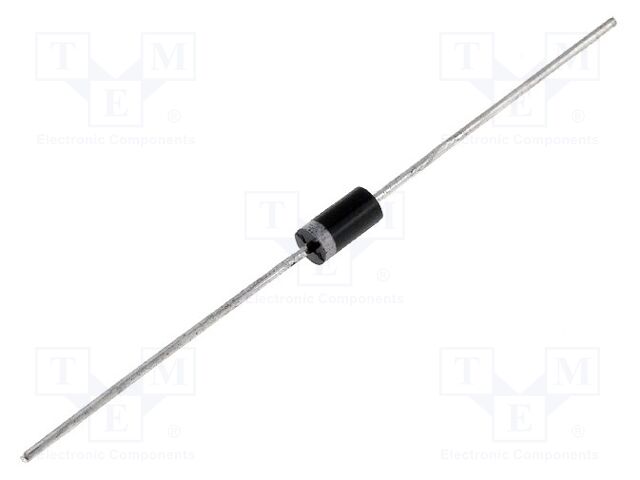

Images
TME
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Diodes Inc. | Obsolete | ||
| Taiwan Semiconductor | Production | ||
| Bourns | Production | ||
| Taiwan Semiconductor | Production | ||
| Vishay | Production | ||
| Vishay | Production | ||
| Taiwan Semiconductor | Production | ||
| STMicroelectronics | Production | ||
| Taiwan Semiconductor | Production | ||
| Taiwan Semiconductor | Production |
