SMAJ13 - Littelfuse
SMAJ Series 21.5 V 0.4 kW Surface Mount Unii-Directional TVS Diode - DO-214AC
Technical Details
| Breakdown Voltage | 15.15V |
| China RoHS | Non-Compliant |
| Clamping Voltage | 21.5V |
| Composition | Zener |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Forward Voltage | 3.5V |
| Height | 2.29mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2003-11-20 |
| Lead Free | Lead Free |
| Leakage Current | 1µA |
| Length | 5.28mm |
| Lifecycle Status | Obsolete |
| Max Breakdown Voltage | 16.665V |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 3.3W |
| Max Reverse Leakage Current | 1µA |
| Max Surge Current | 18.6A |
| Min Breakdown Voltage | 13.635V |
| Min Operating Temperature | -65°C |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 13V |
| Peak Pulse Current | 18.6A |
| Peak Pulse Power | 400W |
| Peak Reverse Current | 1µA |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Power Rating | 400W |
| REACH SVHC | Yes |
| Reverse Breakdown Voltage | 14.4V |
| Reverse Standoff Voltage | 13V |
| Reverse Voltage | 13V |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Test Current | 1mA |
| Voltage Rating (DC) | 13V |
| Width | 2.79mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

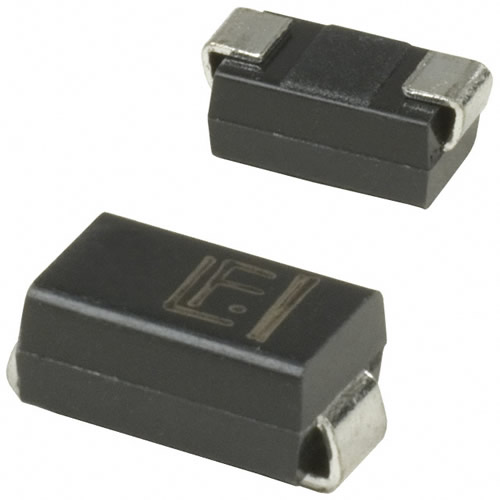

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Taiwan Semiconductor | Production | ||
| EIC Semiconductor | Production | ||
| onsemi | Obsolete | ||
| Vishay | Obsolete | ||
| Vishay | Obsolete | ||
| Vishay | Obsolete | ||
| Vishay | Obsolete | ||
| Vishay | Production | ||
| Lite-On | Obsolete | ||
| Vishay | Production |
