SMAJ28C - Littelfuse
Trans Voltage Suppressor Diode, 400W, 28V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AC
Technical Details
| Breakdown Voltage | 32.75V |
| China RoHS | Non-Compliant |
| Clamping Voltage | 45.4V |
| Composition | Zener |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Forward Voltage | 3.5V |
| Height | 2.29mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2003-11-20 |
| Lead Free | Lead Free |
| Length | 5.28mm |
| Lifecycle Status | Obsolete |
| Max Breakdown Voltage | 34.4V |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 3.3W |
| Max Reverse Leakage Current | 1µA |
| Max Surge Current | 8.8A |
| Min Breakdown Voltage | 31.1V |
| Min Operating Temperature | -65°C |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 1 |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| Operating Supply Voltage | 28V |
| Peak Pulse Current | 8.8A |
| Peak Pulse Power | 400W |
| Peak Reverse Current | 1µA |
| Polarity | Bidirectional |
| Power Line Protection | No |
| Power Rating | 400W |
| Reverse Standoff Voltage | 28V |
| Reverse Voltage | 28V |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Test Current | 1mA |
| Voltage Rating (DC) | 28V |
| Weight | 61.008174mg |
| Width | 2.79mm |
Compliance
RoHS : Unconfirmed

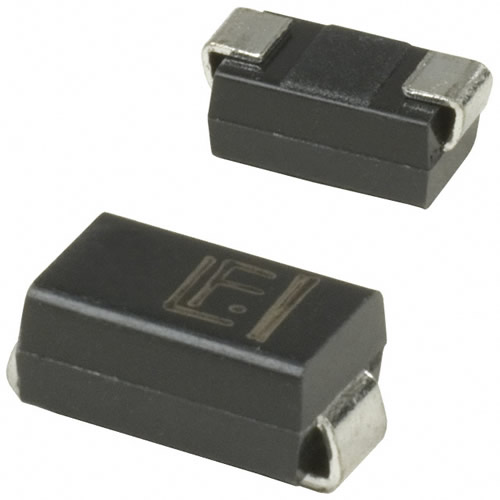

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Diodes Inc. | Obsolete | ||
| Vishay | Obsolete | ||
| EIC Semiconductor | Production | ||
| Taiwan Semiconductor | Production | ||
| Taiwan Semiconductor | Production | ||
| Diodes Inc. | Production | ||
| Sangdest Microelectronics | Production | ||
| Rectron | Production | ||
| STMicroelectronics | Production | ||
| STMicroelectronics | Production |
